NordicTrack NTL17950 - Manual (Page 8)

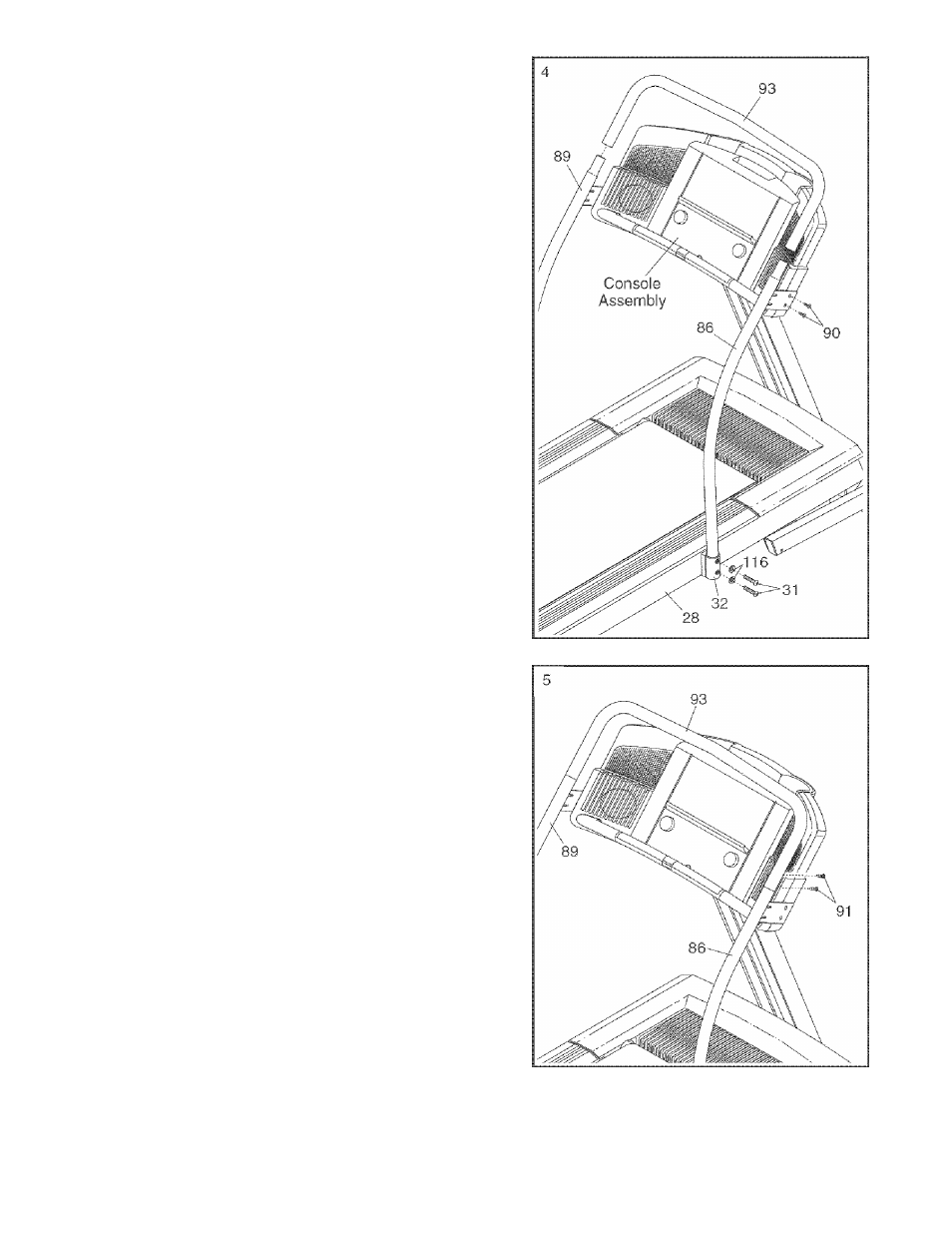

4. Identify the right Handrail (86) and the Left Handrail (89);
the Handrails have indented holes in the outer sides for
the heads of the Handrail Bolts (90).
Hold the Right Handrail (86) on the right side of the tread­
mill. Loosely thread two Handrail Bolts (90) into the
bracket on the Right Handrail and into the console assem­
bly. Do not tighten the Handrail Bolts yet Attach the
Left Handrail to the left side of the treadmill in the same
way. Then, slide the Upper Handrail (93) onto the Right
and Left Handrails.
Next, slide a Handrail Bracket (32) onto the lower end of
the Right Handrail (86). Insert two Frame Bolts (31) with
two Washers (116) into the Right Handrail and the
Handrail Bracket, and finger tighten the Frame Bolts into
the Frame (28). Do not tighten the Frame Bolts yet.
Attach the lower end of the Left Handrail (89) in the same
way.
5. Attach the Upper Handrail (93) to the Left and Right
Handrails (86, 89) with four 3/4” Тек Screws (91) (only two
are shown); start all four Тек Screws before tightening
them.
See step 4. Firmly tighten the four Handrail Bolts (90) and
the four Frame Bolts (31).
