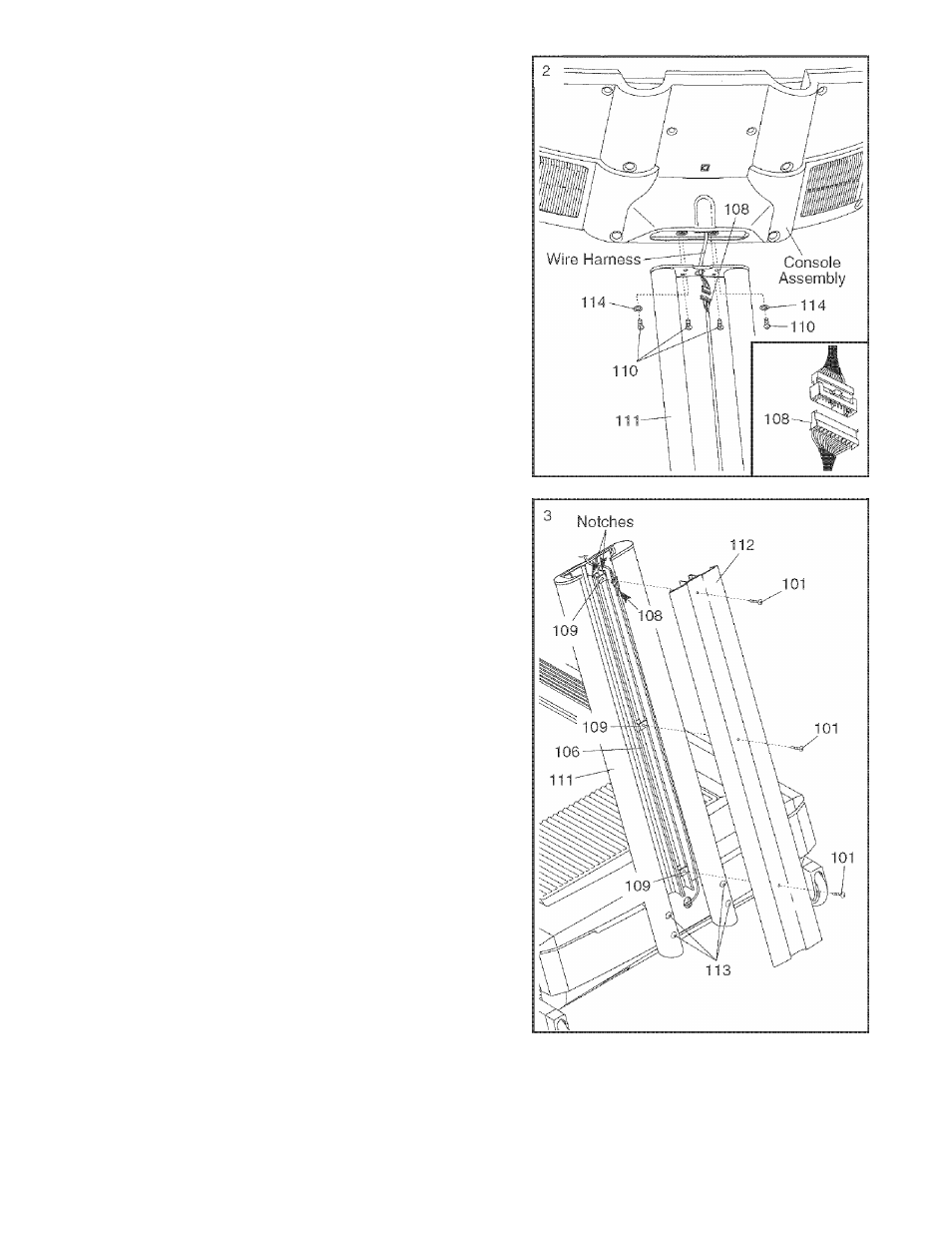

2. Have a second person hold the console assembly near
the Upright (111). Insert the wire harness extending from
the console assembly through the hole in the top of the
Upright. Attach the console assembly to the Upright with
four Console Bolts (110) and two Star Washers (114).
Firmly tighten the four Console Bolts.
Next, connect the wire harness extending from the con­
sole assembly to the Wire Harness (108). The connec­
tors should slide together easily and snap into place.
If they do not, turn one connector and try again.
Note: For clarity, the console assembly is not shown
in this step.
Orient the Short Panel (106) so that the indicated notches
are at the top. Have a second person hold the Short Panel
against the Upright (111), with the top of the Short
Panel flush with the top of the Upright. Route the Wire
Harness (108) down the indicated side of the Short Panel.
Next, hold the Long Panel (112) against the opposite side
of the Upright (111); make sure that the top of the Long
Panel is flush with the top of the Upright and that the
Wire Harness (108) is not pinched. Press the Long
Panel and the Short Panel (106) together, and align the
three holes in the Long Panel with the holes in the Panel
Brackets (109). Attach the Long Panel and the Short
Panel with three Panel Screws (101).
Firmly tighten the four Upright Bolts (113).
