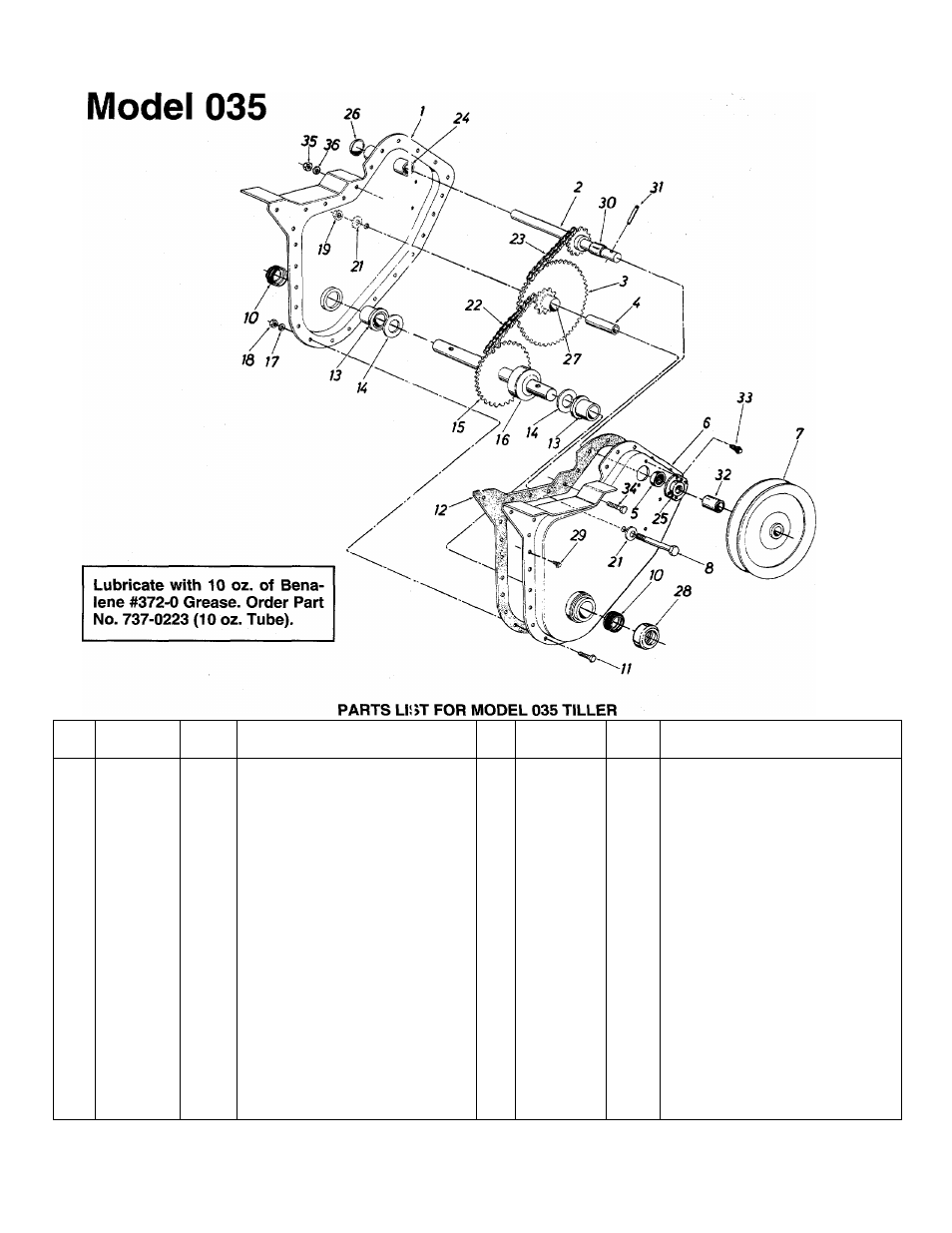

REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
686-0024
Chain Case
Ass’y.
—R.H.
23
713-0216
Chain #35 .375“ Pitch 50
2
04756
Input Shaft Ass’y-
Links
3
04757
Hub and Sprocket Ass’y
713-0139
#35 Master Link
4
750-0351
Bearing Inner Race
24
748-0154
Bearing .62" I.D. x .813"
5
741-0155
Ball Bearing
25
05034A
Bearing Housing
6
686-0023
Chain Case Ass’y.—L.H
26
726-0164
Expansion Plug 13/16"
7
756-0287
Pulley—Chain Casett
Dia.
8
710-0369
Hex Bolt 3/8-24 x 2.5"*
27
741-0228
Bearing
10
721-0157
Sealtt
28
731-0486
Dust Captt
11
710-0195
Hex Bolt 1/4-28 x .625"*
29
710-0599
Hex Wash. Hd. Self-Tap
12
721-0156A
Gasket
Scr. 1/4-20
X
.50" Lg.
13
741-0227
Flange Brg. .879" I.D.
30
750-0471
Spacer .63" I.D. x .77"
14
736-0265
FI-Wash. .88" I.D. x 1.5"
O.D.
X
.38" Lg.
15
04920
Tine Shaft Ass’y.
31
715-0114
Spring Pin Spiral 1/4" Dia.
16
750-0354A
Spacer 7/8" I.D.
X
1-1/2" Lg.tt
17
736-0329
L-Wash. 1/4" I.D.*
32
750-0550
Spacer .647 x 1.25"tt
18
712-0138
Hex Nut 1/4-28 Thd.*
33
710-0653
Hex Wash. Hd. Self-Tap
19
712-0116
Hex Ins. L-Nut 3/8-24 Thd.
Scr. 1/4-20
X
.38" Lg.
21
736-0219
Bell-Wash. .406" I.D.
34
710-0118
Hex Bolt 5/16-18
X
.75" Lg.*
22
713-0215
Chain #420 1/2" Pitch 38
35
712-0267
Hex Nut 5/16-18 Thd.*
Links
36
736-0119
L-Wash. 5/16" I.D.*
713-0154
#420 Master Link
—
686-0022
Chain Case Ass’y. Comp.
ttNot part of chain case assembly.
6A — Page 4
