HANDLE

THROUGH

SLOT IN FRAME

SHOULDER

BOLT (A)

BELLEVILLE

WASHER (B)

HEX NUT (D)

t

LOCK

WASHER (C)

2

.

3.

4.

Place lower handle into the slots in the rear

frame. See figure 3.

Line up holes in handle with holes in frame.

See figure 3.

Secure rear wheels (P) and lower handle (M) to

frame with shoulder bolts (A), belleviile washers
(B) (cupped side of washer against the frame),

lock washers (C) and hex nuts (D). See figure 3.

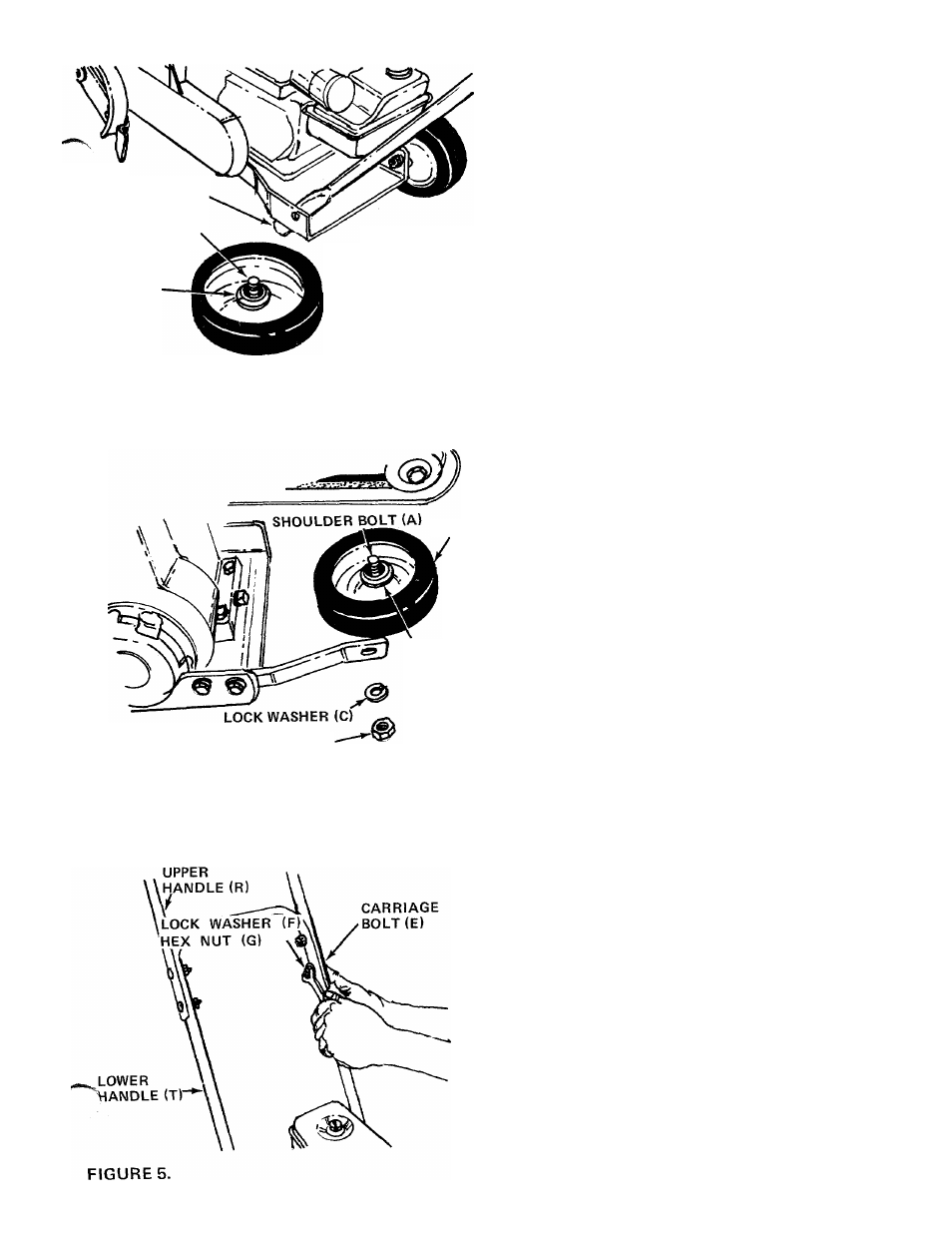

FIGURES.

FRONT

WHEEL

BELLEVILLE

WASHER (B)

HEX NUT,

(D)

5. Assemble the front wheel (O) as shown in figure

4. Place shoulder bolt (A) through wheel, then

belleviile washer (B) (between wheel and frame,

cupped side against the frame). Secure with lock
washer (C) and hex nut (D). See figure 4.

FIGURE 4.

6.

Assemble the upper handle (R) to lower handle.

Place the head of carriage bolts (E)to the outside

of handle. Secure with lock washers (F) and
and hex nuts (G). See figure 5.
