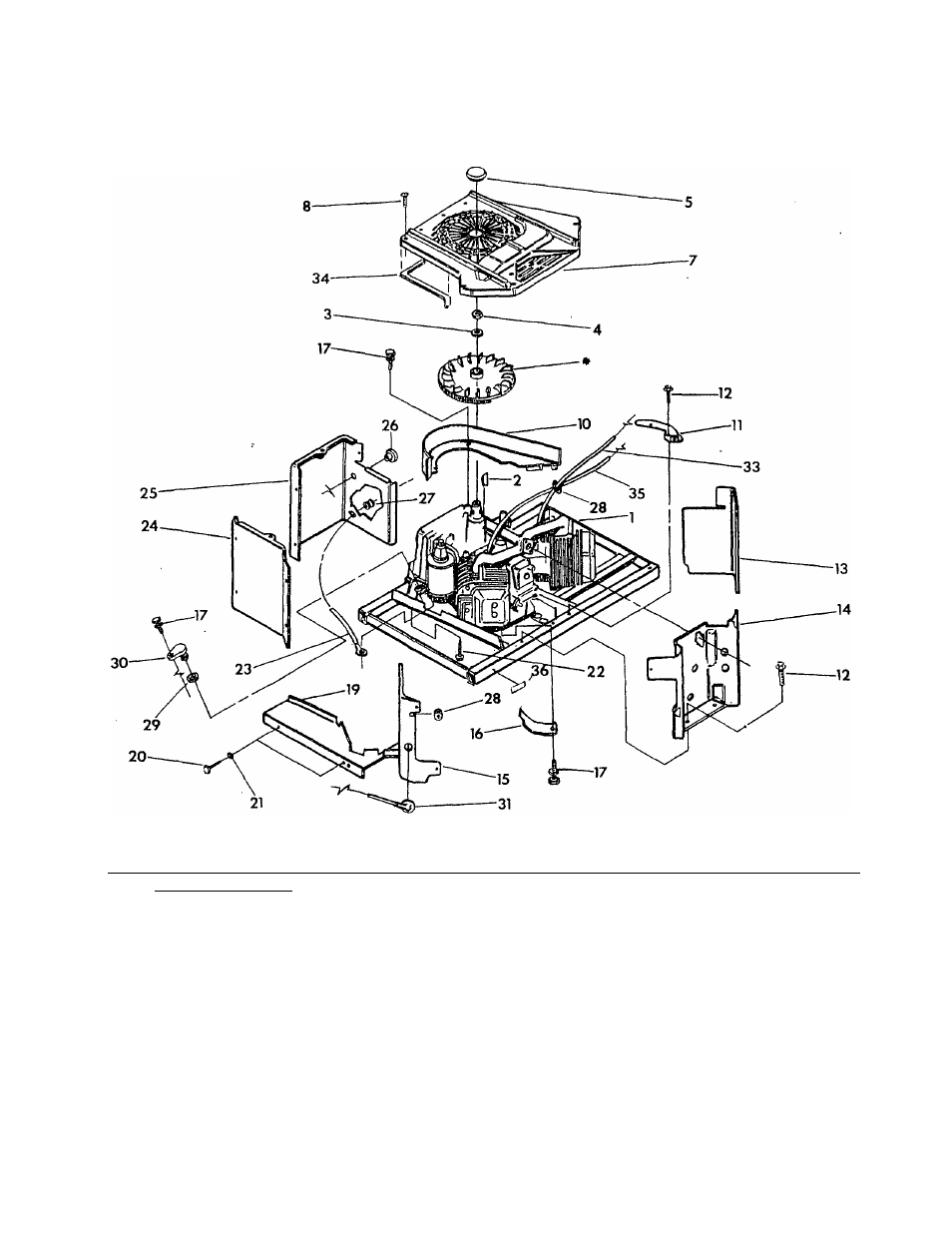

EXPLODED VIEW — ENGINE SHEET METAL
Drawing No. 89403
ITEM
PART NO. QTY.
DESCRIPTION
ITEM
PART NO. QTY.
DESCRIPTION
1
1
21
22129
2
M8 Lockwasher
2
67877
1
6
X
25 Woodruff Key
22
75246
4
3/8“-16x 1-1/4“ Screw
3
67198-N
1
Belleville Washer
23
10-74260
1
No. 16 Wire Assembly
4
67890
1
M20-1.50 Hex Nut
24
74900
1
Starter Cover
5
87865
1
Flywheel Access Plug
25
73186
1
Crankcase Wrapper
7
86313
1
Engine Housing Top
26
81108
1
Snap Bushing
8
56893
23
No. 10-24
X
3/8" Screw
27
22717-B
1
Rubber Grommet
10
87750
1
Flywheel Scroll
28
22717-A
2
Rubber Grommet
11
74916
1
No. 2 Base Cover
29
67866
1
O-ring
12
74908
9
M5
X
10mm Taptite Screw
30
77001
1
Oil Fill Plug
13
73190
1
No. 2 Cylinder Wrapper
31
73132
2
Spark Plug Boot
14
78858
1
Valley Cover
33
87858A
1
Ground Wire Assembly
15
78859
1
No. 1 Cylinder Wrapper
#2
cylinder
16
74902
2
Wrapper— Barrel
34
29289
2
ft.
Foam Tape
17
66476
2
M6-1.00
X
12mm Capscrew
35
87858B
1
Ground Wire Assembly
with lock washer
#1
cylinder
19
73191
1
No. 1 Base Cylinder Cover
36
50277
1
Oil Drain Decal
20
42907
2
M8-1.25
X
16mm Capscrew
- 2 3 -
