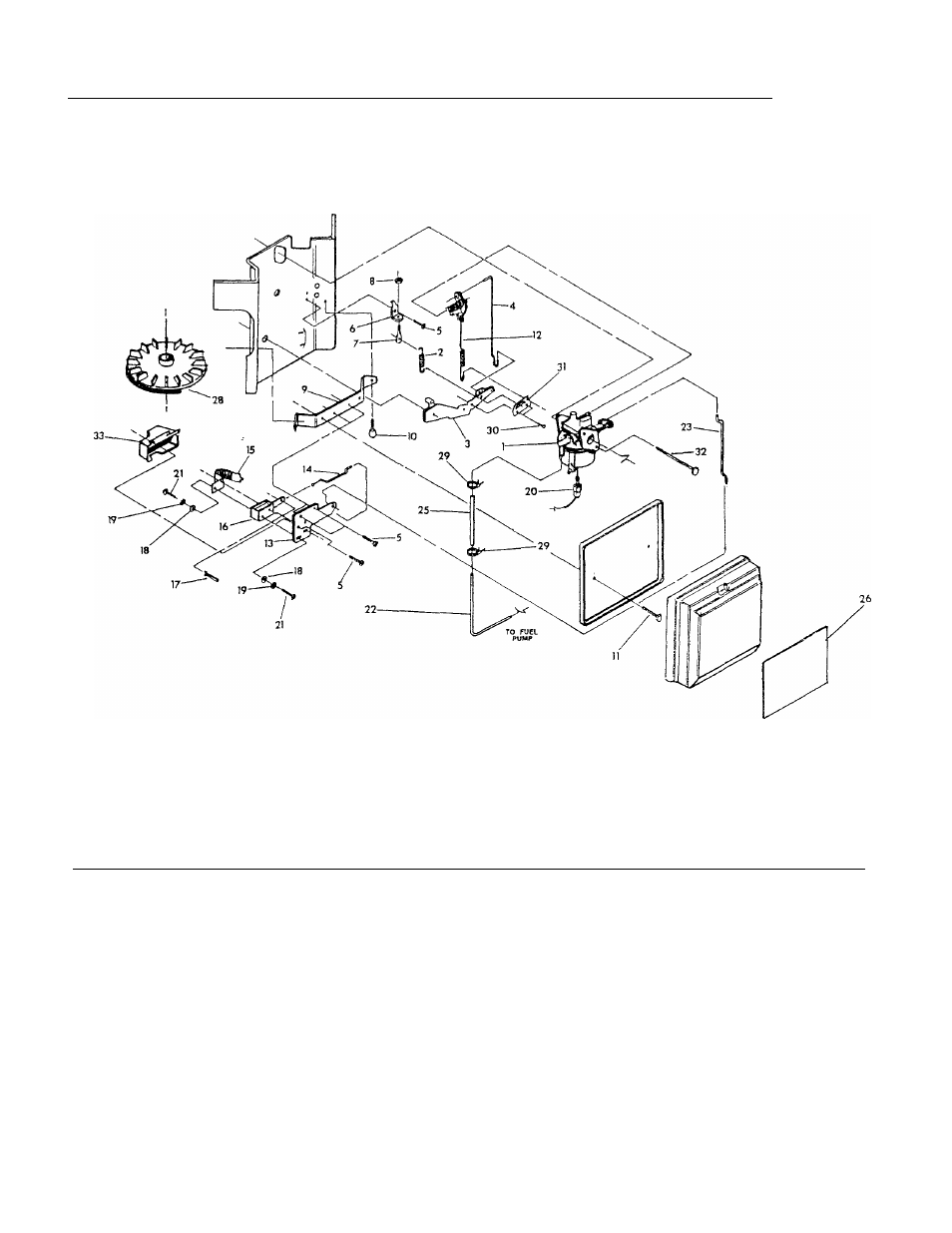

EXPLODED VtEW — CARBURETOR AND AIR CLEANER
Drawing No. 93733
ITEM
PART NO. QTY.
DESCRIPTION
ITEM
PART NO. QTY.
DESCRIPTION
1
73112B
1
Carburetor Assembly
18
31879
4
No. 4 Flat Washer
2
74962-C
1
Governor Spring
19
22159
4
No. 4 Lock Washer
3
70155
1
Governor Lever
20
NOT USED WITH THIS UNIT
4
70108
1
Govemor-to-Carburetor Rod21
72536
2
No. 4-40
X
1/4" Screw
5
56893
5
No. 10-24
X
1/2" Screw
22
87770
1
5/16" dia. Fuel Line
6
74961
1
Governor Adjuster Bracket 23
74946
1
Choke Link
7
47227
1
Governor Adjuster Screw
25
47662-T
1
4-1/2" long Fuel Hose
8
37398
1
Hex Lock Nut (nylon)
26
91351
1
Air Cleaner Decal
9
73131
1
Air Cleaner Support Bracket27
75252
1
Carburetor Overhaul Kit
10
66476
2
M6-1.0x12mm Hex Screw
28
73130
1
Flywheel Assembly
11
70575
2
M6-1.0
X
25mm Hex Screw 29
40173
2
Hose Clamp (screw type)
12
70125
1
Anti-Lash Spring
30
66829
2
1/8" dia.
X
1/8" long Rivet
13
73374
1
Choke Support Bracket
31
75944
1
Governor Spring Bracket
14
74947
1
Choke Control Rod
32
70594
2
M6-1.0
X
93mm Capscrew
15
89473
1
Bimetal Choke Assembly
with washer
16
91306
1
Choke Solenoid
33
77075
1
Choke Coil Cover
17
77091
1
Cotter Pin
