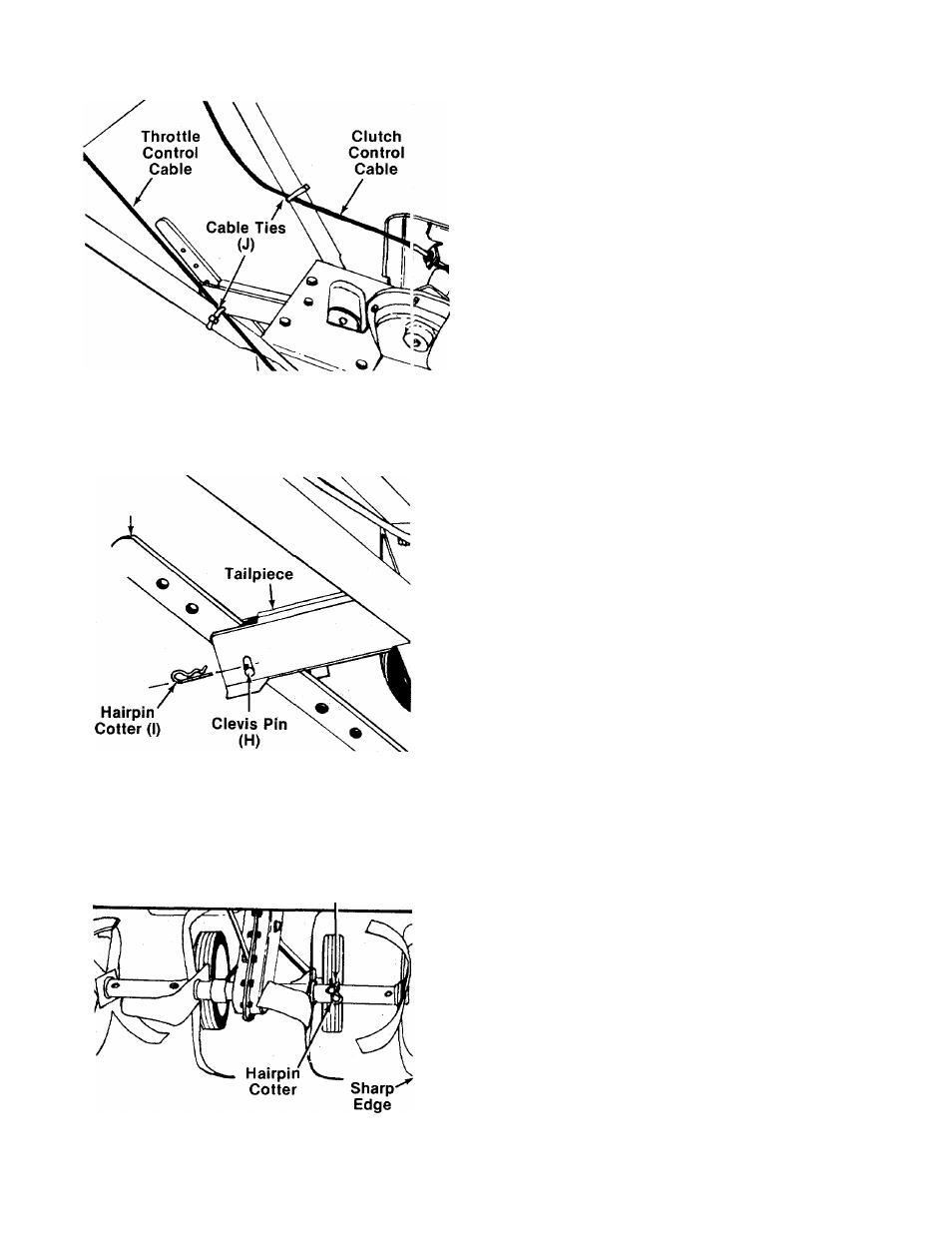

6. Secure the throttle control cable and clutch con
trol cable to the handles with cable ties (J) pro-
—vided. Cut off excess ends. See figure 13.
FIGURE 13.
K
DEPTH BAR INSTALLATION
Place the depth bar in position on the tailpiece. Secure
with clevis pin (H) and hairpin cotter (I). Round end of
-depth bar goes to the top. See figure 14.
FIGURE 14.
Sharp
Clevis Edge
Pin
TINE ASSEMBLIES
Check to be certain the tine assemblies are on the tine
shaft so that the sharp edge enters the soil first. See
-figure 15.
:3
FIGURE 15.
