Ball Knob
Flat

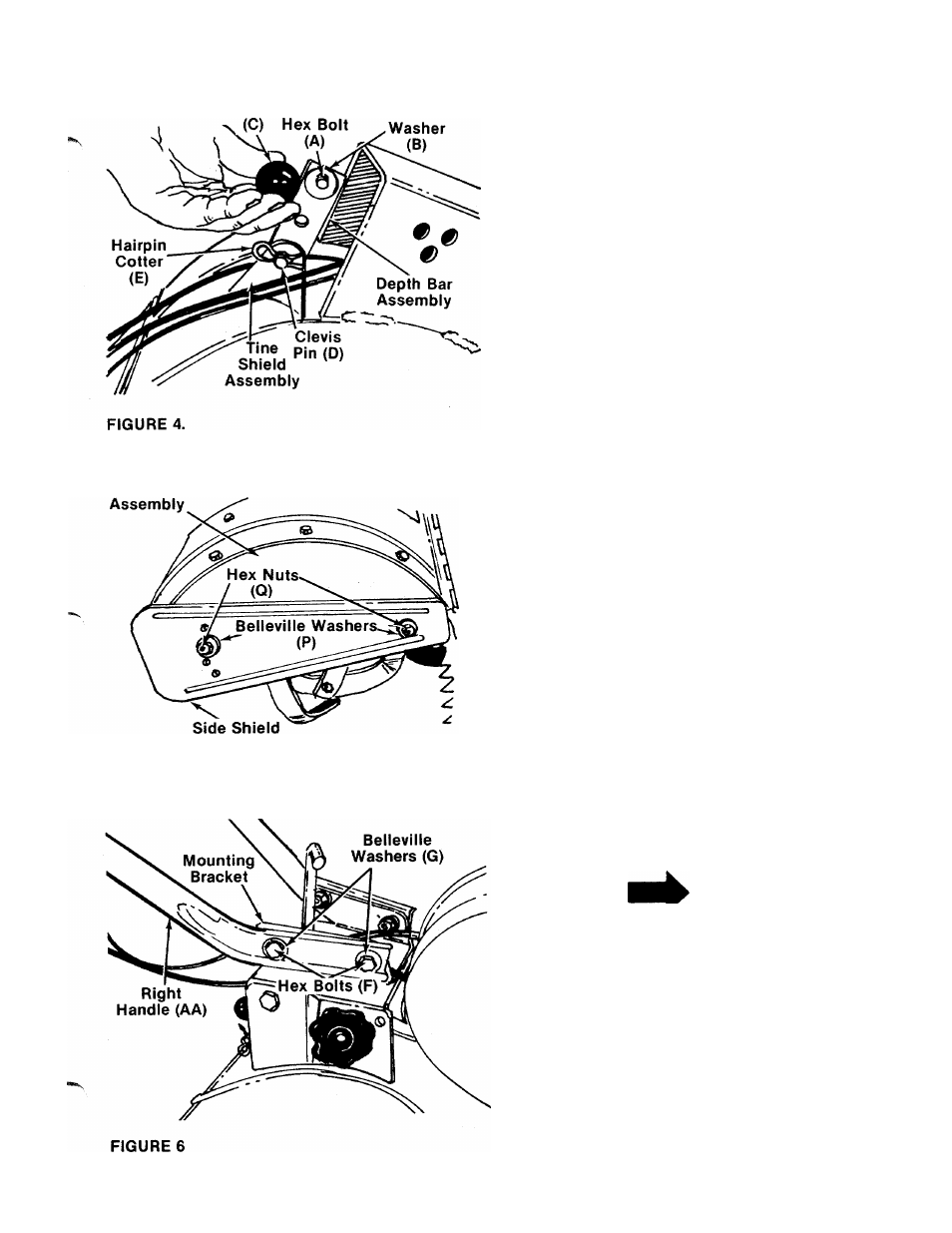

2. Insert clevis pin (D) through the tine shield and
depth bar assemblies. Secure with hairpin cotter
— (E). See figure 4.
3. Insert hex bolt (A) into the upper hole of the depth
bar assembly. Place flat washer (B) onto the hex
bolt and thread ball knob (C) onto the hex bolt. See
figure 4. Tighten securely.
End Cover
SIDE SHIELD INSTALLATION
Mount side shields (AB) over the weld bolts on the end
cover assemblies. Secure with belleville washers (P)
■and hex nuts (Q). See figure 5.
FIGURE 5.
HANDLE ASSEMBLY
NOTE
Left and right is determined from
the
operator’s
position,
standing
behind the tiller.
1. Place right handle (AA) in position on the right side
of the tiller. Insert hex bolts (F) through belleville
washers (G), handle and mounting bracket. See
----- figure 6. Secure with hex nuts (I) and lock washers
(H).
2. Repeat step 1 for left handle (AE) on the left side
of the tiller.
