Wheel Chain

Wheel Chain.

Case Pulley Forward

Drive Belt

Forward

Engine Pulley //

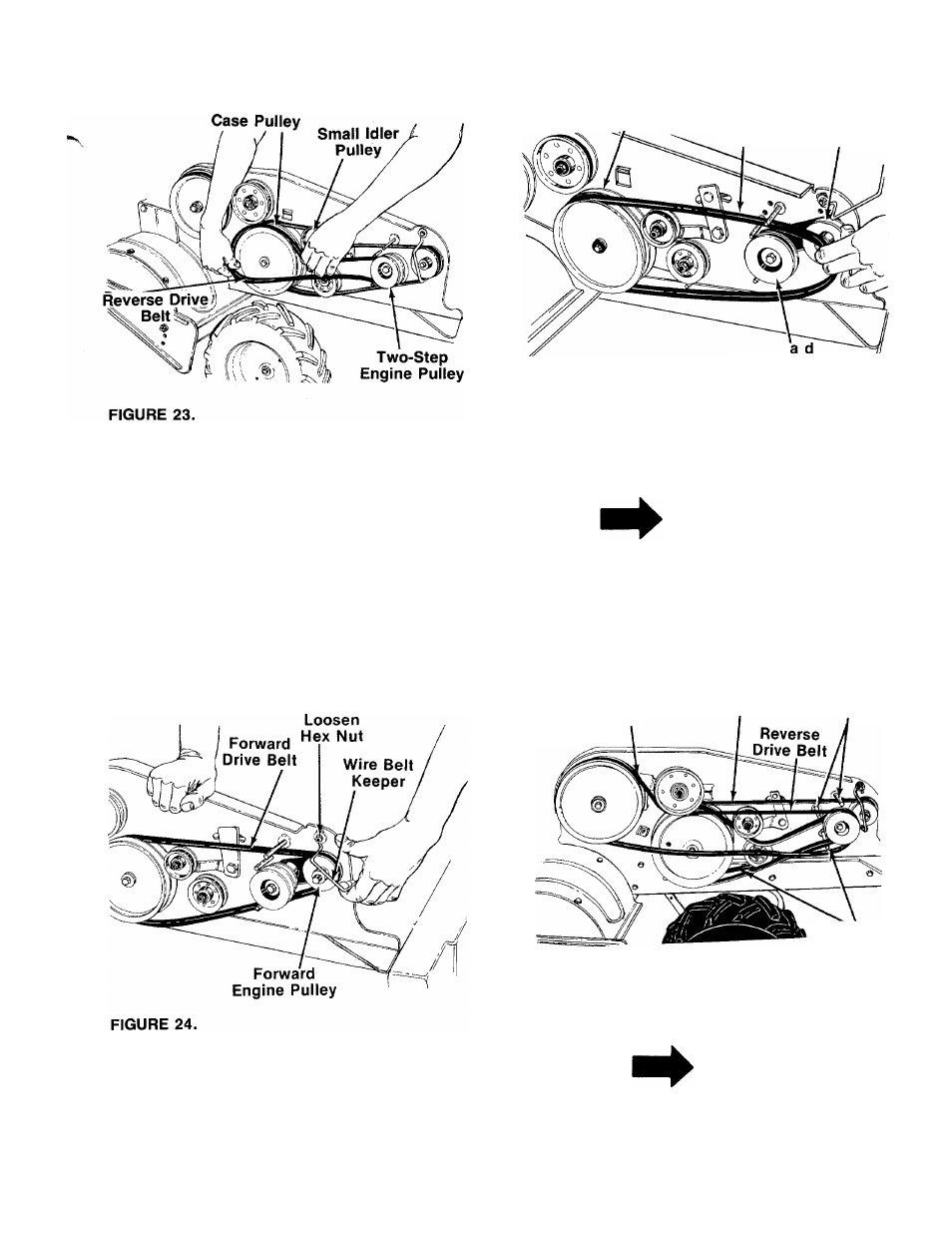

FIGURE 25.

4. To remove the forward drive belt, proceed as

follows.

A. Loosen (do not remove) the hex nut at the top

of the wire belt keeper.

B. Pull bottom of wire belt keeper out and then up

ward, pivoting it away from the forward engine
pulley. See figure 24.

5. Reassemble new belts, following instructions in

reverse order.

IMPORTANT

When reassembling belts, be certain

belts

are

routed

around

all

belt

keeper pins as shown in figure 26.

Tine Belt

FIGURE 26.

Forward

Drive Belt

Belt Keeper

Pins

Belt Keeper

Pins

C. Lift belt off the forward engine pulley. See figure

25.

D. Remove belt from inside sheave of wheel chain

case pulley.

NOTE

Upon reassembly, refer to illustra

tion on page 18 for correct assembly
of wire belt guard for your model
tiller.
