ASSEMBLY

HOW TO SET UP YOUR TRACTOR

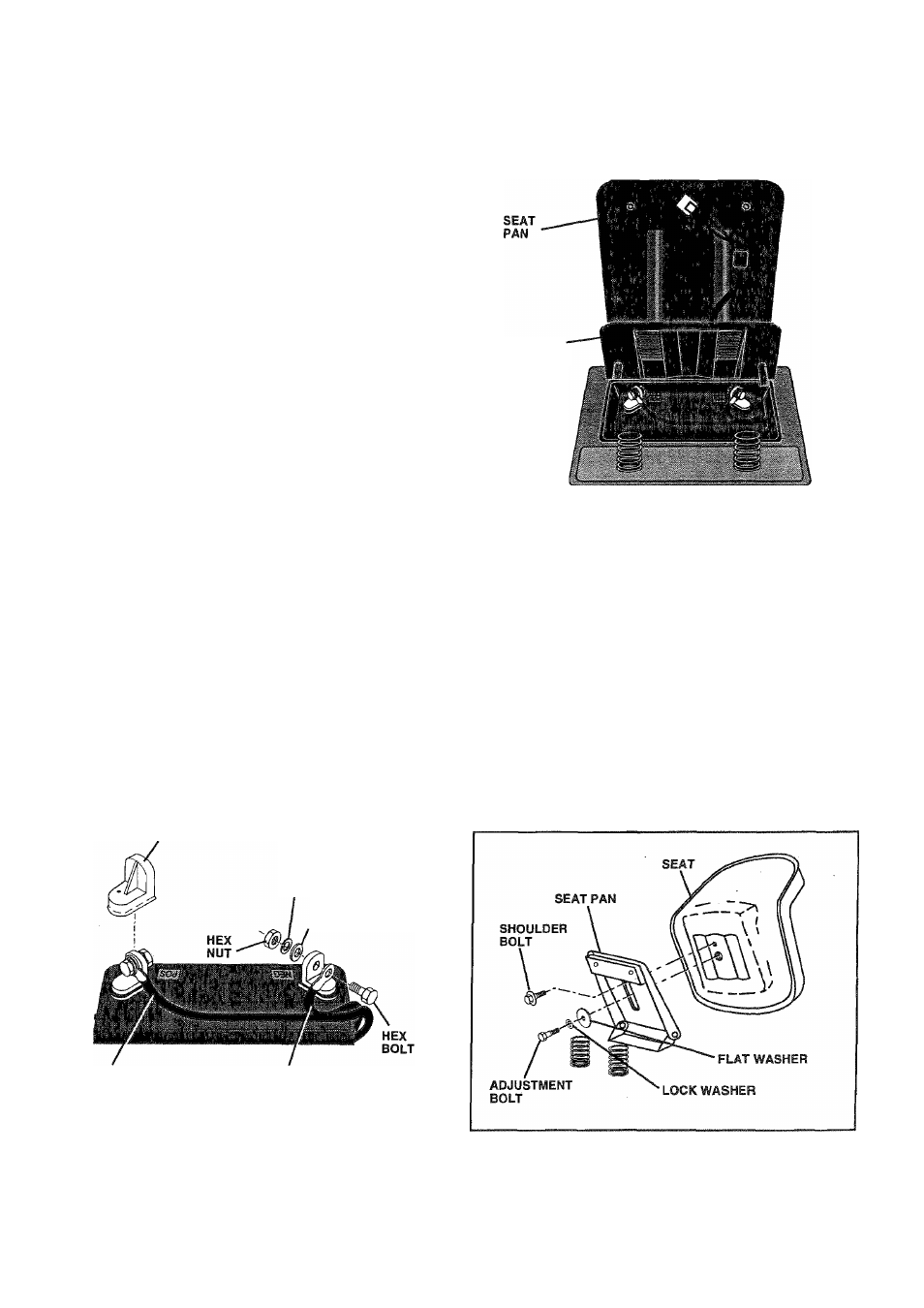

CONNECT BATTERY (See Figs. 2 and 3)

A

CAUTION: Do not short battery termi­
nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden­
tal grounding.

Remove cardboard packing from seat pan and lift seat

pan to raised position,

Open battery box door.

Remove terminal protective caps and discard.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-tO amps.

First connect RED battery cable to positive (+) terminal

with hex bolt, flat washer, lock washer and hex nut as
shown. Tighten securely.

Connect BLACK grounding cable to negative (-) termi­
nal with remaining hex bolt, flat washer, lock washer

and hex nut. Tighten securely.

Close battery box door.

Open battery box door for:

Inspection for secure connections (to tighten hard­

ware).

Inspection for corrosion.

Testing battery.

Jumping (if required).

Periodic charging .

DISCARD

TERMINAL

PROTECTIVE CAPS

LOCK

WASHER

FLAT

WASHER

POSITIVE

(RED) CABLE

NEGATIVE

(BLACK) CABLE

BATTERY

BOX DOOR

RG.3

INSTALL SEAT (See Fig. 4)

Adjust seat before tightening adjustment bolt.

Remove cardboard packing on seat pan.

Place seat on seat pan and assemble shoulder

bolt.Tighten shoulder bolt securely.

• Assemble adjustment bolt, lock washer and flat washer

loosely. Do not tighten.

Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way
down.

Get off seat without moving its adjusted position.

Raise seat and tighten adjustment bolt securely.

FIG. 2

FIG. 4
