TRACTOR - - MODEL NUMBER HD145H42H

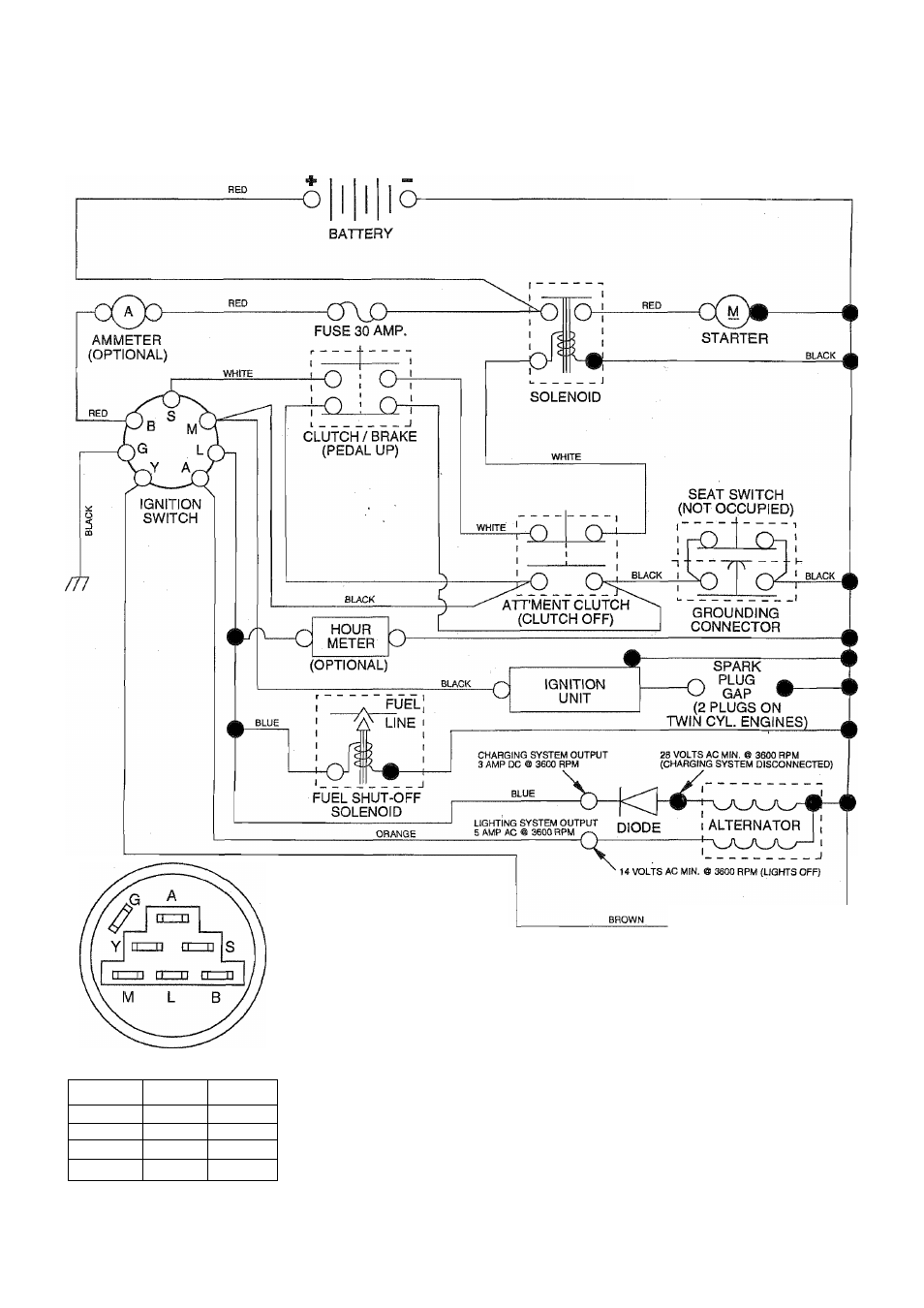

SCHEMATIC

BLACK

IGNITION SWITCH

POSITION

CIRCUIT

“MAKE”

OFF

G + M + L

NONE

RUN/LIGHT

B + L

A + Y

RUN

B + L

NONE

START

B + L+S

NONE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY. BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST,

L0-J

HEADLIGHTS

BUCK I

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS
