REPAIR PARTS

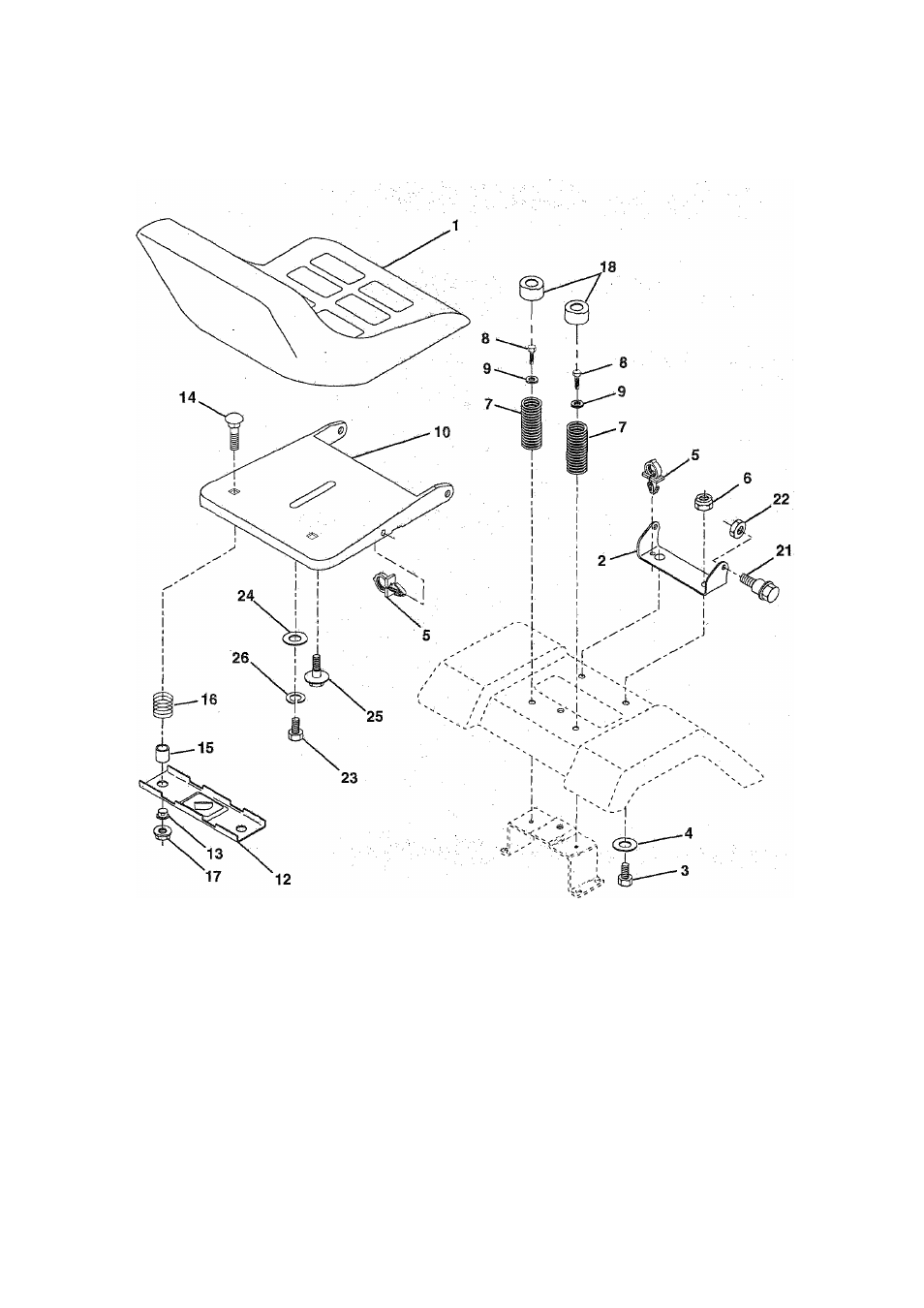

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER HD145H42H
KEY PART
NO. NO.
1 140116
2 140551
3 74760616
4 19131610
5 145006
6 73800600
7 124181X
8 17490616
9 19131614
10 155925
12 121246X
13 121248X
14 72050412
DESCRIPTION
Seat 2300/1316 BIk/bIk AYPPL
Bracket Pivot Seat 8 720
Bolt Fin Hex 3/8-16 Unc x 1
Washer Flat 13/32 x 1 x 10 Ga
Clip Push In Hinged
Nut Crownlock 3/8-16 Unc
Spring Seat Cprsn 2 250 Bik 2i
Screw Thdrol 3/8-16 X 1 Ty-tt
Washer 13/32X 1 X 14 Ga
Pan Seat
Bracket Mounting Switch
Bushing Snap BIk Nyl 50 Id
Bolt Rdhd Sht Nk 1/4-20x1-1/2
KEY
NO. PART
NO.
15 134300
16 121250X
17 123976X
18 124238X
21 153236
22 73680500
23 74780814
24
19171912
25 127018X
26 10040800
DESCRIPTION
Spacer Split 28x 96 Yel Zinc
Spring Cprsn 1 27 Bik Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Cap Spring Seat
Bolt Shoulder 5/16-18 Unc BIkz
Nut Crown Lock 5/16-18
Bolt Fin Hex 1/2-13 X 7/8 Gr 5
Washer 17/32 X 1-3/16 X 12 Ga
Bolt Shoulder 5/16-18X62
Washer Lock Hvy Hid Spr 1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
