MTD 242A645-000 User Manual
Owneirs guide, 5 and 8 h.p. shredders
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

$1.00
OWNEirS GUIDE
• ASSEMBLY • OPERATION • MAINTENANCE • PARTS •
5 and 8 H.P.

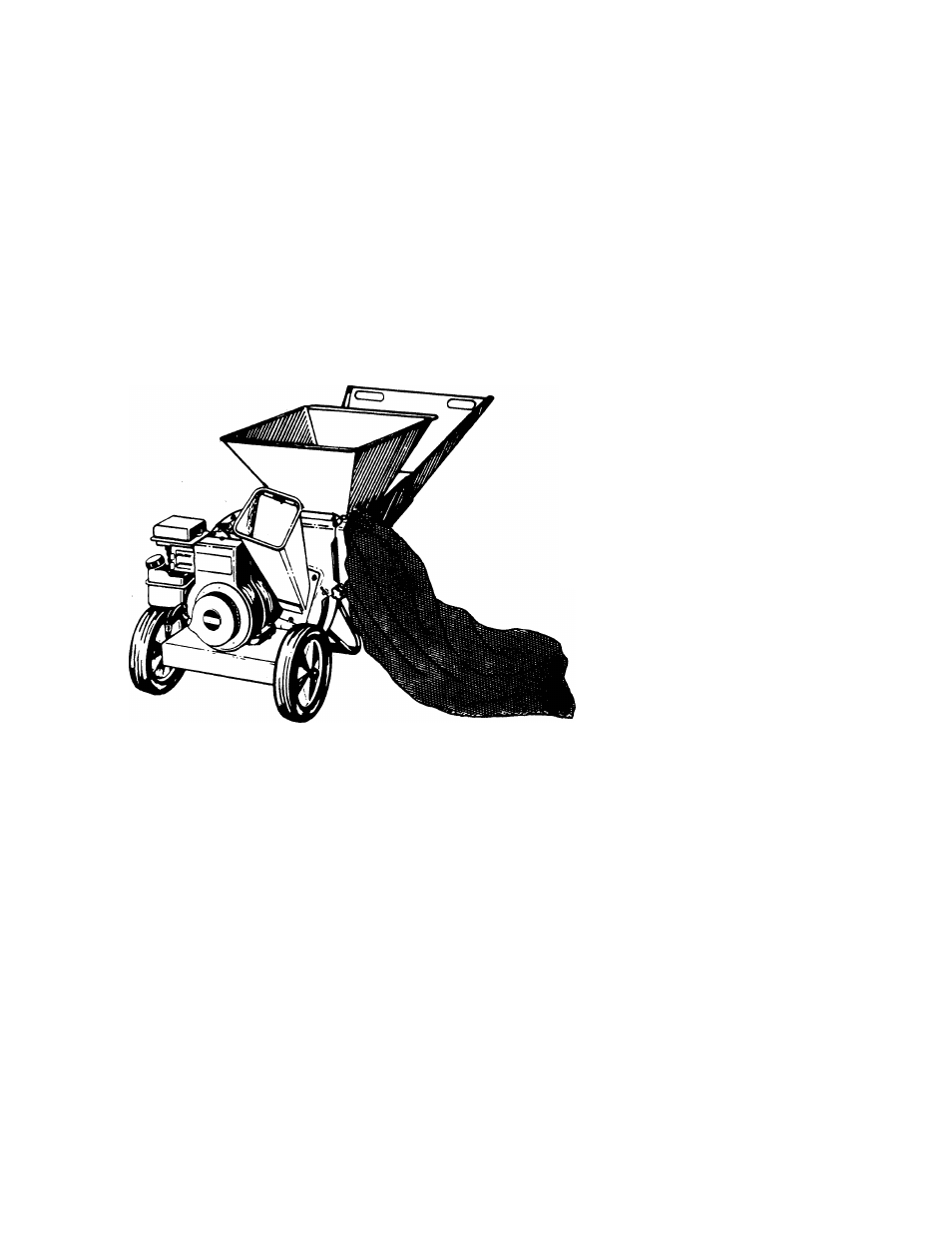

SHREDDERS
Model Numbers
242-645-000
242-648-000 /
rs
MULiJ
242A645-000
242A648-000j
’XMPELLEP^
/Iss/
Important:
Read Safety Rules
and Instructions Carefully
IMPORTANT!
Record the Model No. and Mfg. Code which
appear on your unit in the space below. You
must have these numbers, along with the date
of purchase, in order to receive warranty or ser
vice.
MEETS ANSI SAFETY STANDARDS
MODEL NO.
MFG. CODE
AMERICA
WARNING: This unit is equipped with an internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-covered or grass-covered land unless the
engine’s exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by
the operator.
In the State of California the above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws apply on federal lands.
A spark arrester for the muffler is available through your nearest engine authorized service
dealer or contact the service department, P.O. Box 360900, Cleveland, Ohio 44136.
FORM NO. 770-7048G
