3.2. Mounting the smartModule

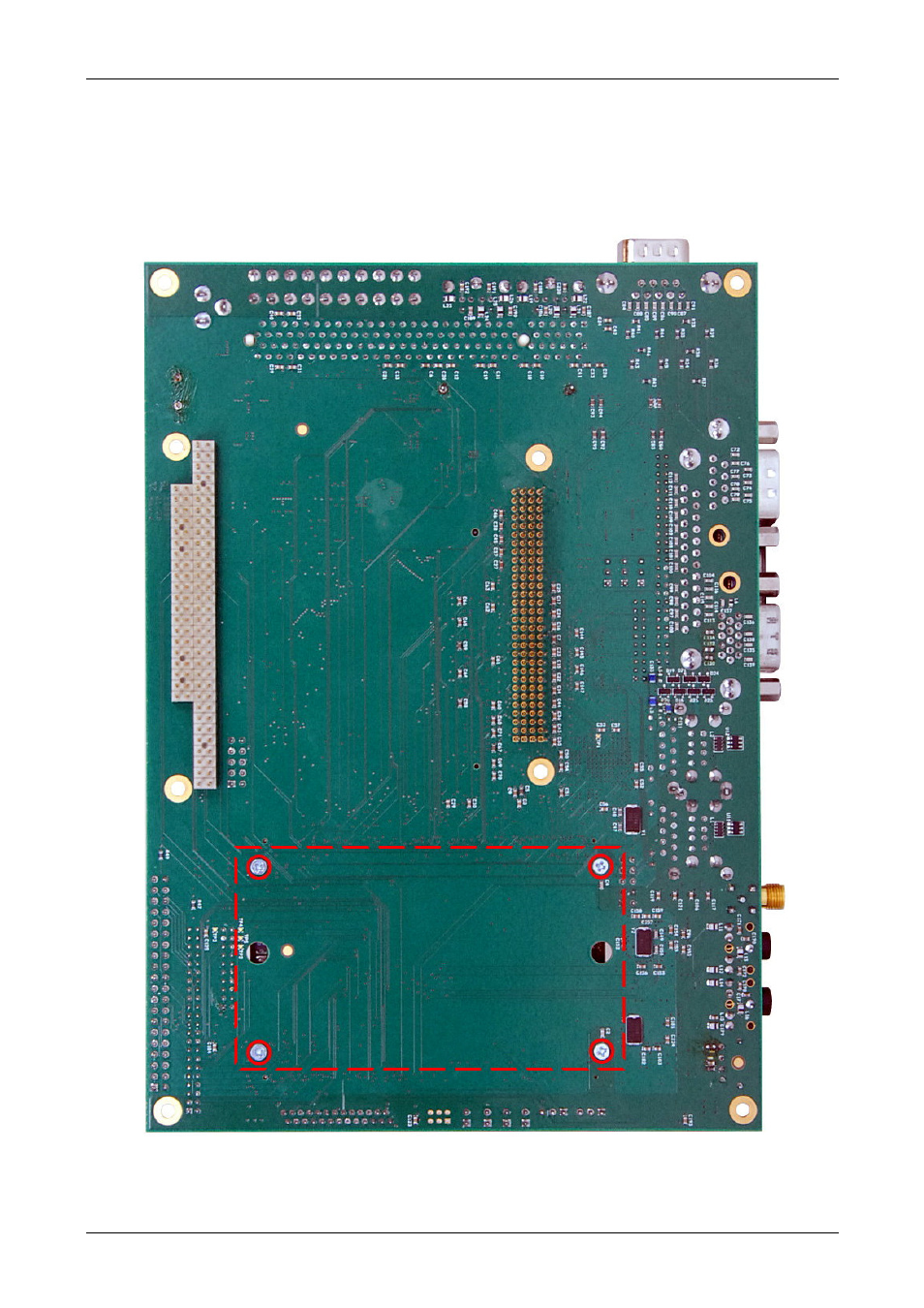

Line up the holes in the smartModule on the MSEBX board (top side). Then on the reverse side, attach the
smartModule using 4 Phillips head screws (circled in red, within the red frame marking the approximate
location of the smartModule). The screws are delivered with the smartModule but if lost may be ordered: Part
Nr. 502528, description: M2x 5 galvanized machine screw.
