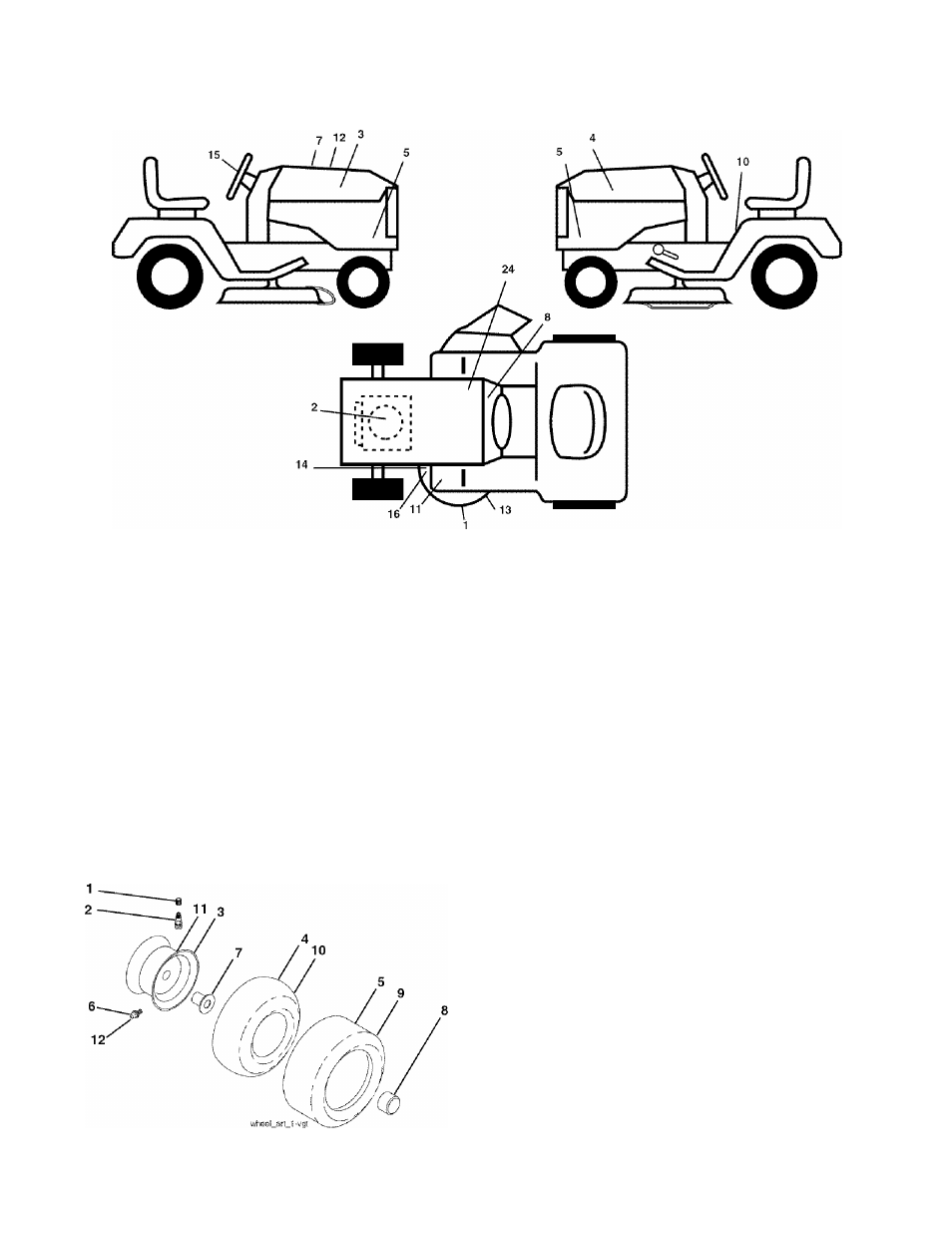

DECALS
REPAIR PARTS
TRACTOR - - MODEL NO. 917.279090 PRODUCT NO. 960 25 00-02
KEY PART
NO. NO.
1
2
3
4
5
7
8
10
11
12
532178482
532191651
532188947
532188948
532194281
532180941
532196044
532157002
532181249
532194363
WHEELS & TIRES
DESCRIPTION
Decal, Deck Heavy Duty
Decal, Engine
Decal, Hood, RH
Decal, Hood, LH
Decal, Side Panel
Decal, Customer Resp.
Decal, Dash
Decal, Danger
Decal, Clutch/Brake
Decal, Replacement
KEY PART
NO. NO. DESCRIPTION
13 532188298 Decal, V-Belt Sch
14 532178455 Decal, Caution
15 532188925 Decal, Ins. Strg WhI
16 532193062 Decal, Mower Upstop
24 532145005 Decal, Btry Dngr/Psn
- -
532181917 Pad, Footrest, RH
- - 532181916 Pad, Footrest, LH
- - 532197646 Manual, Owner’s (English)
532197647 Manual, Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Valve, Tire
2 532065139 Stem, Valve
3 532144509 Rim Assembly, Front
4 532008134 Tube, Front (Service Item Only)
5 532106230 Tire, Front
6 532124957 Fitting, Grease
7 532124959 Bearing, Flange (Front Wheel
Only)
8 532175039 Cap, Hub
9 532105588 Tire, Rear
10 532007154 Tube, Rear (Service Item Only)
11 532144510 Rim Assembly, Rear
12 532124860 Fitting, Grease
- - 532144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
