REPAIR PARTS
TRACTOR - - MODEL NO. 917.279090 PRODUCT NO. 960 25 00-02

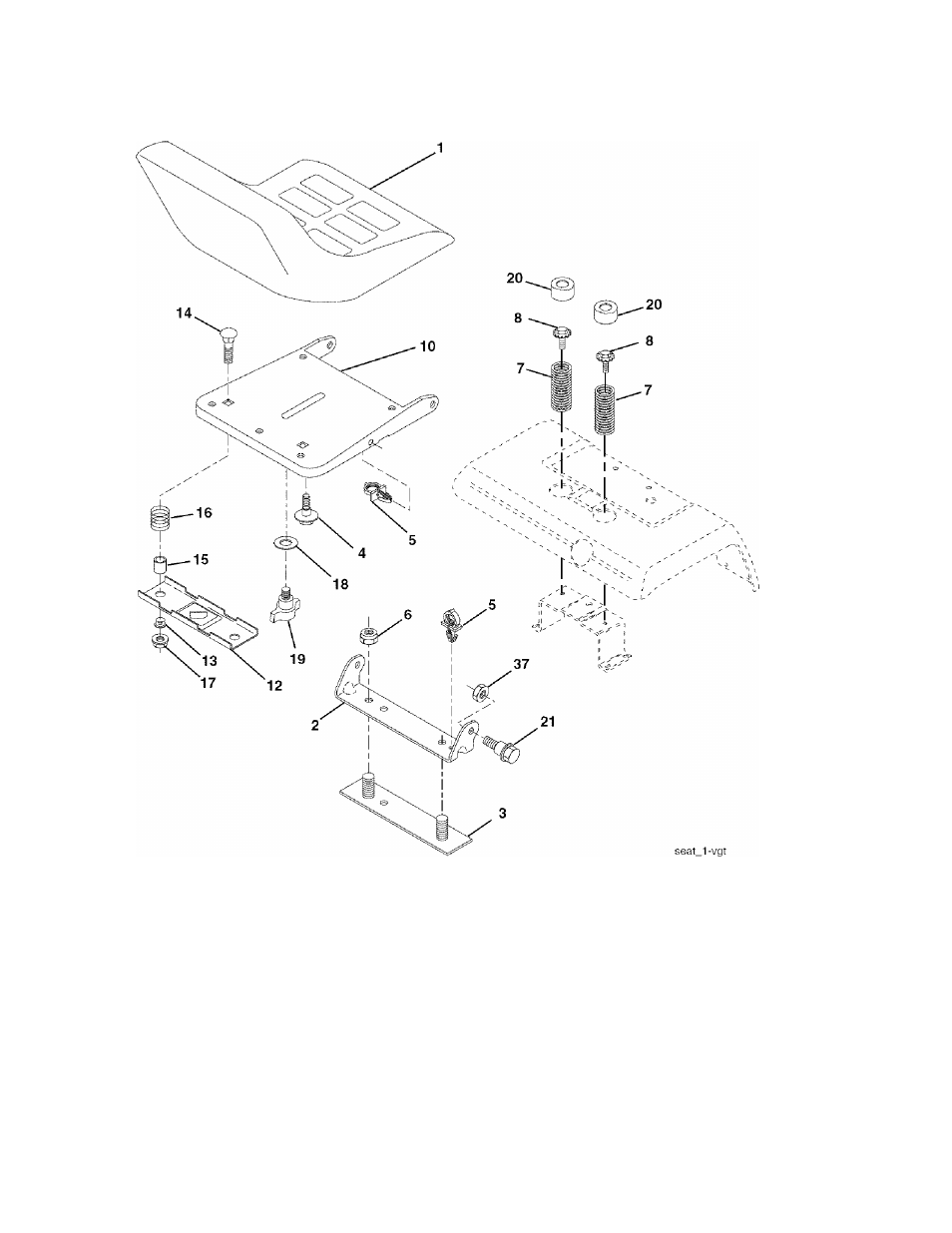

SEAT ASSEMBLY
KEY
PART
NO.
NO.
DESCRIPTION
1
532190120
Seat
2
532140551
Bracket, Pivot Seat
3
532140675
Strap Asm Fender
4
532127018
Bolt Shoulder 5/16-18 x .62
5
532145006
Clip, Push In Hinged
6
873800600
Nut, Crownlock 3/8-16
7
532124181
Spring, Seat Cprsn
8
532171877
Bolt 5/16-18 Uncx3/4
10
532182493
Pan, Seat
12
532174648
Bracket, Mounting Switch
13
532121248
Bushing, Snap
14
872050412
Bolt, Carriage 1/4-20x1-1/2
KEY
PART
NO.
NO.
DESCRIPTION
15
532134300
Spacer, Split
16
532121250
Spring, Cprsn
17
532123976
Nut, Lock 1/4 Lge Fig Gr. 5
18
819171912
Washer 17/32 x 1-3/16 x 12 Ga.
19
532166369
Knob Seat
20
532124238
Cap, Spring Seat
21
532171852
Bolt, Shoulder 5/16-18
22
873680500
Nut Crownlock 5/16-18
37
873800500
Nut, Crownlock 5/16-18
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
