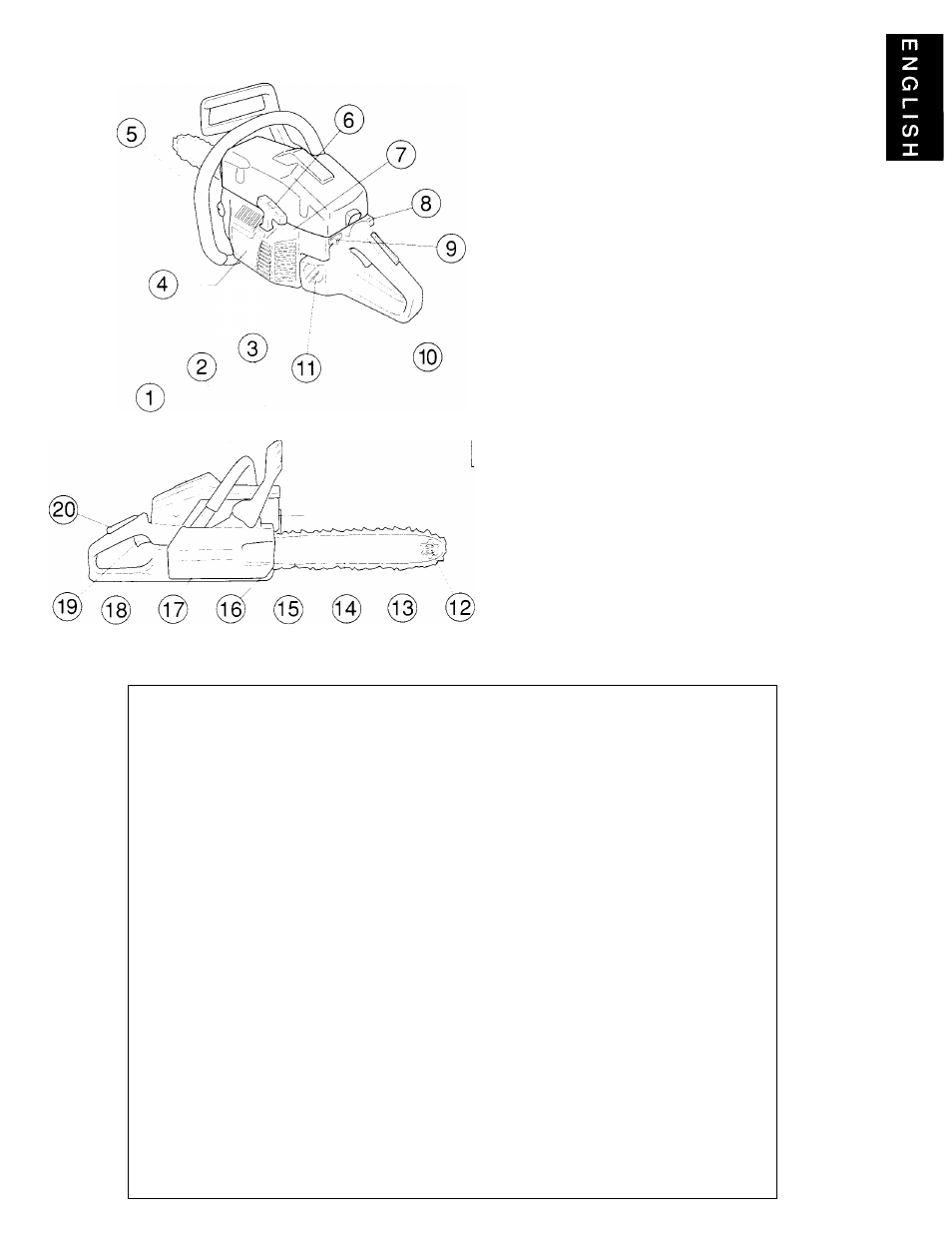

What is what on the saw
1. Cylinder cover.
2. Front handle.
3. Front hand guard.
4. Starter.
5. Chain oil tank.
6. Starter handle.
7. Adjustment screws, carburettor.
8. Choke/Throttle latch
9. Stop switch. Switches the ignition on and off.
10. Rear handle.
11. Fuel tank.
12. Sprocket nose.
13. Saw chain.
14. Guide bar.
15. Muffler.
16. Chain catcher. Catches the chain if the chain jumps or
breaks.
17. Clutch cover with a built-in chain brake.
18. Chain guard. Protects the right hand if the chain breaks
or jumps.
19. Throttle trigger.
20. Throttle trigger lockout. Prevents unintentional throttle
movement.
Technical specification
Engine 36 41
Displacement cu.in/cc 2.2/36 2.4/40
Bore mm 38 40
Stroke mm 32 32
Idling Speed rpm 3000 3000
Recommended max speed unloaded rpm 13.000 13.000
Ignition system
Manufacturer/type of ignition system Phelon CD 00
Spark Plug Champion RCJ7Y RCJ7Y
Electrode Gap in/mm 0.02/0,5 0.02/0,5
Timing Fixed; Nonadjustable
Fuei and lubrication system
Manufacturer/type of carburettor Walbro WT239 WT 239
Fuel tank volume pint/litre 0.73/0,40 0.73/0,40
Oil pump capacity at 8000 rpm cc/min 6-8 6-8
Oil tank volume pint/litre 0.36/0,20 0.36/0,20
Oil pump type
automatic automatic
Weight
With guide bar and chain, 16” Ibs/kilos 12.1/5,5 12.1/5,5
Chain and guide bar
Standard bar length in/cm 16/41 16/41
Recommended bar lengths in/cm 15/38 15/38
16/41 16/41
18/46 18/46
Chain speed at max power m/sec, t 16.3, 7t 16.3, 7t
Pitch in 3/8 3/8
.325 .325
Thickness of driving links in/mm .050/1,3 .050/1,3
.058/1,5 .058/1,5
