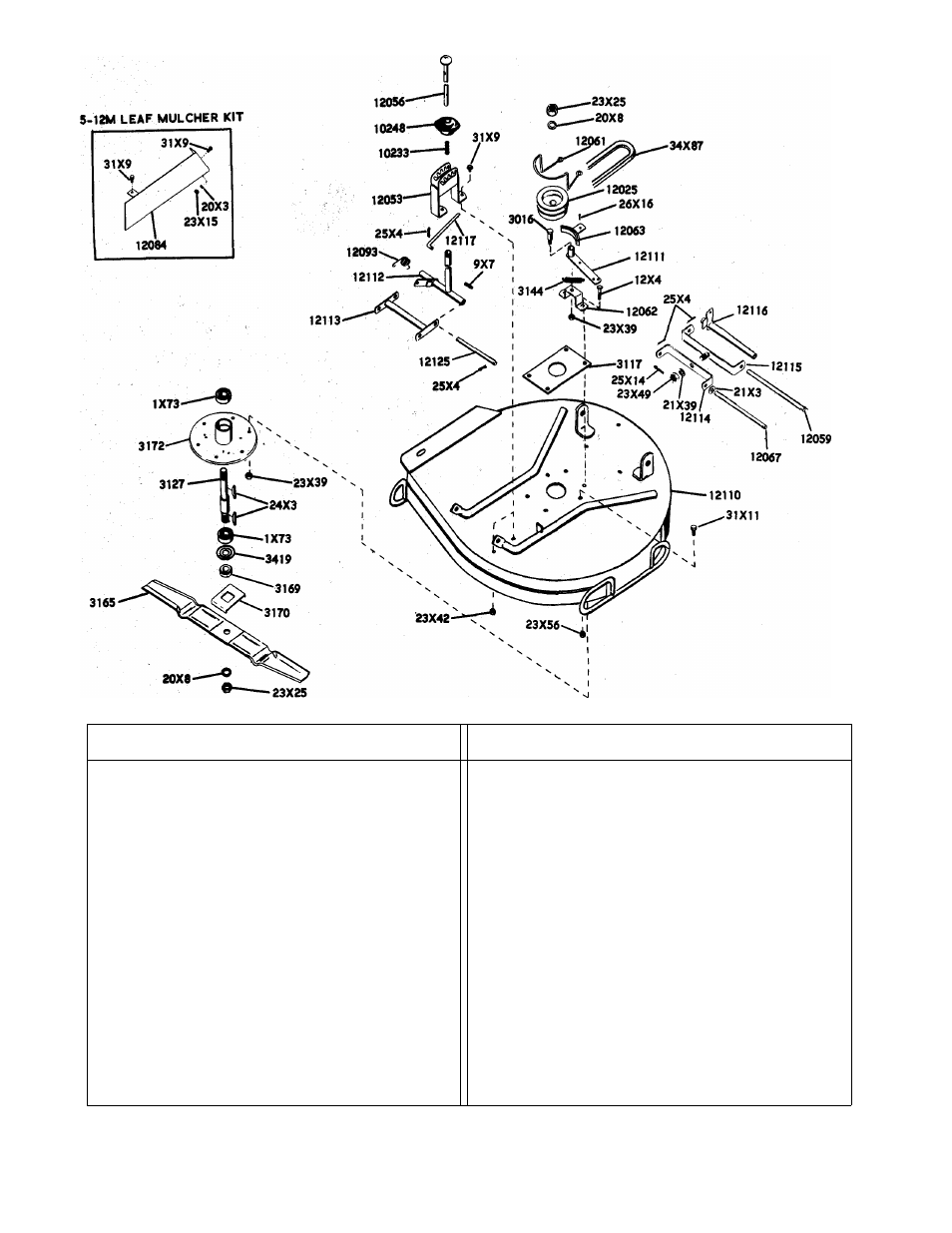

Part
No.
Description
No.
Req'd.
Part
No.
Description
No.
Req'd.
3016
Shoulder Bolt
1
12115
Clevis
1
3117
Reinforcing Plate
1
12116
Rear Raising Bracket
1
3127
Mower Spindle
1
12117
Height link Rod
1
3144
Spring
1
12125
Adapter Pin
1
3165
Mower Blade
1
1X73
Bearing
2
3169
Retainer Hub
1
9X7
RoU Pin 1/4
X
1-1/4
1
3170
Blade Tray
1
12X4
Cap Screw H. H. 3/8-16 x 1
4
3172
Spindle Housing
1
20X8
Lockwasher 3/4
2
3419
Bearing SUnger
1
21X3
Wrought Washer 1/2
1
10233
Spring
1
21X39
Washer 1.005 OD x .630 ID x .062
1
10248
Shift BaU
1
23X25
Hex Jam Nut 3/4-10 Plated
2
12025
Mower Sheave
1
23X39
Locknut 3/8-16
5
12053
Mower Height Quadrant
1
23X42
Locknut t/16-18 Plated
2
12056
Height Control Plunger
1
23X49
Nut C/8-18 Slotted Jam
1
12059
Rear Bracket tin
1
23X56
Flange Whizlock Nut 1/4-20 Hex
2
12061
Mower Belt Finger
1
24X3
Woodruff Key #9
2
12062
Blade Brake Support
1
25X4
Cotter Pin 1/8
X
1
5
12063
Blade Brake
1
25X14
Cotter Pin 1/8
X
1-1/4
1
12067
Rear Hanger Rod
1
26X16
Rivet 1/4
X
1/2 Rd. Hd.
1
12093
Spring
1
31X9
Flange Whizlock Screw 3/16-18 x
12110
Mower Pan
1
1/2
2
12111.
Blade Brake Arm
1
31X11
Ribbed Neck Bolt 1/4-20 x 5/8
2
12112
, Height Control Arm
1
34X87
V-Belt
1
12113
■ Floating Link
1
40X26
Safety Label (Not Illustrated)
1
12114
Clevis
1
40X28
Discharge Caution Label (Not
Illustrated)
1
