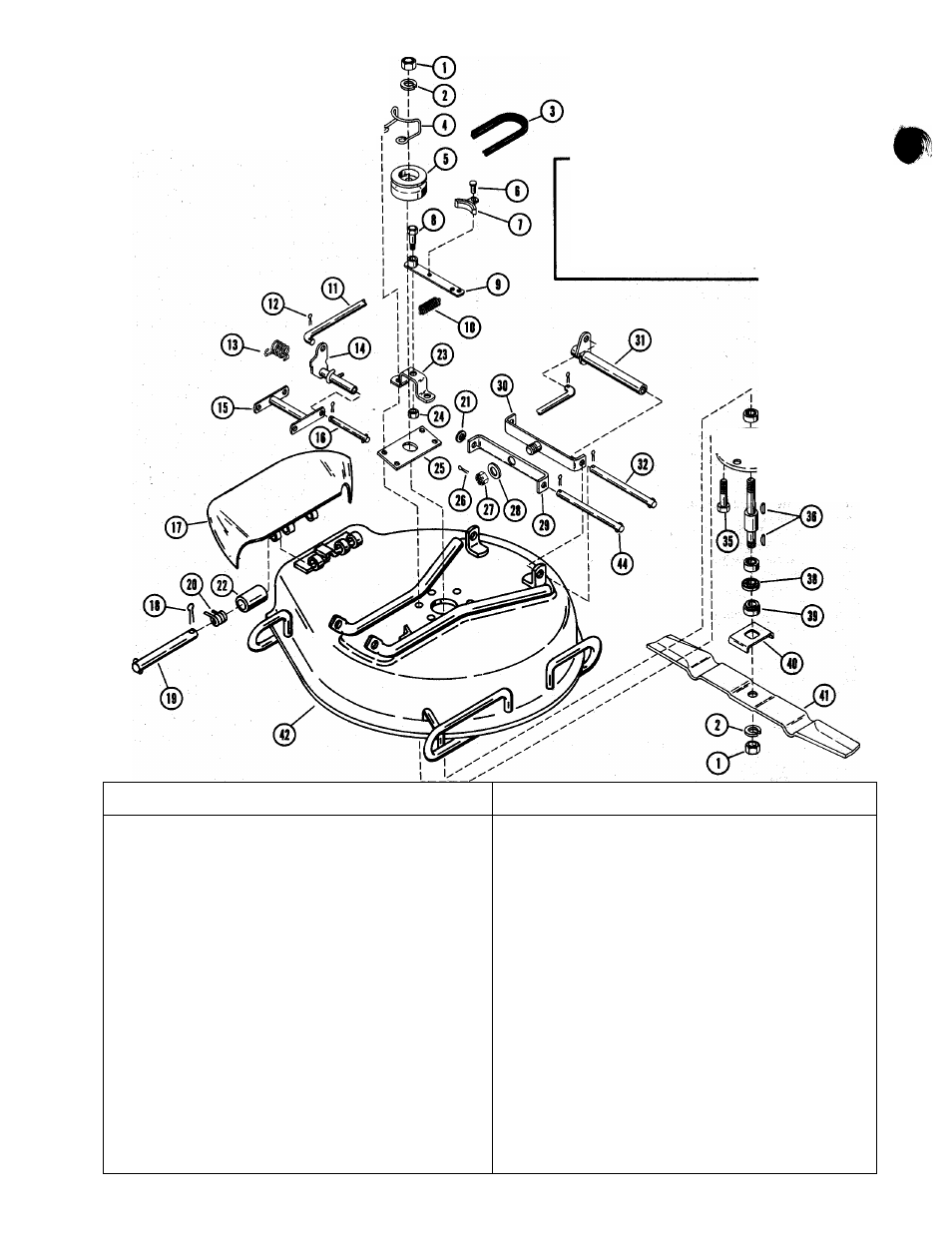

ORDER PARTS BY PART NUMBER
NOT BY REFERENCE NUMBER. ANY
PART ORDERED BY REFERENCE
NUMBER WILL BE DISREGARDED.
Ref.
No.
Part
No.
Description
---------
RoT
Req'd.
Ref.
No.
Part
No.
Description
No.
Req'd.
1
65025
Hex Jam Nut 3/4-10 Plated
2
23
12062
Blade Brake Support
1
2
63008
Lockwasher 3/4
2
24
65039
Locknut
7
3
72029
V-Belt
1
25
3117
Reinforcing Plate
1
4
12061
Mower Belt Finger
1
26
67014
Cotter Pin
1
5
12025
Mower Sheave
1
27
65049
Slotted Jam Nut 5/8-18
1
6
68016
Rivet 1/4 X 1/2 Rd. Hd.
1
28
64039
Washer 1.005 O.D. x .630 I.D.
X.062 1
7
12063
Blade Brake
1
29
12114
Clevis
1
8
3016
Shoulder Bolt
1
30
12115
Clevis
1
9
26066
Blade Brake Arm
1
31
12116
Rear Raising Bracket
1
10
83010
Spring
1
32
12059
Rear Bracket Pin
1
11
12214
Height Link Rod
1
33
54073
Bearing
2
12
67004
Cotter Pin 1/8x1
5
34
3172
Spindle Housing
1
13
83027
Spring
1
35
59004
Cap Screw 3/8-16 x 1 H.H.
6
14
26035
Height Control Arm
1
36
66003
Key, Woodruff #9
2
15
12113
Floating Link
1
37
3127
Mower Spindle
1
16
26078
Adapter Pin
1
38
3419
Bearing Slinger
1
17
25204
Pan Chute Extension
1
39
3169
Retainer Hub
1
18
67001
Cotter Pin
1
40
3170
Blade Tray
1
19
25205
Hinge Pin
1
41
3165
Mower Blade
1
20
83072
Spring
1
42
12221
Mower Pan
1
21
64003
Washer
1
43
64002
Washer
2
22
22029
Bushing
1
44
12067
Hanger Rod
1
