Husqvarna 954 00 03-32 - Manual (Page 5)

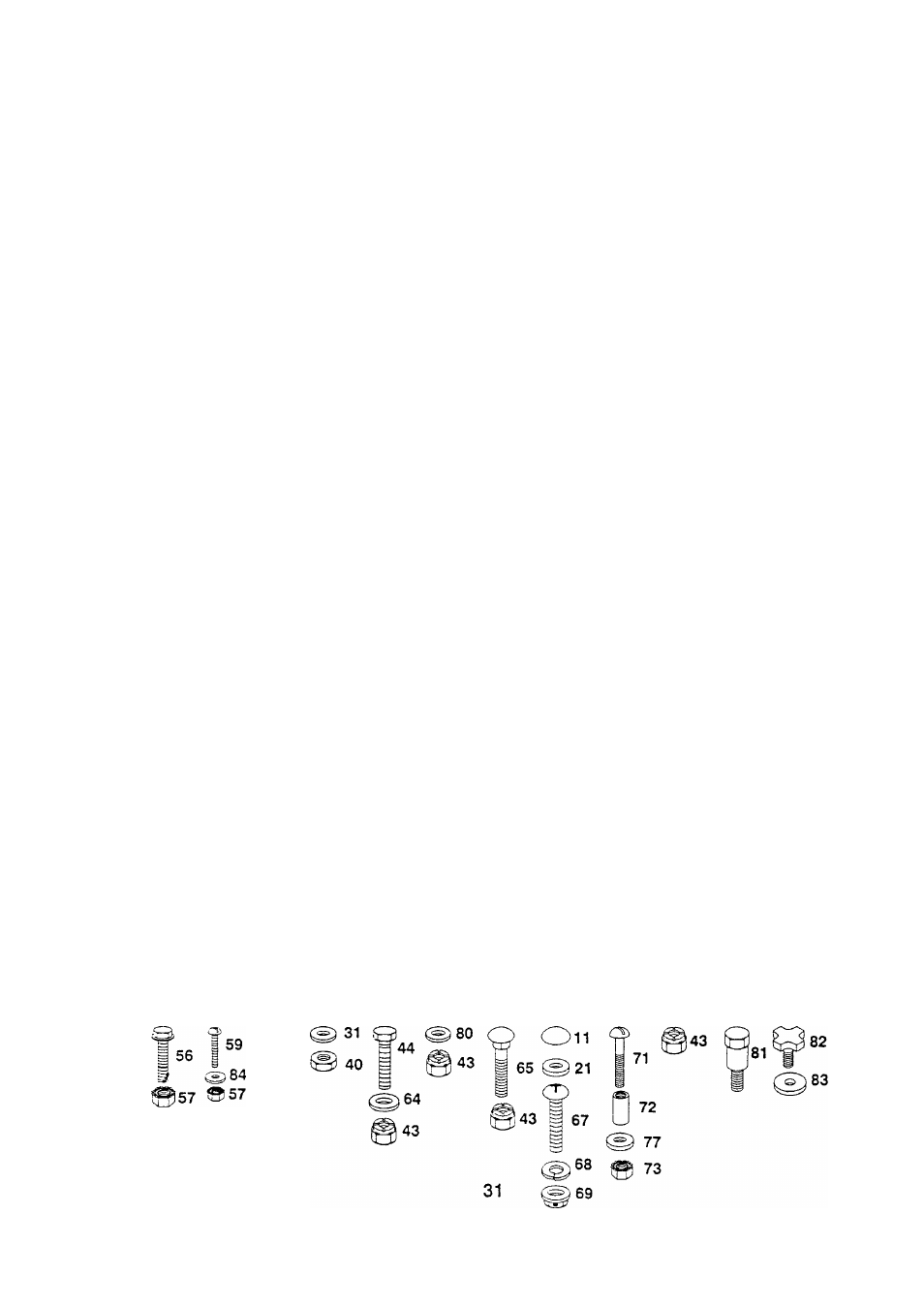

REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR
ENCLOSURES
- MODEL NO. LT125
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
1 810040400 Washer, Lock 1/4 53 817490608 Screw, Hex Washer Hd. Thd. Forming
2 873510400 Nut, Hex Keps 1/4-20
3/8-16 X 1/2 Type TT
3 532124905 Panel, Side L.H.
54 532124294 Pan, Seat
-4 532124948 Plate, Dashboard
55 817431008 Screw, Hex Head Self Tapping
5 532124182 Dashboard
#10-16 X 1/2 Type B
6 532104783 Dash, Lower 56 874780512 Bolt, Hex 5/16-18 X 3/4 Gr. 5
7 532127321 Grill Assembly
57 873510500 Nut, Keps 5/16-18
8 532106965 Plate, Support, Battery
58 532105509 Bracket Assembly, Fender
9 532124130 Support Assembly, Dash 59 874180512 Screw, Truss Hd. 5/16-18 x 3/4
10 532104915 Foam, Strip
62 532121441 Guide, Belt, Lower, Engine, Pulley,
11 532110356 Cap, Snap
R.H.
12 532106784 Strap Assembly, Hinge, Rear
63 532121794 Cover, Access
13 532104618 Strap Assembly, Hinge, Front
64 819132012 Washer 13/32 x 1-1/4 x 12 Ga.
14 532125007 Hood
65 872140606 Bolt, Carriage 3/8-16 x 3/4
15 532124250 Lens, L.H. 66 532108256 Pad, Footrest
16 532124251 Lens, R.H.
67 874191008 Screw, Cross Recess Pan Hd. Mach.
17 532121610 Bracket Assembly Frame Pivot L.H.
#10-24x1/2
18 532127324 Grill 68 810071000 Washer, Lock #10
19 532126025 Support, Grill Assembly 69 532125004 Nut, Weld
20 532110852 Bracket Assembly Frame Pivot R.H. 70 532109808 Latch, Hood
21 532110357 Washer, Snap Cap 71 874981020 Screw, Machine Cross Recess
22 532125063 Panel, Side, R.H.
#10 - 24 X 1 -1/4
23 532132071 Panel, Dash, R.H.
72 532007206 Spacer, Split #10 x 3/4
24 532124914 Footrest, R .H. 73 873731000 Nut, Keps #10-24
25 532131052 Chassis 74 532105511 Strap Assembly, Fender
26 532127866 Drawbar 75 532126656 Bracket, Pivot, Seat
27 532132072 Panel, Dash,L.H. 76 532105529 Bolt, Shoulder
28 532124899 Footrest, L.H.
77 819070818 Washer 7/32 X 1/2 X 18 Ga.
29 873680500 Nut, Crownlock 5/16-18
79 532124996 Clip, Fuel Line
0 532124771 Saddle
80 819131614 Washer 13/32 x 1 x 14 Ga.
-.1 819091216 Washer 9/32 x 3/4 x 16 Ga. 81 532127018 Bolt, Shoulder 5/16 x 18 UNC x .62
32 532121440 Guide, Belt, Lower, Engine Pulley, LH. 82 532120068 Knob -1/2
33 532124720 Bushing, Steering
83 819171912 Washer 17/32 x 13/16 x 12 Ga.
34 532106202 Reflector. Taillight 84 819111116 Washer 11/32 x 11/16 x 16 Ga.
36 532124185 Seat
88 872170410 Bolt Carriage 1/4 - 20 x 1-1/4
37 532125157 Fender 90 532121251 Foam Strip
39 532124181 Spring,Seat
91 532121250 Spring
40 873220400 Nut, Hex 1/4-20
92 532121249 Spacer
41 874760612 Bolt, Hex 3/8-16x3/4 93 532121246 Bracket, Switch Mount
42 819131312 Washer 13/32 x 13/16 x 12 Ga.
94 532121248 Snap Bushing
43 873680600 Nut, Crownlock 3/8-16
95 532123198 Wing Nut 1/4-20
44 874760616 Bolt. Hex 3/8-16x1 96 532123976 Nut, Hex Large Flange Lock
46 532121235 Spacer 103 532124763 Pointer, Height Indicator
47 817490612 Screw, Hex Washer Hd. Thd. Rolling
104 532120529 Washer, Nylon .44 x .75 x .032
3/8-1 6 X 3/4 Type TT
105 532131127 Tie, Cable
48 874760440 Bolt, Hex Fin, 1/4-20x2-1/2
106 532005479 Plug, Button
49 532123481 Bolt, Shoulder 1/4-20
107 532128953 Shield, Heat
50 873680400 Nut, Crownlock 1/4-20 108 817021008 Screw, Tap Hex #10-24 x 1/2
51 874760620 Bolt, Hex 3/8-16 X 1-1/4
52 873510600 Nut, Keps 3/8-16 NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
S U V W X Y Z AA BB CC EE FF
^95
