TROY-BILT® Roto Tiller-Power Composter—TUFFY™ MODEL Page 9
BOLO TINES, WHEELS
Index
No.
1
2
3
4
7
8
9
Part
No. Description
No.
Req’d
9711 BOLT—Hex Head, %-16 x 1”, Grade 5, Tine Mounting .. 16
50049-01 BOLO TINE—Single, RIGHT HAND tine used on
left side of tiller. Includes mounting
hardware: two #9711 bolts (Index No. 1),
two #9913 lockwashers and two 9802 hex nuts
(these last two items replace Index No. 3).................................. 8
9807 LOCKNUT—Hex, %-16..................................................................... 18
9555 BOLT—Hex Head, %-16 x 1%" (tine holder
to tiller shaft)............................................................................ 2
50049-02 BOLO TINE—Single, LEFT HAND tine used on right
side of tiller. Includes mounting hardware:
two #9711 bolts (Index No. 1), two #9913
lockwashers and two #9802 hex nuts (these last
two items replace Index No. 3)................................................... 8
55019 TINE HOLDER—for bolo tines, left and right sides........................... 2
1901 REPLACEMENT SET OF 16 BOLO TINES—
including eight right hand tines, eight left
hand tines; and all required assembly hardware.........................
1

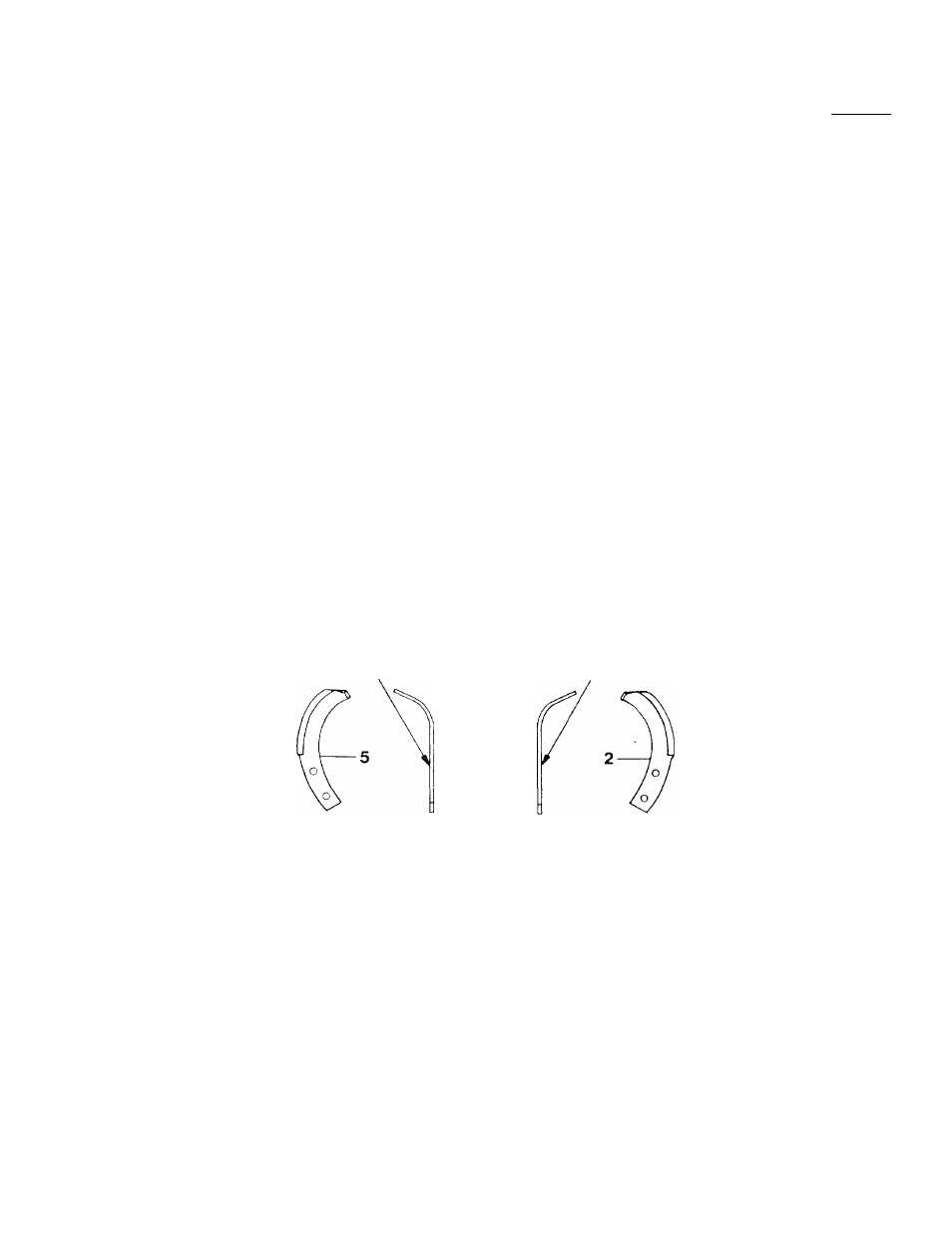

BLUNT END TOWARDS YOU
55095-01
55095-02
9380
10 9338
LEFT HAND TINE RIGHT HAND TINE
WHEEL & TIRE ASSEMBLY—Left side................................................ 1
WHEEL & TIRE ASSEMBLY—Right side............................................... 1
CLEVIS PIN—.312"
X 1%", secures wheel hub to
wheel shaft................................................................................... 2
HAIR PIN COTTER........................................................................... 2
IMPORTANT: Left and right sides of tiller are determined by
standing in the operator position and facing the direction
of forward travel.
