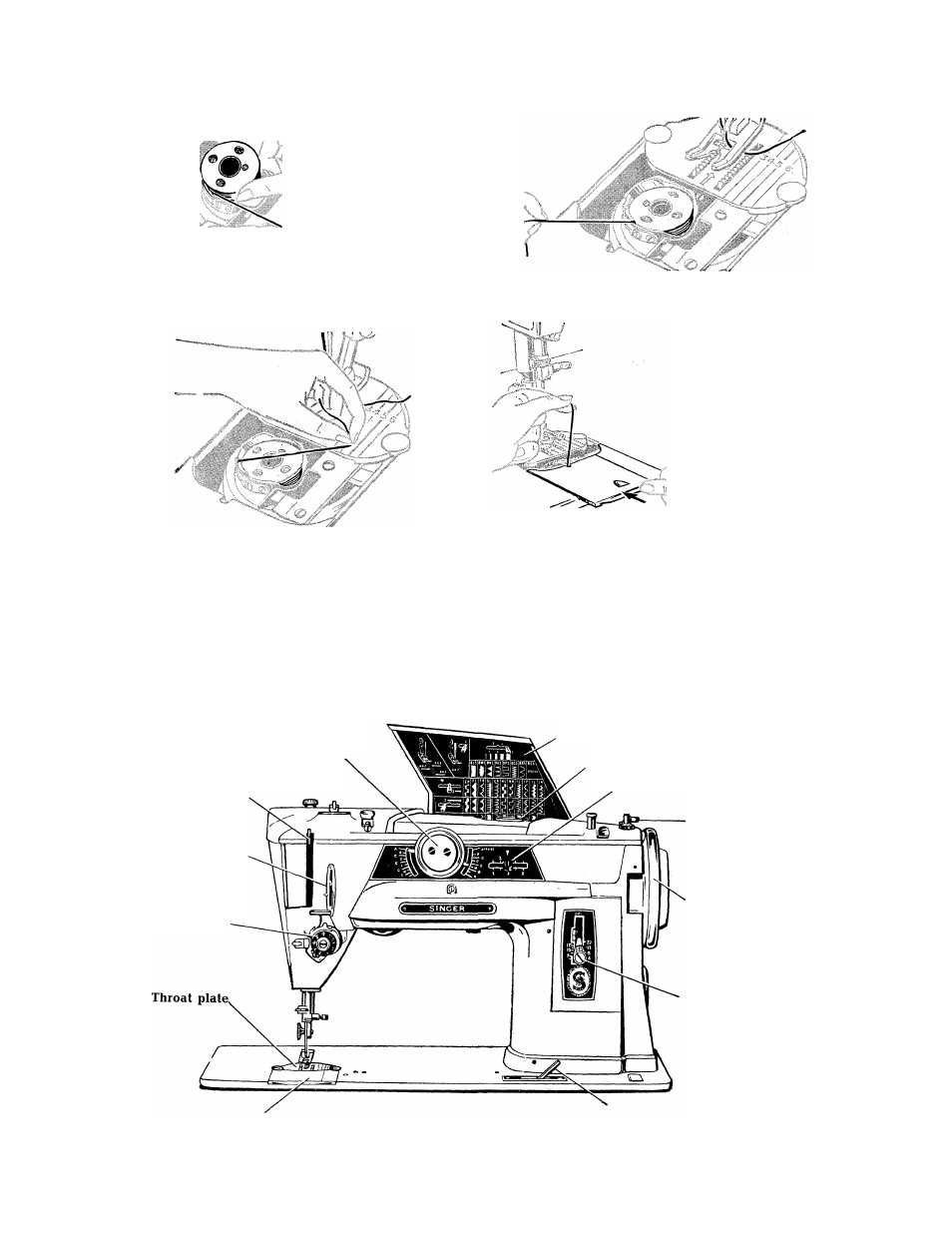

THREADING THE BOBBIN CASE
I
Hold bobbin so that thread leads off in direction shown. Place bobbin in case. Lead thread into slot
and under spring.
X.
Draw thread into notch at end of spring, pulling off about 3 inches of thread across the bobbin.
Close slide plate allowing thread to enter notch.
15
PRINCIPAL PARTS OF MACHINE 401
Stitch Selector
Stitch chart
Take-up Lever
Special disc
Red Lever
Automatic
thread control
Needle thread
tension
Bobbin
winder
Hand
wheel
Stitch
regulator
Slide plate
Throat plate positioning lever
