REMOVING AND REPLACING LIGHT BULB
This machine is designed to use a 15-
watt maximum light bulb.

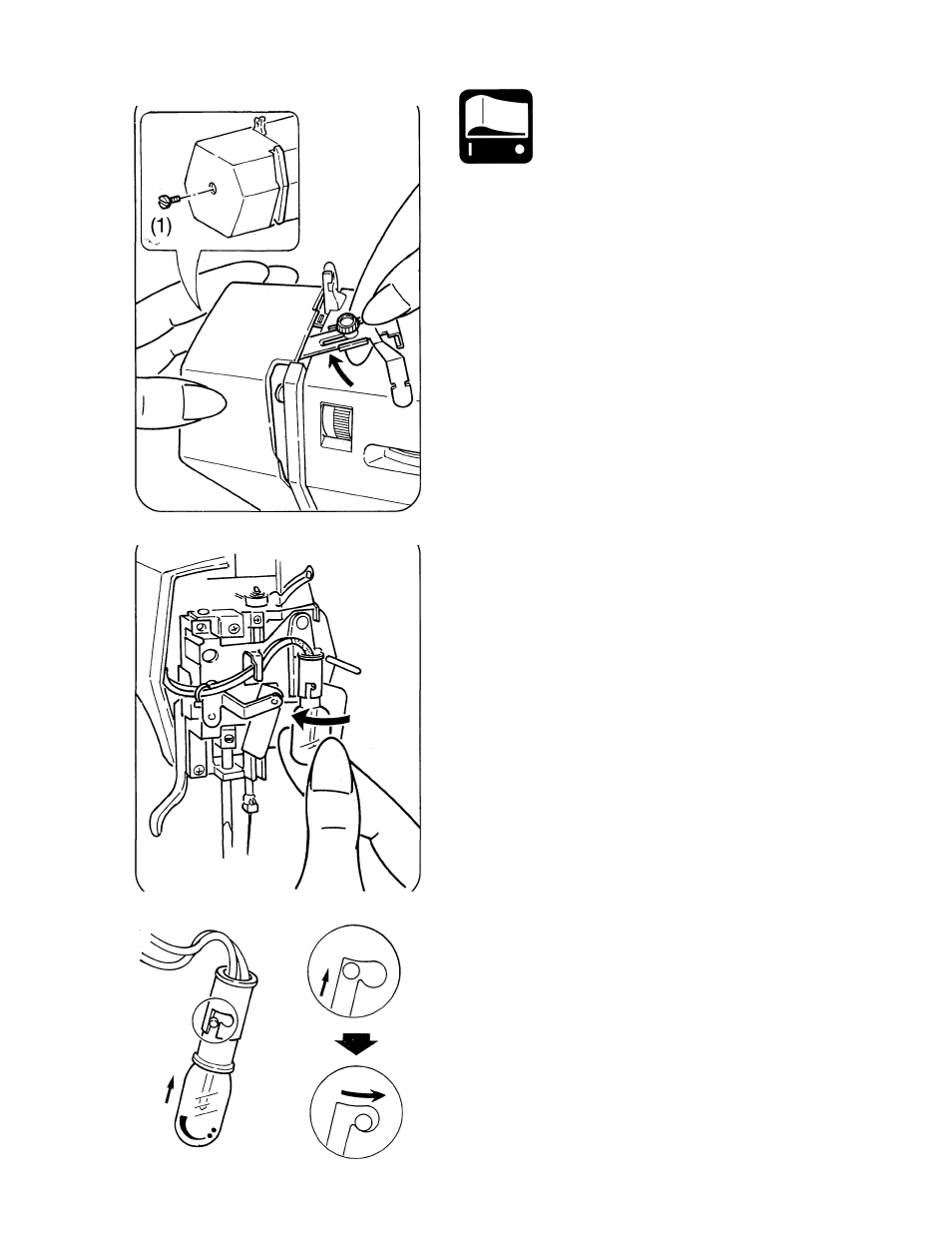

Loosen and remove screw (1).
Insert zipper foot into
top slot to open face plate
(as illustrate).
TO REMOVE LIGHT BULB
Push bulb up into socket and turn to the
left to unlock bulb pins.
Pull bulb down and out of socket.
TO REPLACE LIGHT BULB
Push new bulb up into socket and turn to
the right until pins lock position.
Reposition face plate
Insert screw and tighten.
24
