WHITE SEWING MACHINE COMPANY
Installing Sewing Head in Portable Case
Please read these important instructions
which were written to aid you in placing
your new sewing machine in its portable
case.
First, remove the foot control which is
fastened Inside the base to avoid damage
In shipping. After unpacking the sewing
machine unit, being certain to take out the
instruction
book, guarantee and
accessory.box, lay the unit face down on a
table. You will see two clamping screws A
entering head hinge holes B on the
underside of the back.
On the base you will find two head hinges
C which will fit into holes B. Lower the
base onto the sewing machine fitting
hinges C into holes B. Tighten screws A
securely with a screw driver.
PORTABLE BASE
c
1
A^'%
..-pel----------
A
UNDER SIDE OF
MACHINE

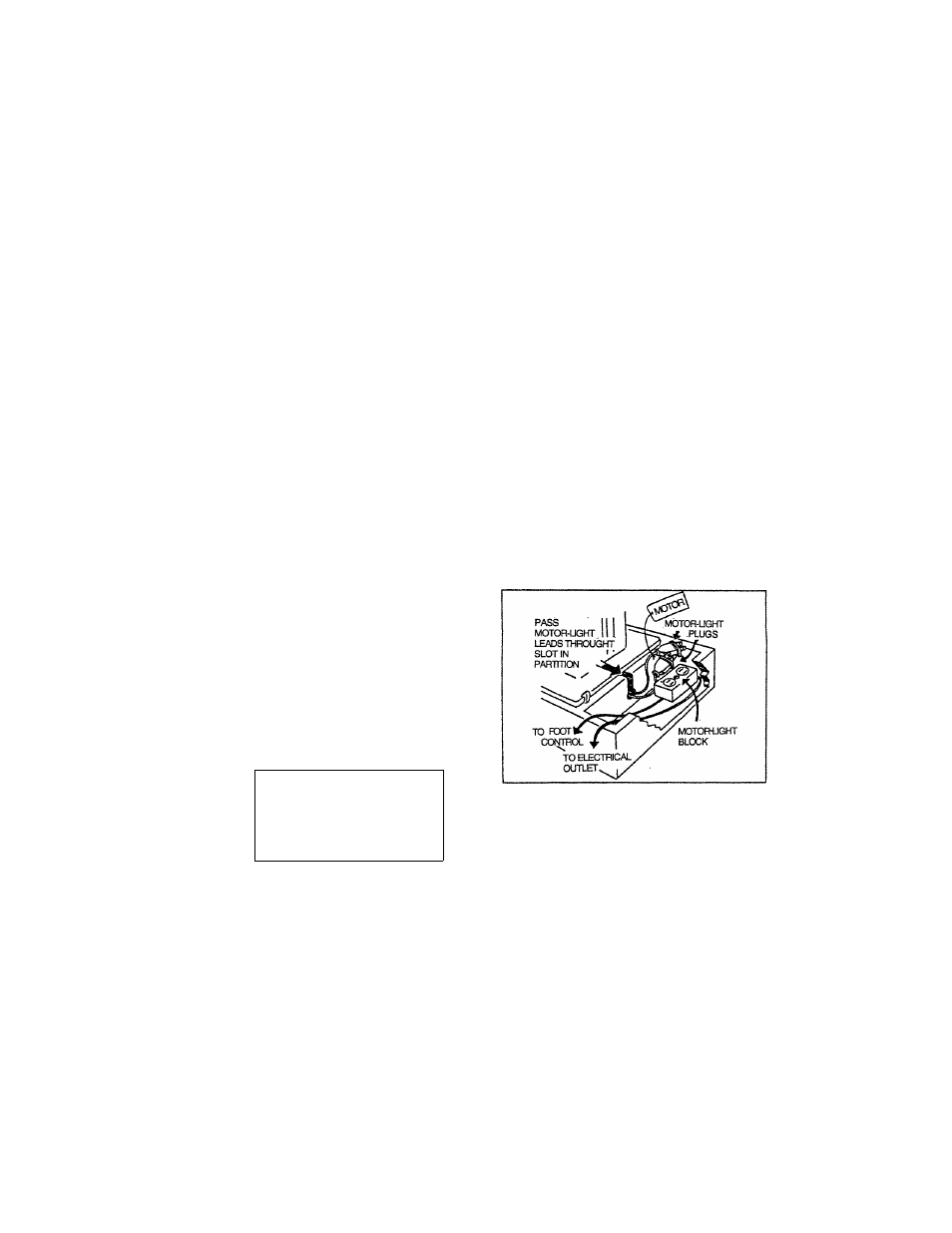

To make the electrical connection draw the
two wires through the. slot in the partition
of the base. Plug the cord labeled "Motor"
into the receptacle marked "Motor" on the
block attached to the outer section of the
base. Then insert the other cord into the
"Light" receptacle.
Place the foot control on the floor, insert
plug into a wall outet (110-115 volts) and
you are ready to sew. But first read the
instruction book to become familiar with
the threading of the machine, tension
adjustments and all the other features
designed to make sewing a pleasure.
