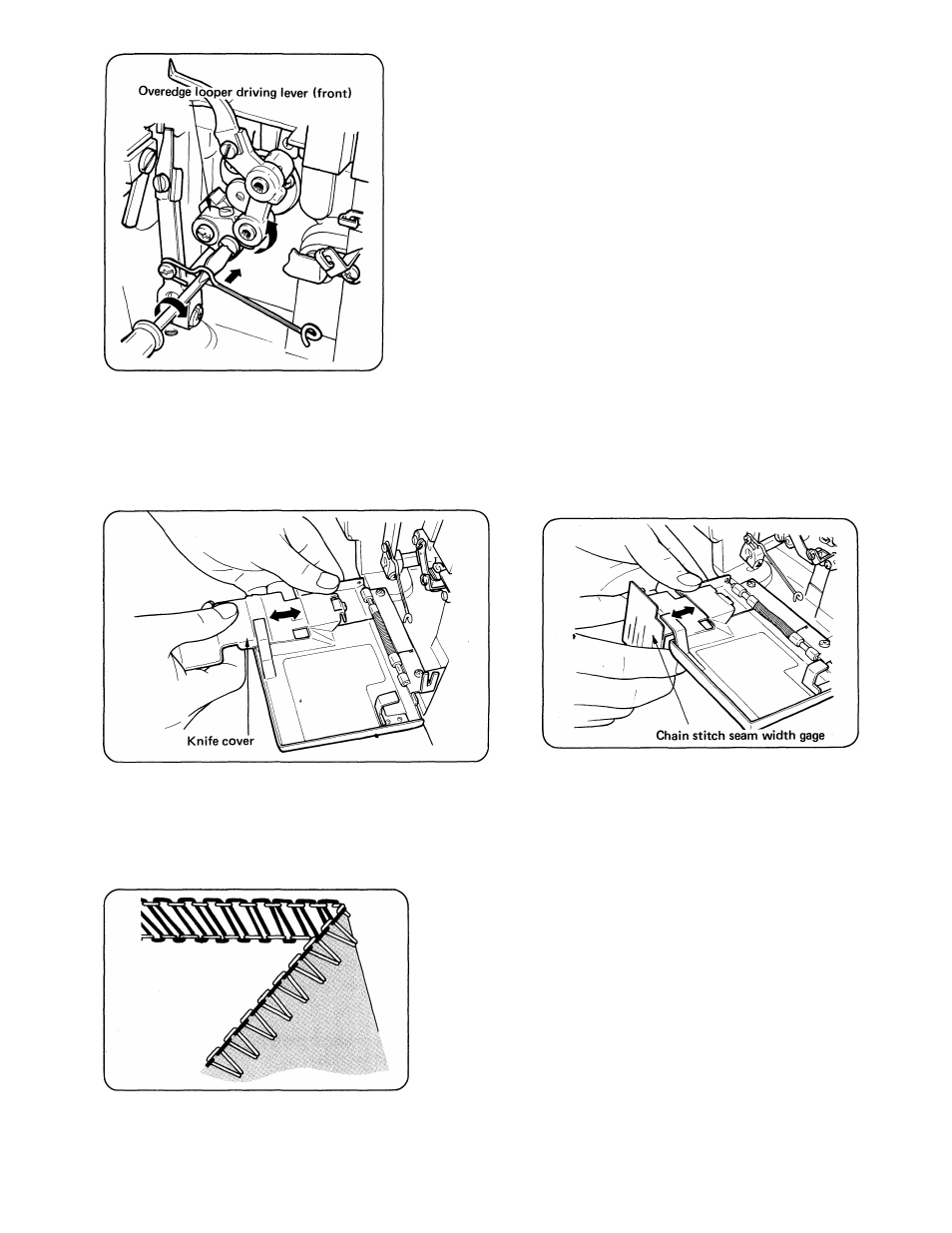

To re-engage overedge looper, lift overedge looper driv
ing lever (front) up as far as it will go as shown in figure
and while pressing the overedge looper lock screw
tighten it in the direction of arrow shown in figure
at left.
When sewing with movable knife in non-operating position, sewing can be performed more conveniently by
installing the chain stitch seam width gage in place of the knife cover.
3. Overedge Stitch Formation
Attractive overedge seams can be obtained when needle
thread for overedge and looper thread for overedge are
used.
(Application) Overedging of suit, blouse, slacks, etc.
12
