REMOVING AND REPLACING BOBBIN CASE
(To clean stitch forming mechanism)
33
Raise needle and presser foot.
Draw slide plate to the left.
Remove bobbin from case.

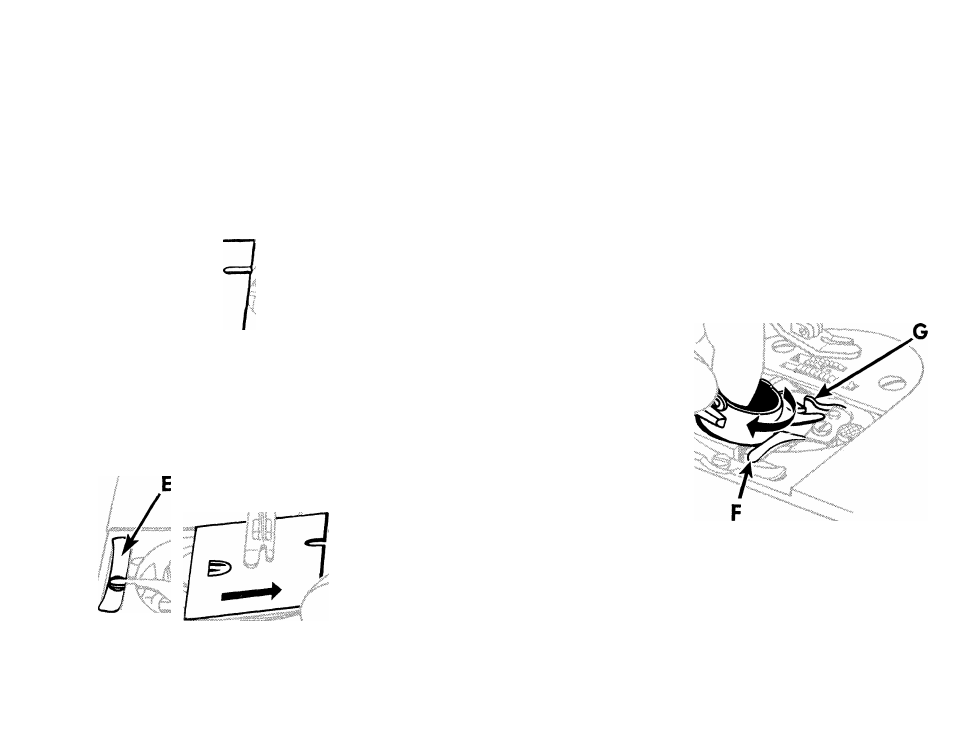

Lift edge of slide plate and draw it to the
right until it is disengaged from spring
E.
Lift and move latch
F
to position shown.
Grasp bobbin case as shown.
Tilt case to the left to raise the forked end
above bracket
G.
Turn forked end toward you, then lift out
bobbin case.
