3.

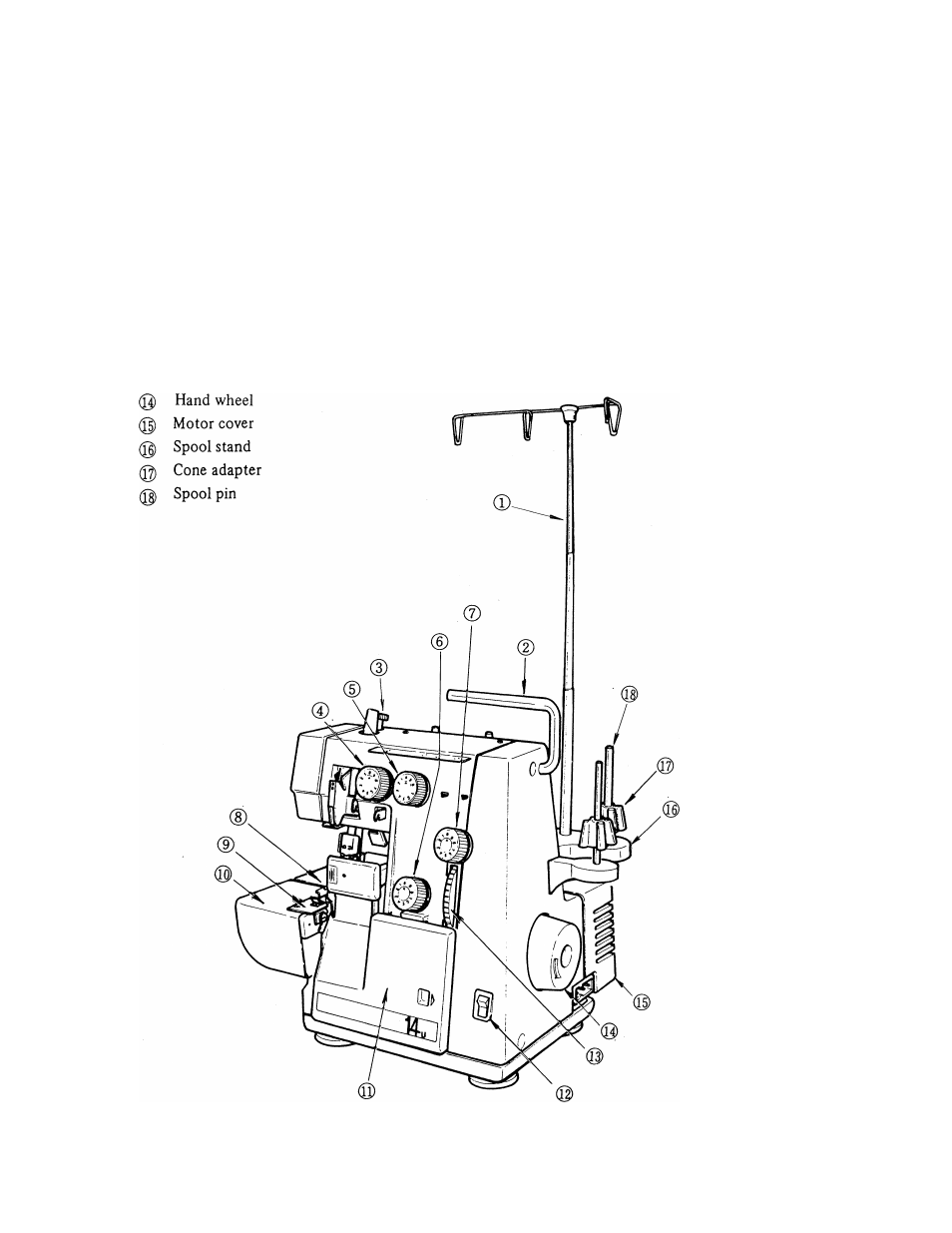

PRINCIPAL PARTS
® Thread guides and holder
® Handle
(3) Pressure regulating screw
(4) Left needle thread tension dial (blue)
(5) Right needle thread tension dial (green)
(6) Upper looper thread tension dial (orange)
(7) Lower looper thread tension dial (yellow)
(D Flip and sew convertible bed plate
® Throat plate
® Free arm/cylinder cover
® Looper cover
® Power & light switch
® Stitch length dial
