30. LOWER TEIMSION ADJUSTMENT

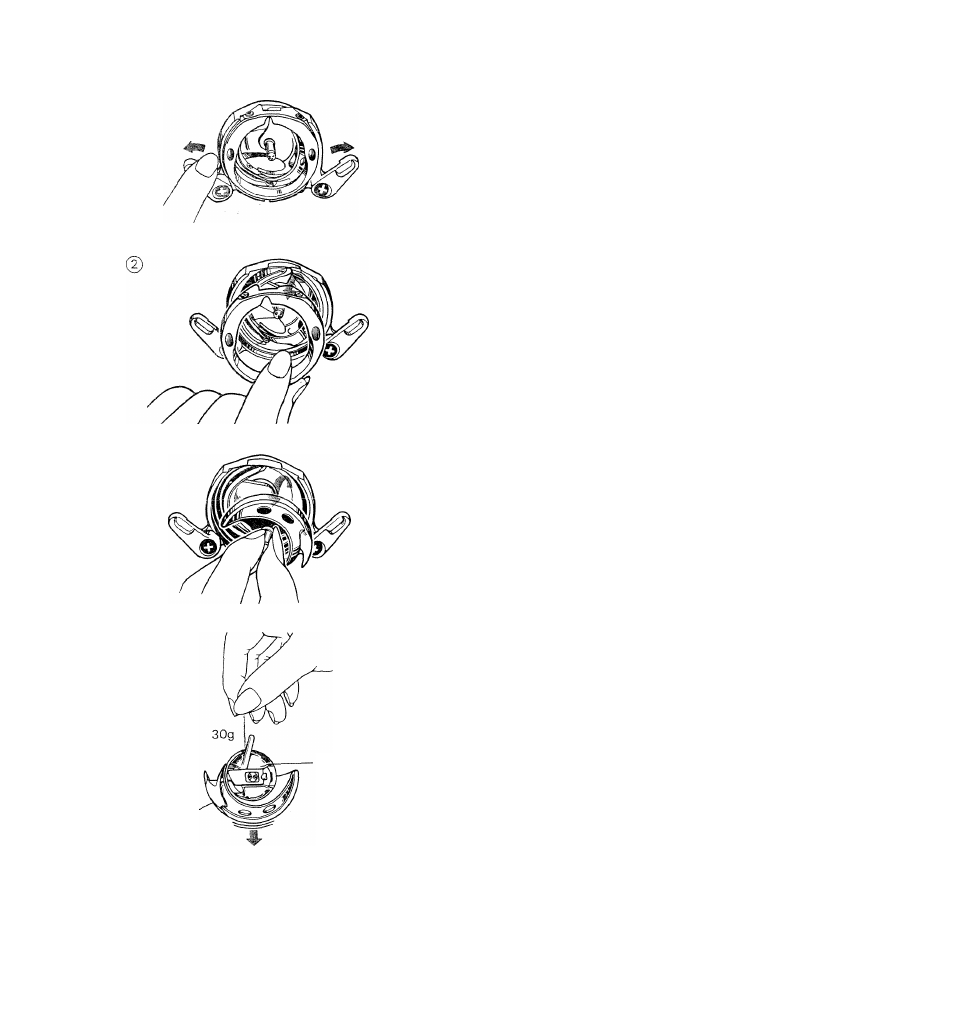

Push latches towards outside.
Remove shuttle cover
Remove shuttle
shuttle
bobbin and
bobbin case
all of them descend with light resistance
In case of skipping stitch or loop stitch, your
machine is not out of order.
To check bobbin thread tension, suspend
bobbin, bobbin case and shuttle all together
by thread as illustrated.
Move back and forth vertically (like yo yo).
always use original bobbin.
Then it is easy to adjust upper tension on the
numbers 4, 5, 6.
Sfe-:
-
44
-
