REFERENCE ILLUSTRATIONS

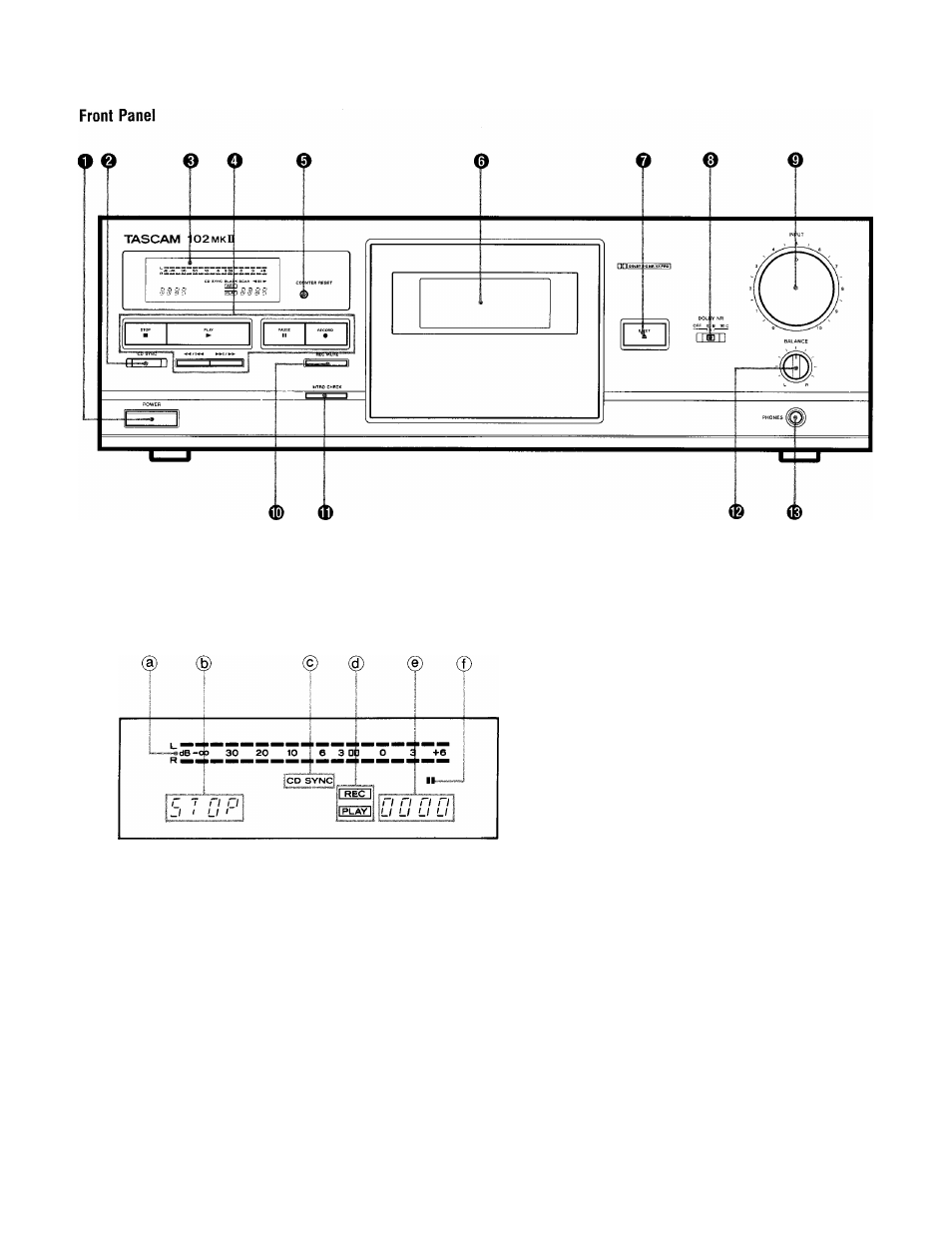

Display
CONNECTIONS (Fig. 1)
* •
• Turn off power for all equipment before
making connections.
• Read instructions of each component
you intend to use with the deck.
OUTPUT terminals
OUTPUT Terminals on the tape deck
should be connected to the TAPE PLAY or
LINE IN jacks on the amplifier/receiver.
LINE IN terminals
LINE IN Terminals on the tape deck
should be connected to the REC OUT jacks
on the amplifier/receiver.
Power cord
Be sure to connect the power cord to an
AC
outlet
which
supplies
the
correct
voltage, as set bythe voltage selector.
IN NORTH AMERICA USE ONLY ON 120 V SUPPLY.
DANS L'AMERIQUE DU NORD: UTILISABLE SUR 120 V
D'ALIMENTATION UNIQUEMENT.
