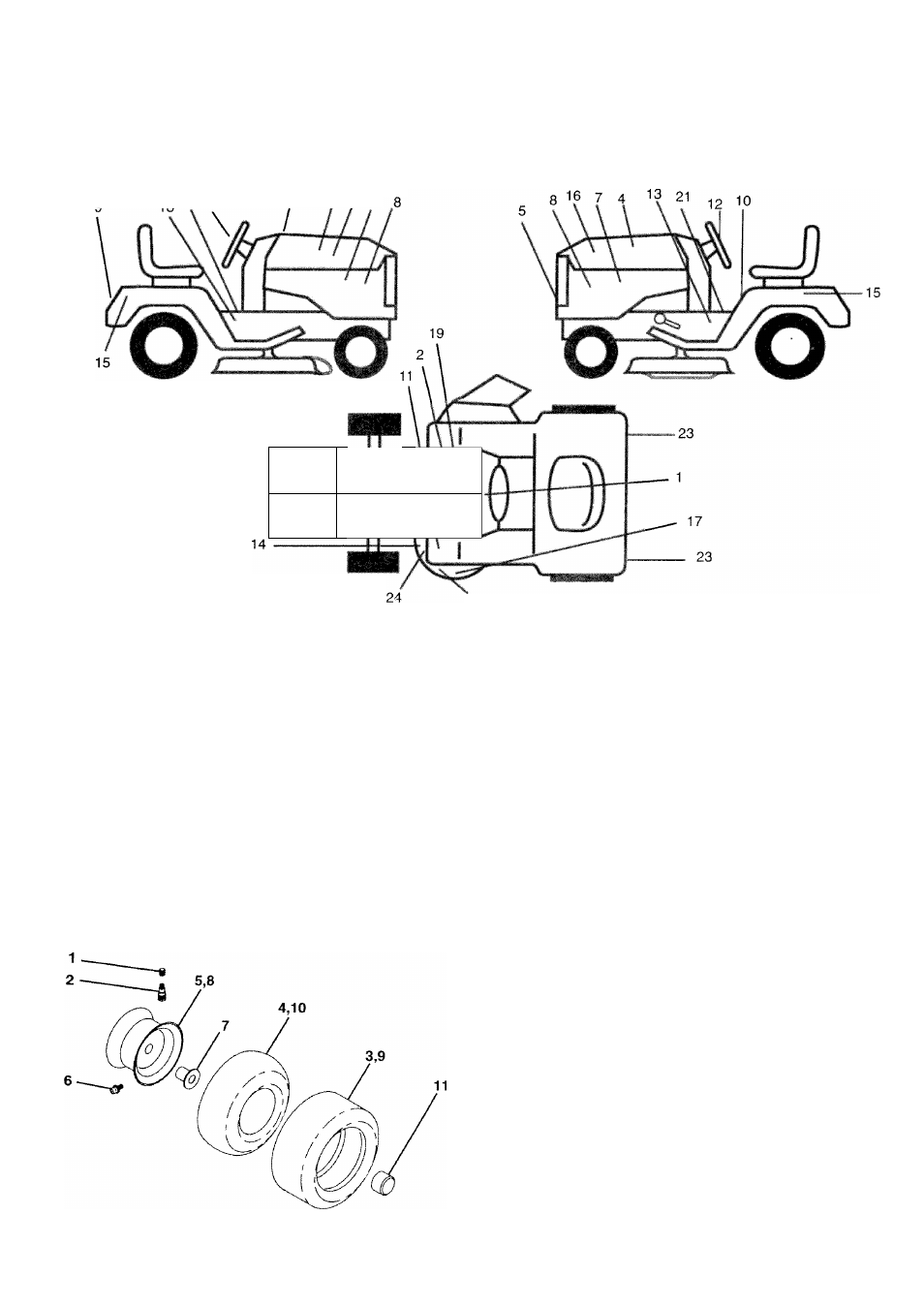

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.252714
22 18
6
^
7
20-
\ V
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
1
138955
Decal, Operating Instruction
17
133179
2
149516
Decal, Battery Dngr/Psn Acme Eng
18
146710
3
146705
Decal, Hood, Craftsman, RH
19
138047
4
146706
Decal, Hood, Craftsman, LH
20
52-113-50
5
146708
Decal, Grille
21
140837
6
133644
Decal, Maintenance
22
142336
7
142243
Decal, Side Panel
23
106202X
8
138048
Decal, Side Panel
24
136832
9
146709
Decal, Fender, Craftsman
25
147142
10
137537
Decal, Caution
- -
138311
11 4900J
Decal, Clutch/Brake
- -
142341
12
150333
Decal, Cap Cnsmr Help Line
- -
137318
13
147138
Decal, Chassis 42"
- -
137319
14
146046
Decal, V-Belt Schematic
- -
145245
15
149918
Decal, Fender Auto Trans Srs Gold
- -
145247
16
147137
Decal, Ins. Hood
- -
152088
WHEELS &
TIRES
KEY
152089
PART
DESCRIPTION
Decal, Mower QC System
Decal, Insert Strg
Decal, Battery
Decal, Engine Craftsman Koh MV18
Decal Brake Parking Saddle
Decal, Sdl Cold Start Hydro Eng.
Reflector, Taillight
Decal V-Belt SHC
Decal Deck 3 in 1
Decal, Handle Lift Height Adj.
Decal, Drawbar Cntrl Mvt. Hyd Lt
Decal, Refi HL YT/GT 1-pc Sears
Decal, Refi HL YT/GT 1-pc Sears
Pad Ftrest
Fastener Pop-In Footrest
Manual, Owner's (Eng)
Manual, Owners (Span)
NO.
NO.
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Tire, Front
Tube, Front (Service Item Only)
Rim Assembly, Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel Only)
Rim Assembly, Rear
Tire, Rear
Tube, Rear (Service Item Only)
Cap, Axle
Sealant, Tire (10 oz. Tube)
1 59192
2 65139
3 106222X
4 59904
5 106732X427
6 278H
7 9040H
8 106108X427
9 122082X
10 7152J
11 104757X
--
144334
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
