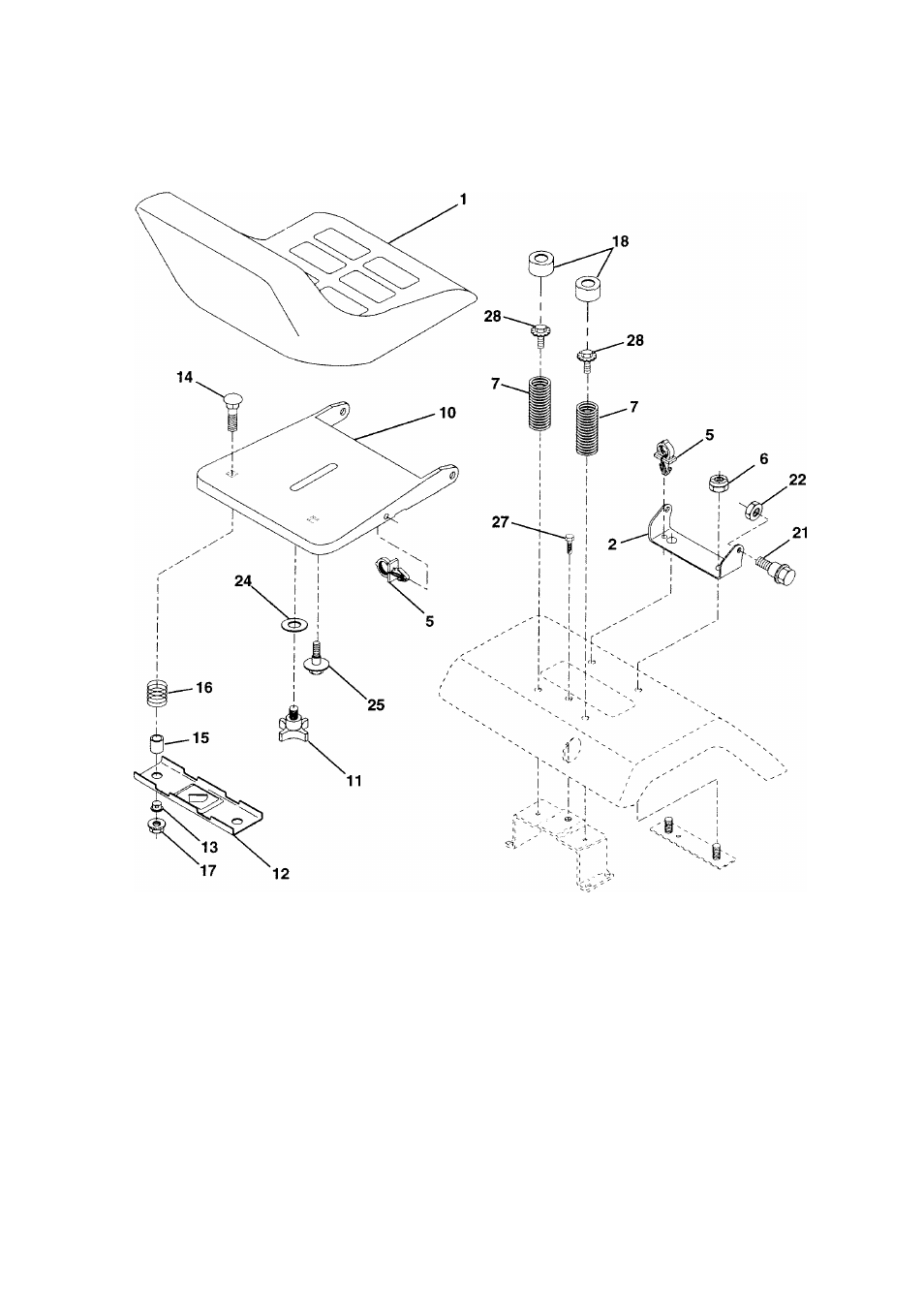

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.252714
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 140123 Seat 16 121250X Spring
2 140551 Bracket, Pivot, Seat 18 124238X Cap, Spring, Seat
5 145006 Clip Push-In, Hinged 17 123976X Nut, Flangelock 1/4 Grade 5
6 STD541437 Nut 21 139888 Bolt, Shoulder 5/16-18 UNC
7 124181X Spring, Seat 22 STD541431 Nut
10 140552 Pan, Seat 24 19171912 Washer 17/32 x 1 -3/16x12 Gauge
11 120068X Knob, Seat 25 127018X Bolt, Shoulder 5/16-18 x .62
12 121246X Bracket, Switch Mounting 27 17490608 Screw Thdrol. 3/8-16 x 1/2
13 121248X Bushing, Snap, Nylon 28 150176 Bolt 5/16-18 UNC X 3/4 w/Sems
14
15
72050411
134300
Bolt, Carriage 1/4-20 x 1-3/8
Spacer, Split NOTE: All component dimensions given in U.S. inches
42
