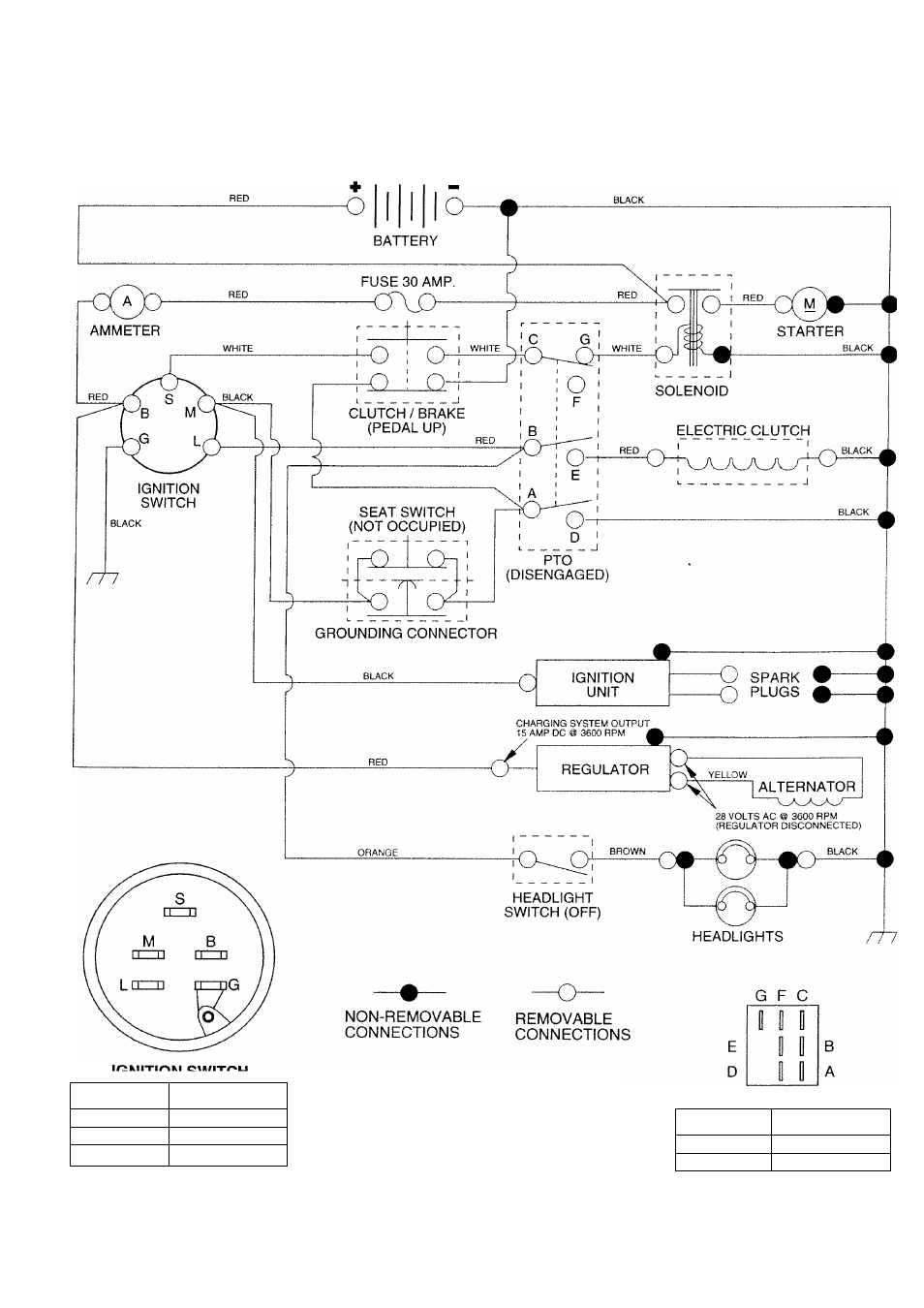

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.252714

POSITION

CIRCUIT

OFF

M + G

B + L

START

B + S + L

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING

PTO SWITCH

POSITION

CIRCUIT

OFF ■

C + G

C + F, B + E, A + D
