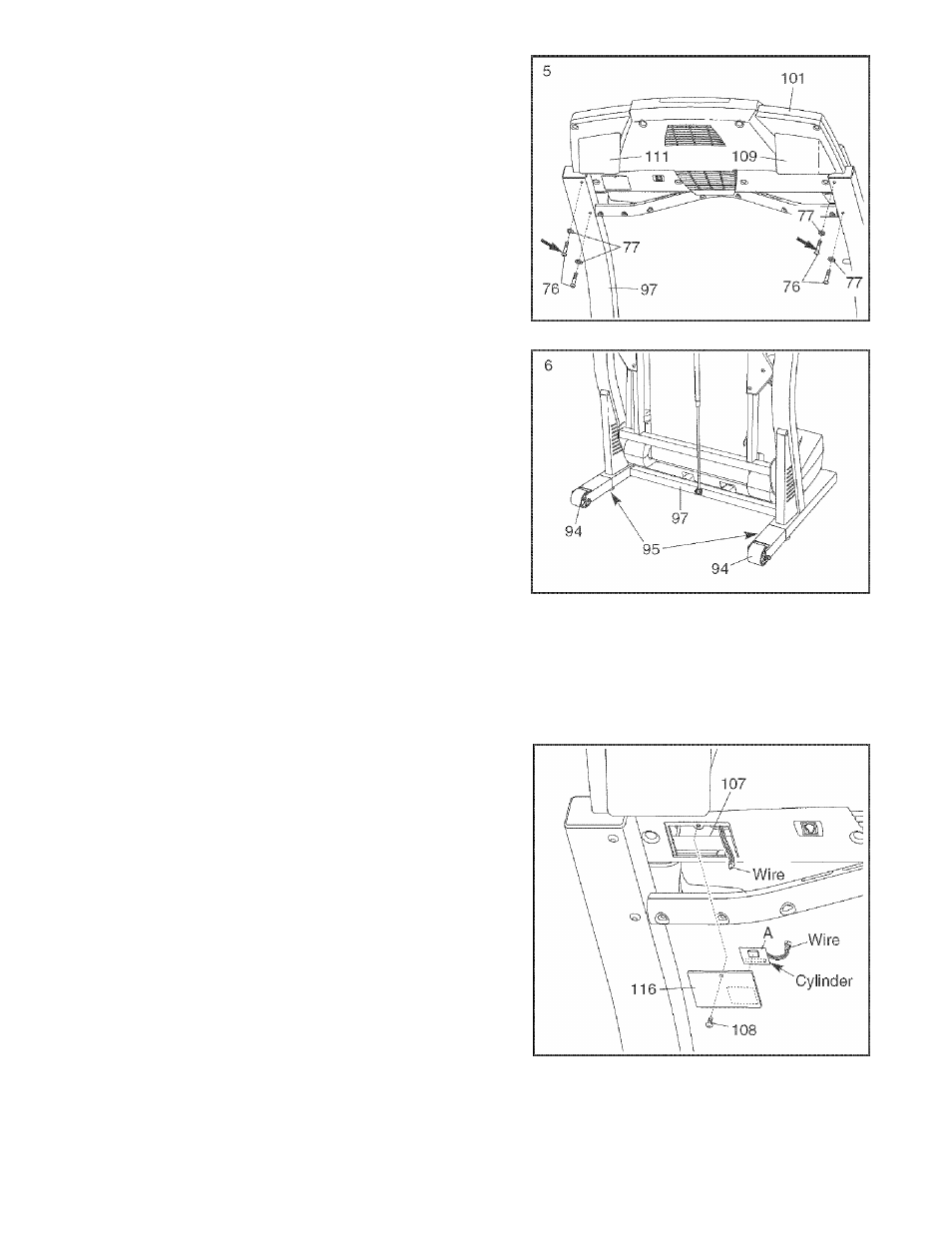

Set the Console Base (101) on the Uprights (97). Thread
the four Upright Bolts (76) with four Internal Star
Washers (77) into the Uprights and the Console Base.
Be careful not to pinch the Wires (not shown) in the
Uprights. Tighten the two Upright Bolts indicated by the
arrows first; then, tighten the remaining two Upright
Bolts.
Make sure that the Left and Right Trays (109,111) are
pressed into the Console Base (101).
6. Fold the treadmill to the storage position (see page 21).
If the Wheels (94) are resting on the floor, or if the tread­
mill rocks slightly, turn one or both of the Leveling Feet
(95) under the Uprights (97) until the Wheels are off the
floor and the rocking motion is eliminated. Note: If neces­
sary, tip the treadmill and use a phillips screwdriver to
turn the Leveling Feet.
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included alien wrenches in a secure place. The large alien wrench is used to adjust the
walking belt (see page 23). To protect the floor or carpet, place a mat under the treadmill. If there are thin
sheets of clear plastic on the decals, remove them.
If you purchase the optional chest pulse sensor (see
page 20), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (116).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin­
der is near the lower edge of the receiver and facing
the Console (107) as shown. Firmly press the Receiver
onto the indicated corner of the Access Door (116).
Connect the wire on the receiver to the indicated wire ex­
tending from the Console.
3. Make sure that no wires are pinched. Reattach the
Access Door (116) with the Screw (108). The wires in­
cluded with the receiver may be discarded.
