2. With the help of a second person, carefully tip the
Uprights (97) down as shown. (Note: It may be helpful to
place your foot on one of the Extension Legs [92] as you
tip the Uprights.) Make sure that the Extension Legs
remain in the Uprights.
Attach each Extension Leg (92) with two Extension Leg
Bolts (96) and two 1/4" Washers (39) as shown. Thread
a Leveling Foot (95) into each side of the Upright Base
(97): do not thread the Leveling Feet fully into the
Upright Base.
Attach the two Base Pads (99) to the Upright Base (97)
in the locations shown with two 1” Тек Screws (80).
With the help of a second person, raise the Upright Base
(97) to the vertical position.
Attach the Latch Assembly (82) to the Left Upright (84)
with the two Latch Screws (79); start both Latch
Screws before tightening either of them. Note: The
Latch Screws may be preattached to the Left Upright.

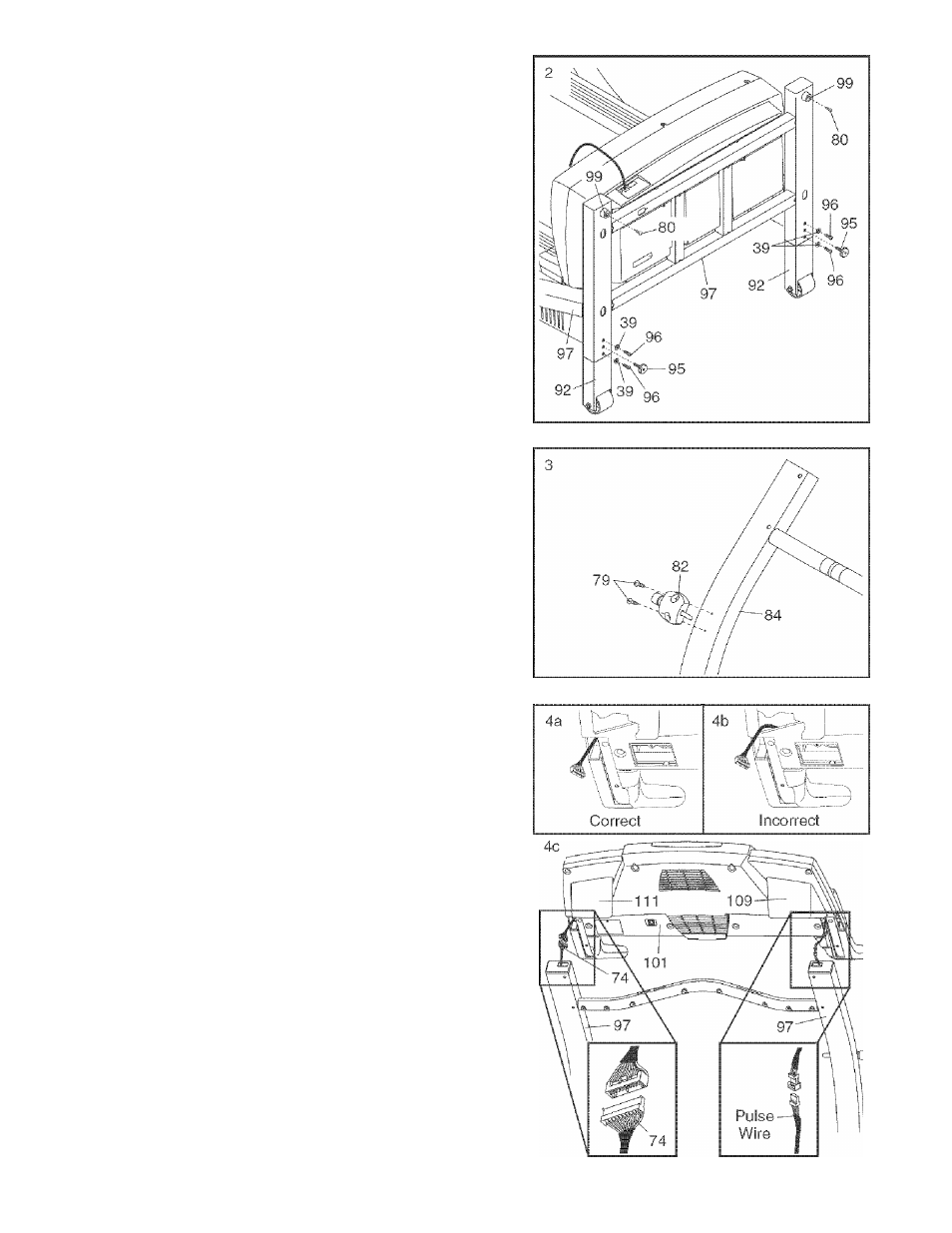

4. See drawing 4c. With the help of a second person, hold
the Console Base (101) near the Uprights (80, 84). Look
under the Console Base and locate the wires on the
sides of the Console Base. Make sure that the wires are
not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires.
Drawing 4b shows an incorrect route.
See drawing 4c. Cut the plastic ties holding the Wire
Harness (74) and the pulse wire in the Uprights (80, 84).
Locate the Wire Harness (74) and the pulse wire in the
Uprights (97). Connect the Wire Harness and the pulse
wire to the connectors on the sides of the Console Base
(101 ). Make sure to connect the connectors properly
(see the inset drawings). The connectors should
slide together easily and snap into place. If the con­
nectors do not slide together easily and snap into place,
turn one connector and try again to insert it. IF THE
CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Insert the excess Wire
Harness and pulse wire up into the Console Base.
