SERVICE AND ADJUSTMENTS
A
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
•
Depress
clutch/brake
pedal fully and set
parking
brake.
•
Place gearshift lever in neutral
(N)
position.
•
Place attachment clutch in “DISENGAGED” position.
•
Turn ignition key “OFF” and remove key.
•
Make sure the blades and all moving
parts
have completely stopped.
•
Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with
plug.
TRACTOR
TO REMOVE MOWER (See Fig. 19)
Mower will be easierto remove from the right side of tractor.
•
Place attachment clutch in “DISENGAGED” position.
® Move attachment lift leverforward to lower mowerto its
lowest position.
•
Roll belt off engine pulley.
•
Disconnect clutch rod from clutch lever by removing
retainer spring.
® Disconnect anti-sway bar from chassis bracket by
removing retainer spring.
•
Disconnect suspension arms from rear deck brackets
by removing retainer springs.
•
Disconnect front links from deck by removing retainer
springs.
•
Raise lift lever to raise suspension arms. Slide mower
out from under tractor.
IMPORTANT:
IF
AN ATTACHMENT OTHER
THAN
THE
MOWER IS TO BE MOUNTED TO THE TRACTOR,
REMOVE THE FRONT LINKS.
TO INSTALL MOWER (See Fig. 19)
•
Raise attachment lift lever to its highest position.
•
Slide mower undertractor with discharge guard to right
side of tractor,
•
Lower lift lever to its lowest position.
•
Install mower in reverse order of removal instructions.

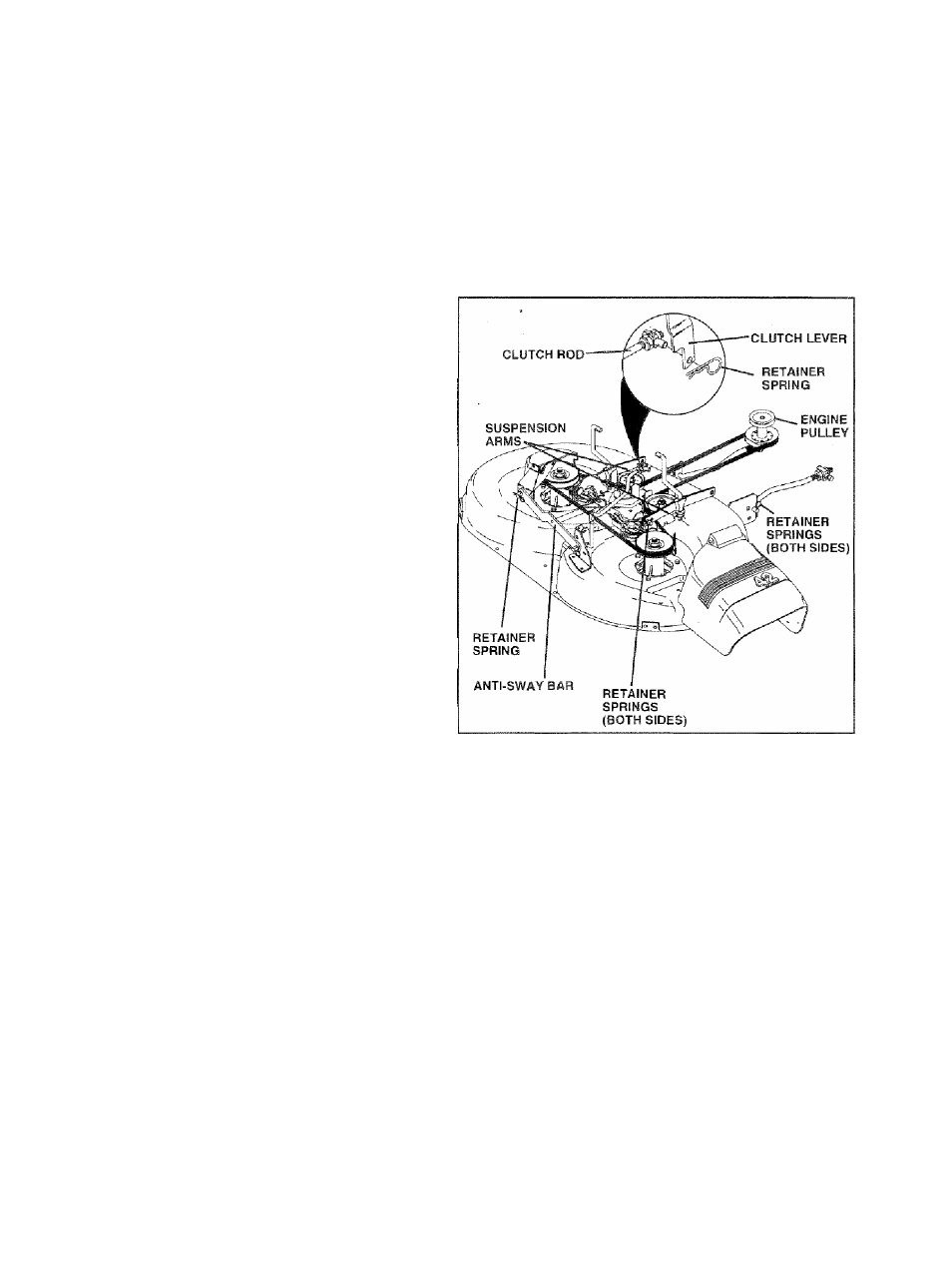

FIG. 19
