ACCESSORIES ÄND ATTACHMENTS
These accessories and attachments were avaitable through most Sears retail outlets and service centers when the tractor was purchased.
Most Sears stores can order these items for you when you provide the model number of your tractor,

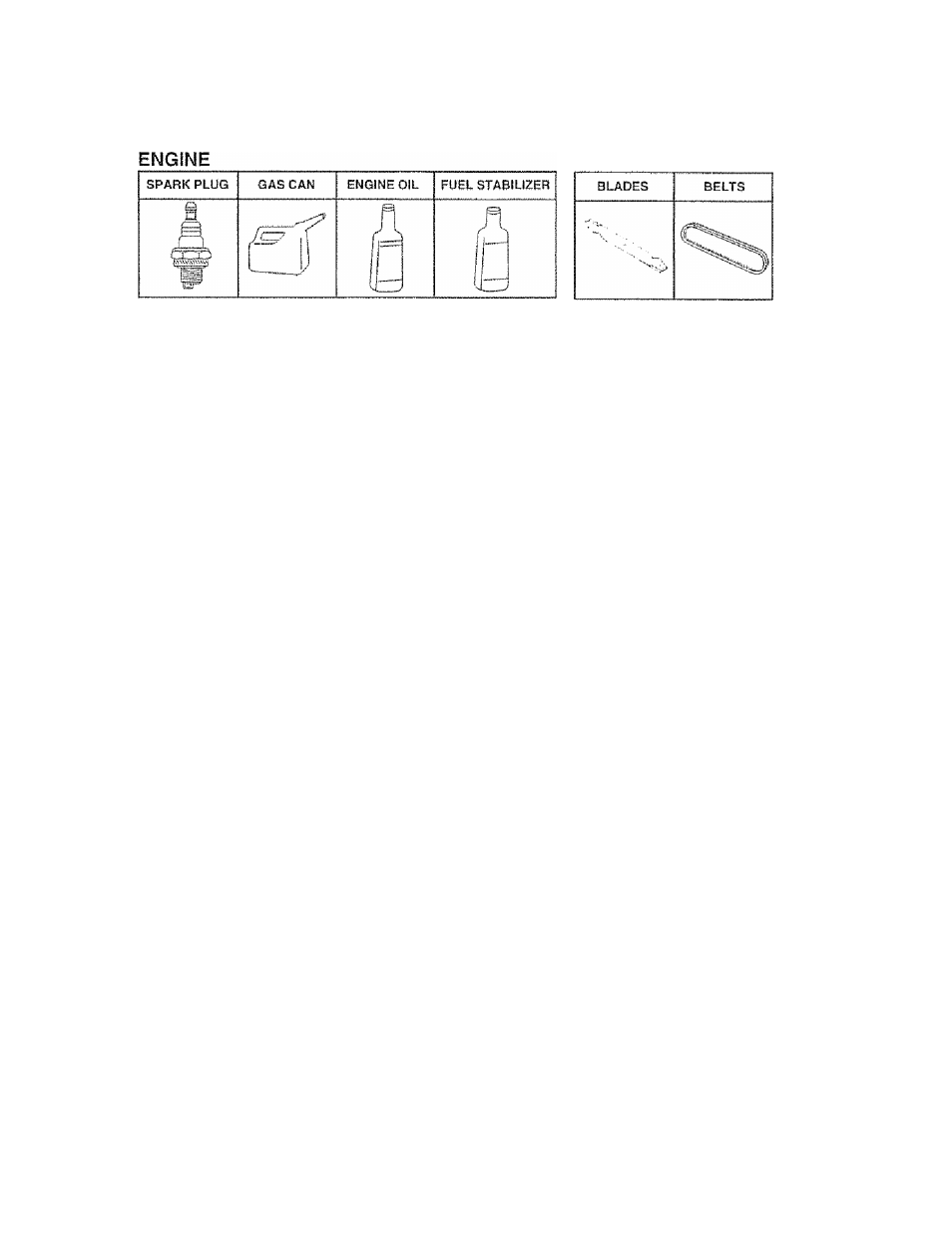

MAINTENANCE
p e r f o r m a n c e
Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help
you. This list was current at the time of pubiication; however, If may change in future years - more attachments may be added, changes
may be made in these attachments, or some may no longer be available or fit your model, Contact your nearest Sears store for the
accessories and attachments that are available for your tractor.
Most of these attachments do not require additional hitches or conversion kits {those that do are indicated) and are designed for easy
attaching and detachlng.
AERATOR promotes deep root growth for a healthy lawn Ta­
pered 2-5-inch steel spikes mounted on 10-inch diameter discs
puncture holes in soil a! close intervals to let moisture soak in
Steel weight tray for increased penetration
BAGGER lets you collect grass dippings and leaves for a
healthier, neater looking iawn. Two Permanex containers hold
30-gallon plastic bags.
BUiyiPER protects front end of tractor from damage
CARTS make hauling easy Variety of sizes available, plus
accessories such as side panel kits, tool caddy, carl cover,
protective mat and dolly
CORING AERATOR lakes small plugs out of soil io allow mois­
ture and nutrients to reach grass roots, 36-inch swath 24
hardened steet coring tips 150 ib- capacity weight tray,
EASY OIL CRAIN VALVE makes of! changes easier, faster
FRONT NOSE ROLLER canters in front of mower deck to reduce
chances of "scalping* on uneven terrain,
GANG HITCH lets you tow 2 or 3 puil-behind attachments a! once,
such as sweepers, dethatchers, aerators (not for use with rollers,
carts or other heavy attachments),
GAUGE WHEELS on both sides of the mower deck reduce
chances of “scalping* on uneven terrain. For mower decks not so
equipped.
MULCH RAKeDETHATCHER loosens soil and flips thatch and
matted leaves to lawn surface for easy pickup. Twenty spring tine
teeth, Usefuito prepare bare areas forseeding, Availabieforfront
or rear rnounting. HIGH PERFORMANCE REEL-ACTION
SPRING TINE DETHÄTCHER covers 36-mch wide path and
tosses thatch into large hopper. Mounts behind tractor
MULCHING CLOSE-OUT PLATE KIT, once inslaiied, lets you
mulch, discharge or bag clippings (bagger optional) without
changing blades. For models not equipped as 3-in-1 Convetiible
mowers. See “MOWER" in the Repair Parts section of this
manual.
RAMP TOPS AND FEET let you load and unload tractor from a
pickup truck, Use with 2 x 8 or 2 x 10 lumber,
ROLLER for smoother lawn surface. 36-inch wide, 18-inch
diamelerwater-tlghtdrumhofdsupto390lbs of weight Rounded
edges prevent harm to turf. Adjustable scraper automatically
cleans drum
SNOWBLADifor snow removal only, 14-inch high, 42-inch wide
blade clears 38-inch path when angled left or right Raises, lowers
with side lever Adjustable skids; replaceable, reversible scraper
bar, (Use with tire chains and wheel weights and/or rear drawbar
Weight,)
SNOWTHROWER has 40-inch swath Drum-type augerhandies
powdery and wet/heavy snow. Mounts easily with simple pin
arrangement. Discharge chute adjusts from tractor seat. 6-inch
diameter spout discharges snow 10 to 50 feet. Lift controlled at
tractor seat. (Use with chains and wheel weights and/or rear
drawbar weight)
SPRAYERS use 12-voit DC electric motor that connects io the
tractor battery or other 12-voil source. Includes booms for
automatic spraying and hand held wand for spot spraying. Wand
has adjustable spray pattern. For applying herbicides, Insecti­
cides, fungicides and liquid fertilizers.
SPREADER/SEEDERS make seeding, fertilizing, and weed kill­
ing easy. Broadcast spreaders are also useful for granular de­
icers and sand,
SWEEPERS let you collect grass clippings and leaves,
TILLER has 5 hp engine and 36-inch swafh io prepare seed beds,
cultivate and compost garden residue. Tiller has Us own built-in
lift and depth control system and does NOT require a sleeve hitch.
Fits any lawn, yard or garden tractor. Simply hook up to the tractor
drawbar and go! Optional accessories convert unit for
dethafching, aerating, hilling, without tools.
TIRE CHAINS are heavy duty; closely spaced extra-large cross
links give smooth ride, outstanding traction
TRACTOR CAB has heavy duty vinyl fabric over tubular steel
frame, ABS plastic top; clear piasfic windshield offers 360 degree
visibility. Hinged metal doors with catch. Keeps operator warm
and dry Remove vinyl sides and windshields for use as sun
protector in summer. Optional accessories include: tinted/
tempered solid safety glass windshield with hand operated wiper;
12-volt amber caution light for mounting on cab top.
VACS for powerful collection of heavy grass clippings and leaves.
Optional wand attachment to pick up debris in hard-to-reach
places, VAC/CHiPPER includes a chipper-shredder.
WEIGHT BRACKET for drawbar for snow removal applications-
Uses(1)55ib -.veight
WHEEL WEIGHTS for rear wheels provide needed traction for
snow removal or dozing neavy iuaseuals
