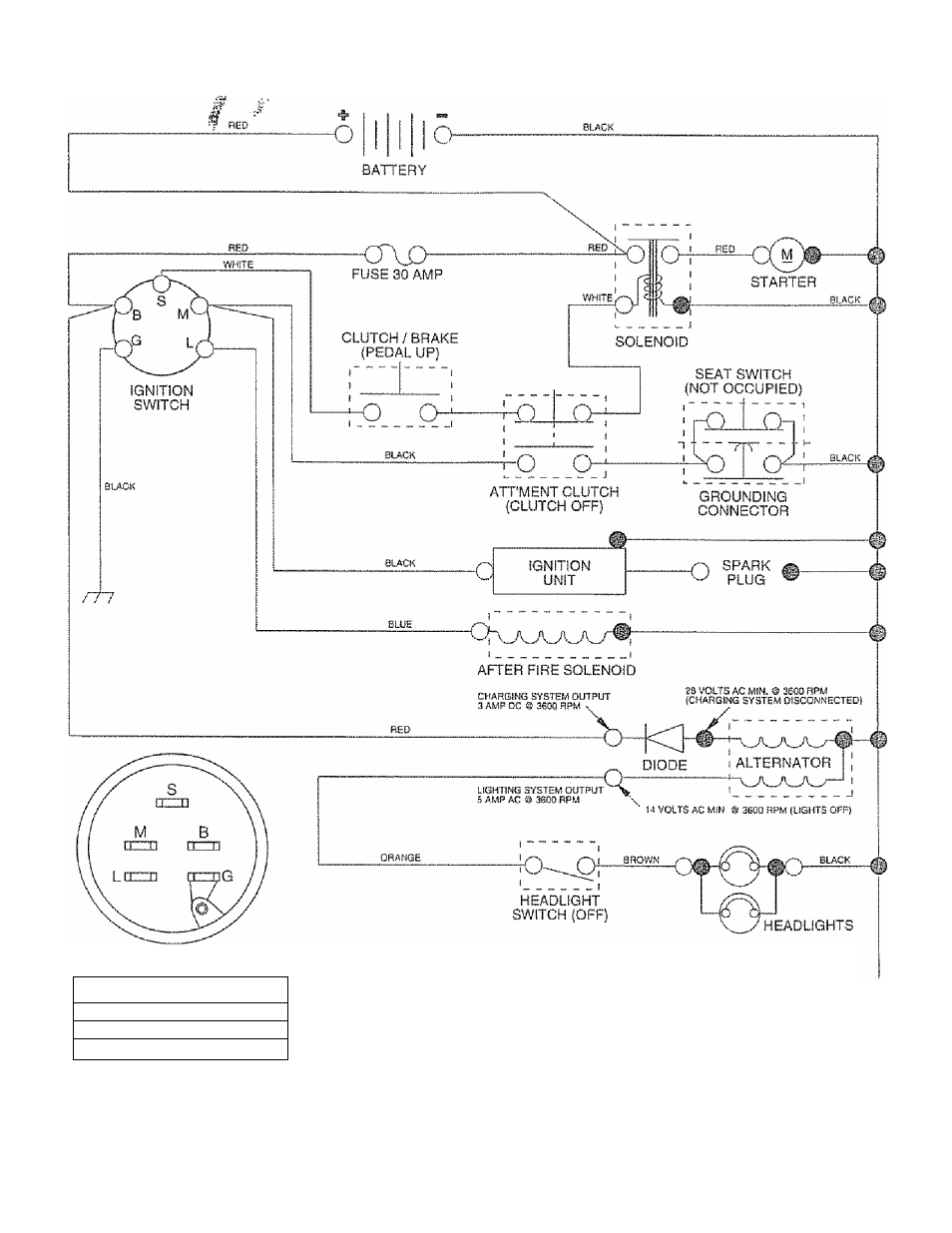

15.5 HP 42” TRACTOR - - MODEL NUMBER 917.257651

SCHEMATIC

POSITION I

CIRCUIT

OFF 1

M G

B -f L

START 1

B + S + L

NON-REMOVABLE
CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED
CUPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING

REMOVABLE
CONNECTIONS

NOTE

YOUR TRACTOR !S EQUIPPED WITH
A SPECIAL ALTERNATOR SYSTEM,
THE LIGHTS ARE NOT CONNECTED
TO THE BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE BRIGHTNESS
OF THE LIGHTS WILL CHANGE WITH
ENGINE SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS WILL
BECOME THEIR BRIGHTEST
