ASSEMBLY INSTRUCTIONS
q:;p
eTYn^
Flat
Washer
5/16" I.D.
- Hex Lock
Nut 5/16-18
Thread
Hex Bolt
5/16-18
X
8-3/8" Long
IMPORTANT: This unit is shipped WITHOUT GASO­
LINE or OIL in the engine. After assembly, see opera­
tion section of this manuai for proper fuel and engine
oil recommendations.
NOTE: To determine right and ieft hand sides of your
chipper-shredder, stand behind the unit with the
engine the farthest away from you. See figure
6.
Your chipper-shredder has been completely assem­
bled at the factory, except for the hopper assembly
(hopper hood and upper leaf ramp section have been
sub-assembled), upper guide assembly, chute
deflector and the catcher bag. The hardware pack
safety glasses and a bottle of oil are also included in
the carton.

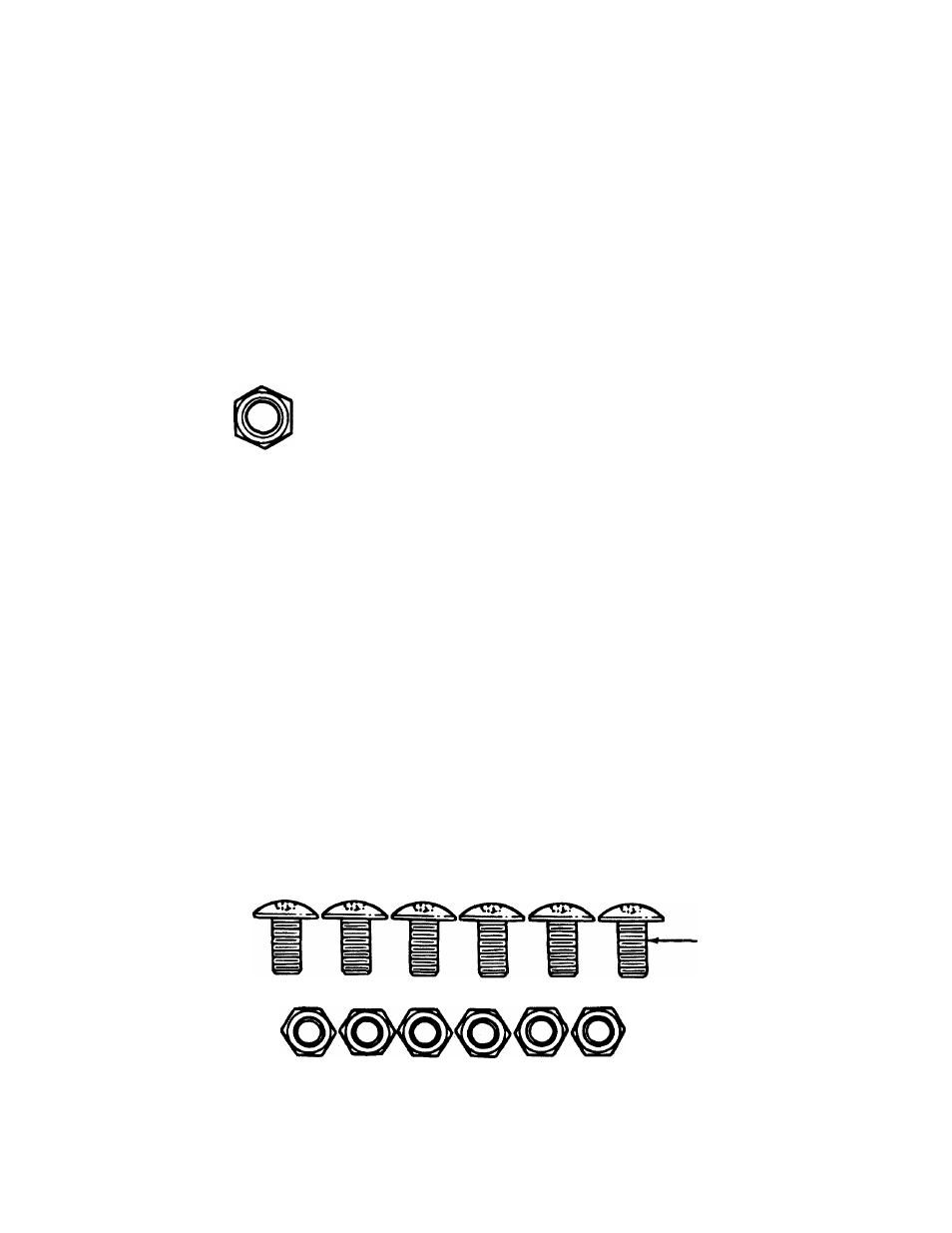

The hardware pack contains the parts shown in figure
1 (shown full size).
TO REMOVE CHIPPER-SHREDDER FROM CARTON
Cut the corners of the carton. Remove all packing
inserts. Roll chipper-shredder out of the carton. Make
certain all parts and literature have been removed
before the carton is discarded.
TOOLS REQUIRED FOR ASSEMBLY
(1) Phillips Screwdriver
(2) 1/2“ or Adjustable Wrenches
(2) 7/16“ or Adjustable Wrenches
(1) Funnel
Truss Machine Screws
1/4-20
X
1/2" Long
■ Hex Lock Nuts
1/4-20 Thread
FIGURE 1.
