SEARS CRAFTSMAN 5 H.P. ENGINE MODEL NO. 143.955003
Repair Parts
•N

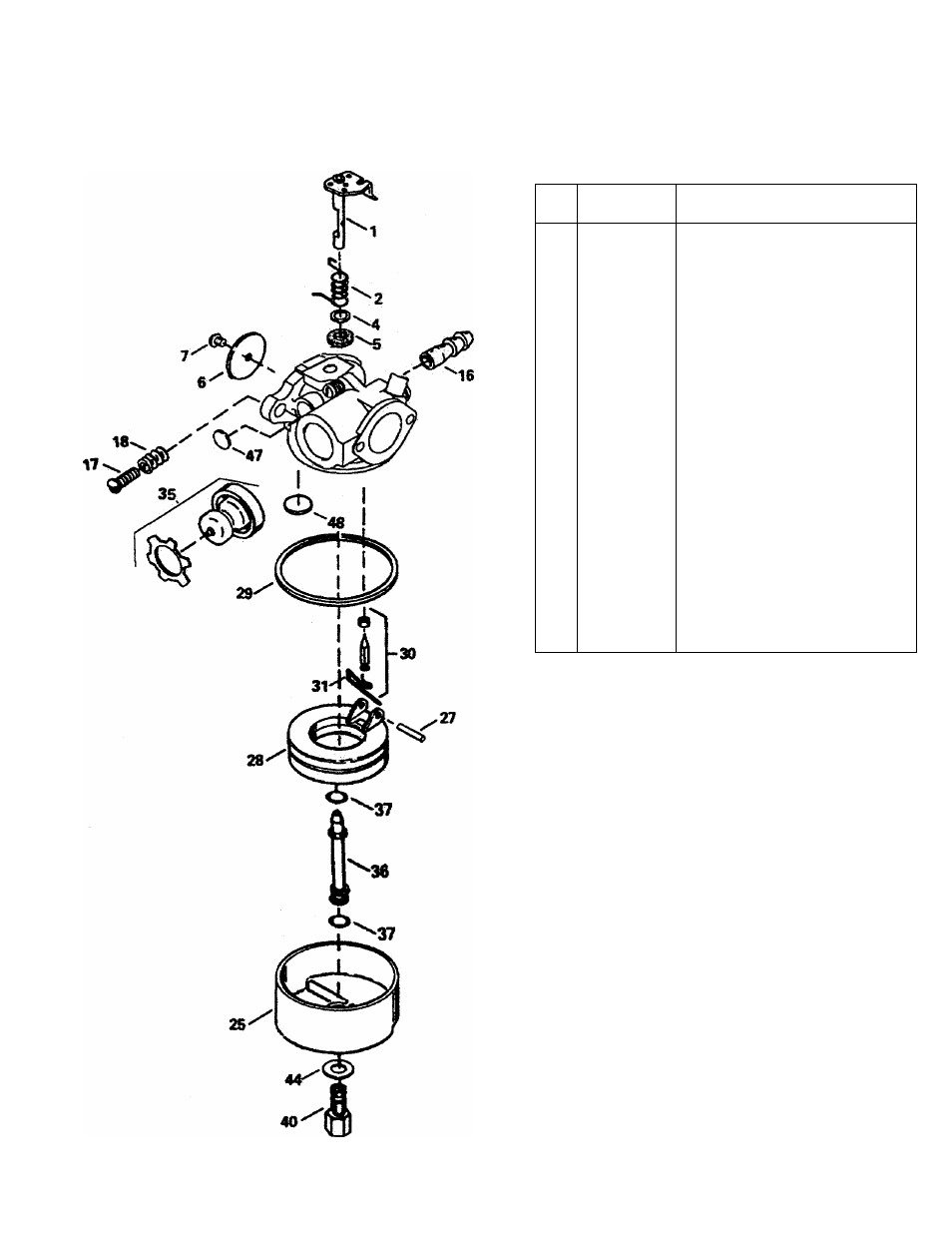

PARTS LIST FOR CARBURETOR
KEY
NO.
PART
NO.
DESCRIPTION
—
640004
Carburetor (Incl. 184 of Engine
Parts List)
1
631615
Throttle Shaft & Lever Assembly
2
631767
Throttle Return Spring
4
631184
Dust Seal Washer
5
631183
Dust Seal (Throttle)
6
640009
Throttle Shutter
7
650506
Shutter Screw
16
632164
Fuel Fitting
17
650417
Throttle Crack Screw/ldle Speed
Screw
18
630766
Tension Spring
25
631867
Float Bowl
27
631024
Float Shaft
28
632019
Float
29
631028
Float Bowl “0” Ring
30
631021
Inlet Needle, Seat, and Clip
(Incl. 31)
31
631022
Spring Clip
35
36045
Primer Bulb/Retainer Ring
36
640007
Main Nozzle Tube
37
632547
“O” Ring, Main Nozzle Tube
40
640008
High Speed Bowl Nut
44
27110
Bowl Nut Washer
47
630748
Welch Plug, Idle Mixture Well
48
631027
Welch Plug, Atmospheric Vent
