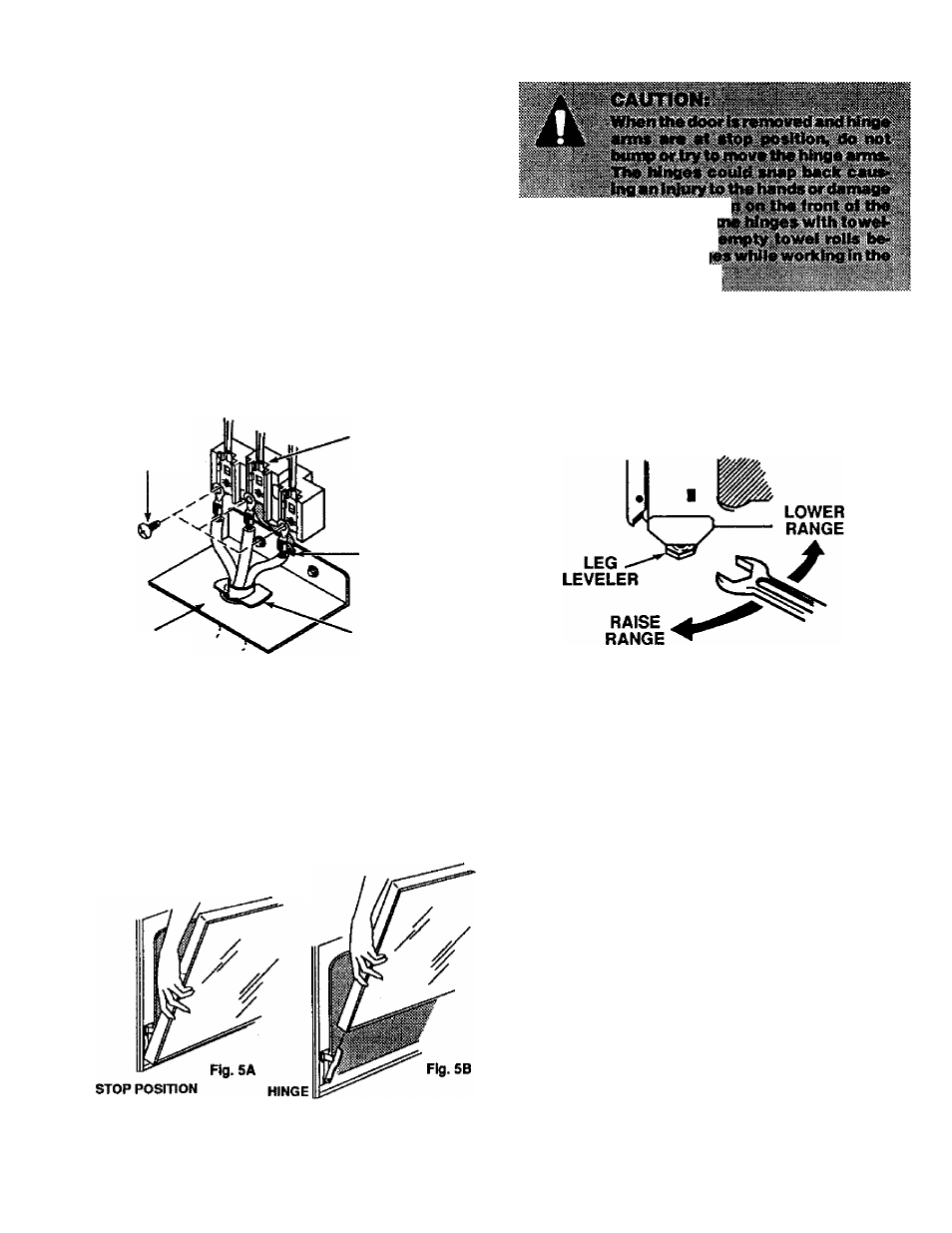

THREE-WIRE CORD
CONNECTION KIT
Remove the screws on the Junction block studs.
Install the three-wire cord and the strain relief In the hole
In the connection plate.
Connect the red and black leads to the outer terminals
and the white lead to the center terminal.
Push the cord upward (to relieve strain), while tightening
the strain relief clamp.
If local codes require an ungrounded neutral:
* Remove ground strap.
> Fasten the white wire to the center terminal.
• Use grcxinding terminal or lead to ground unit In
accordance with local codes.
SCREW
GROUNDED
NEUTRAL
TERMINAL
GROUND STRAP
GROUND SCREW
CONNECTION
PLATE
OVEN DOOR REMOVAL
Before installing the range, you may remove the oven
door to lessen the weight of the unit. DO NOT lift unit by
door handle.
To remove oven doon
1. Open the door to the stop position. See Fig. 5A.
2. Grasp the door at each side and lift up and off the
hinges. See Fig. 5B.
SRI 0095
Pub. No. 31-10059
INT308-3
Dveik Covert
MndlheliTrit
LEVEL THE RANGE
Using the wrench, back out the four leg levelers at least
two turns. See your Installation guide for more leveling
Information before positioning range.
The range must be level tor proper cooking and baking.
Install
the oven racks (see Owner's Manual for
instructions).
Use a 13/8" open end wrench or an adjustable wrench to
equally back out the four leg levelers two or three turns
each.
H«C)fde
