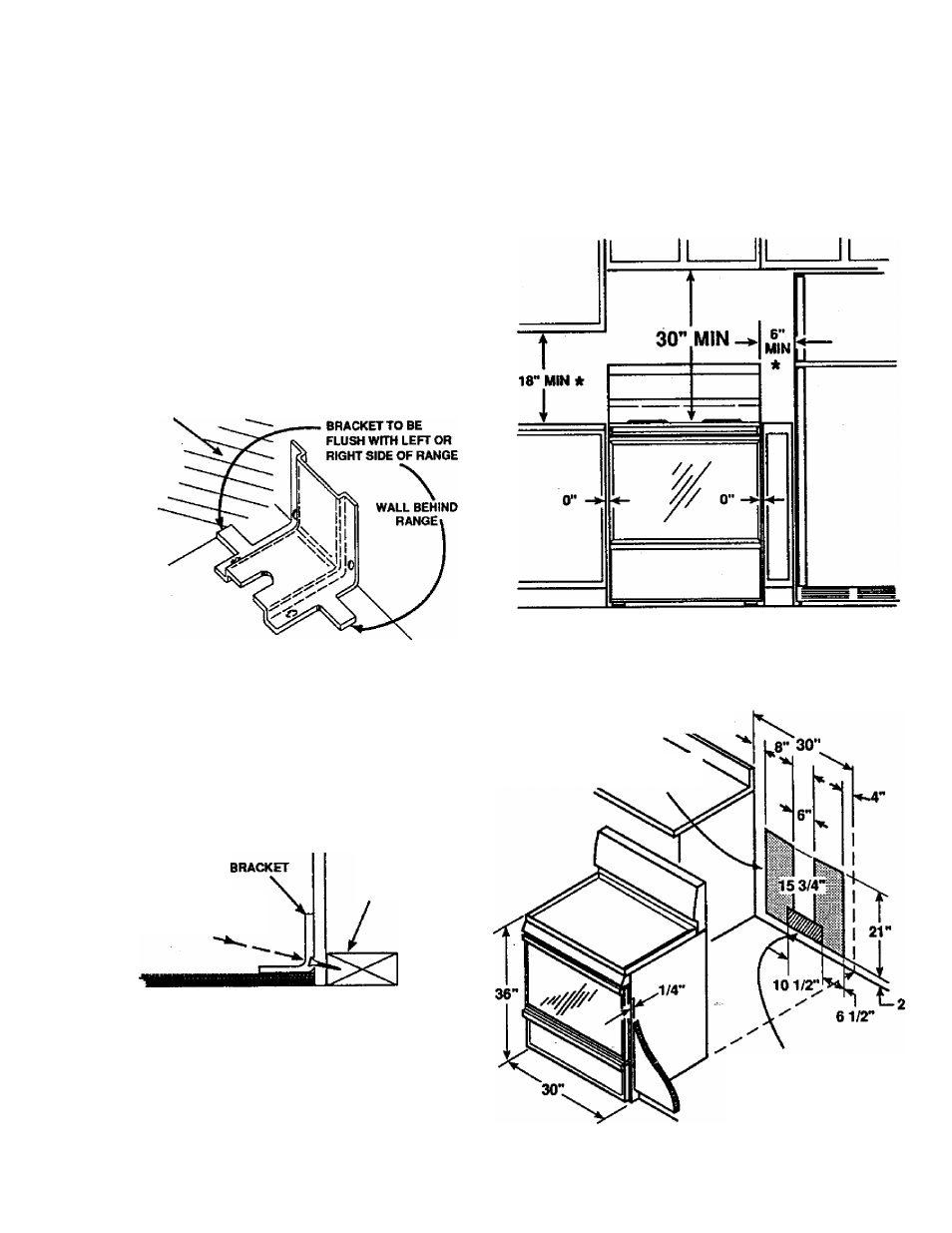

2. If the bracket side of the range Is adjacent to a
cabinet, place the bracket against back wall and
cabinet as shown In Figure 1.
If there Is no adjacent cabinet, determine where the
location of the range side (painted outside panel) win
be. Place the bracket with Its outside edge at this
location and against back virall. See Figure 1.
3. Determ ine whether you will anchor the bracket to the
floor or wall. Fasten the bracket securely with the
screws provided. Screws are self-drilling in wood,
plywood, particle and chip board, and most metal
framing. If attaching to masonry you can buy suitable
screws and anchors at hardware stores. Use a
masonry drill to drill the required holes.
(Stability device instructions continued...}
ADJACENT CABINET OR FINAL
LOCATION OF RANGE SIDE
PANEL
OUTSIDE EDGE OF
Flg.1
4. Slide the range Into place. Be sure rear leg leveler
fully engages slot in bracket. If range cannot be
moved back far enough for rear leg leveler to enter
bracket, move bracket forward as required and attach
to floor In new location.
5. If appliance Is removed for cleaning or any other
reason, check to make sure bracket is re-engaged. A
risk of the range tipping over may result from
abnormal usage, Including excess loading of oven
door, if the bracket is not re-engaged properly.
WALL
PLATE
See Figures 2 and 3 for all rough-in and spacing
dimensions.
The range may be placed with 0” clearance (flush) at the
back wall and side walls of the range If the front edges
of the range side panels stick out beyond the cabinet
fronts at least 1/4". See Fig. 3.
MINIMUM CLEARANCES
MINIMUM DIMENSIONS BETWEEN COOKTOP, WALLS, AND
ABOVE COOKTOP
* RECOMMENDED SPACING TO HEAT SENSITIVE SURFACES.
Fig. 2
4"
ACCEPTABLE ELECTRICAL
OUTLET AREA
SCREW MUST ENTER
WOOD OR METAL
ATTACHMENT TO WALL
TOOL LIST
Phillips head screwdriver
1 3/B" open end or adjustable wrench
1/4" Hex Head screwdriver
PREFERRED ELECTRICAL
OUTLET AREA
ROUGHED-IN DIMENSIONS
Flg.3
