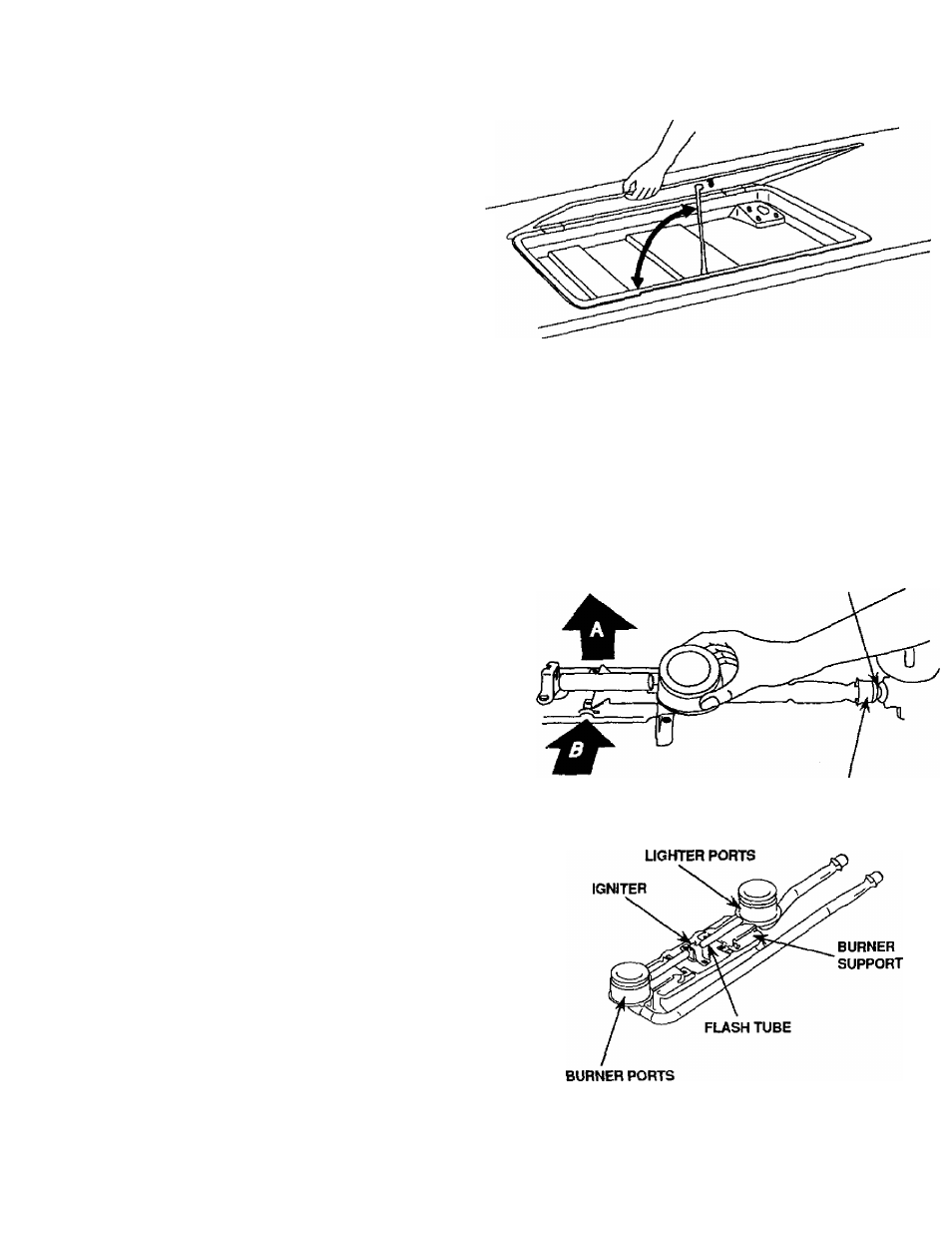

LIFT-UP COOKTOP
The cooktop can be raised or removed so the area
underneath (burner box bottom) can be cleaned.
To raise cooktop:
1. Remove the burner grates, bowls and knobs.
2. Grasp the cooktop at the front and lift up.
3. Raise the support rod into place to hold the cooktop
wh lie clea nl n g. Secu re the rod Into t he space r bracket
on the cooktop.
Porcelain enamel can chip If dropped. Handle porcelain
enameled cooktops carefully.
To lower the cooktop:
1. Carefully replace the support rod and lower the
cooktop. Press into place. Make sure the strikes fit
in the catches to fasten the cooktop.
2. Replace the burner grates, bowls and knobs.
REMOVABLE COOKTOP
BURNERS
The cooktop burners on your range may be removed for
cleaning. Be sure all cooktop knobs are turned to
OFF and burners are cool, then remove or raise
the cooktop.
If shipping screws were not removed from the burner
when the range was installed, do so now (see your
Installation section for Instructions).
To remove burners:
1. Grasp the burner head and tilt It to the right to release
the two tabs from the burner support (A in Fig. A).
2. Lift the end of the burner assembly, then pull away
from the front of the range to free the air shutter from
the gas valve orifice (Fig. B). Check ail lighter and
burner ports. If they are clogged, use a wire or needle
to clear them.
See the Cleaning Chart.
Be careful not to disturb the air shutter setting
while cleaning. If you need to readjust the air shutter,
see the Installation Section.
To replace burners:
1. Slip the air shutter over the gas valve orifice (Fig. A).
2. Lower the burner assembly and hook the tab In the
slots in the burner support (Fig. A).
3. Be sure both tabs are In their slots, that the burner
sits level and straight and that the flash tube forms a
straight line from the igniter to the burner (Fig. B).
GAS VALVE
ORIFICE
AIR SHUTTER
11 NGMNT05-1
