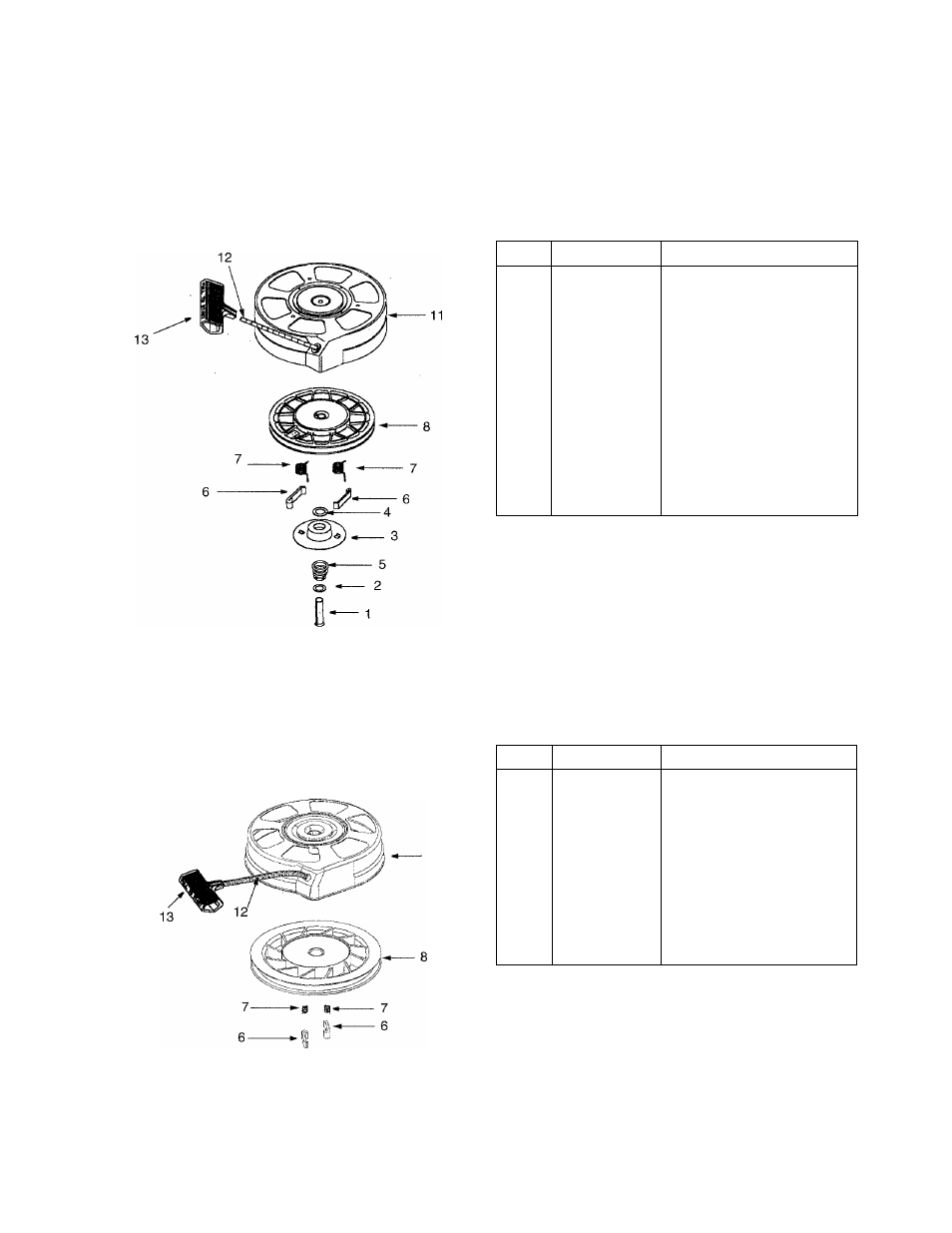

CRAFTSMAN ENGINE NO. 143.994002 FOR
CRAFTSMAN 4.0 H.P. LAWN MOWER MODEL 247.388240
Recoil Starter 590694
Key No. Part No. Description
- 590694 Recoil Starter
1 590599A Spring Pin
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Ass’y.
11 590695 Starter Housing Ass’y-
(40 degree grommet)
12 590535 Starter Rope
(98”
X 9/64” dia.)
13 590701 Starter Handle
Recoil Starter 590737
14
11
Key No. Part No. Description
- 590737 Rewind Starter
3 590740 Retainer
6 590616 Starter Dog
7 590617 Dog Spring
8 590618A Pulley & Rewind Spring Ass’y.
11 590687A Starter Housing Ass’y
(40 Degree Grommet)
12 590535 Starter Rope
( 98” X 9/64” )
13 590701 Starter Handle
14 590760 Spring Clip
