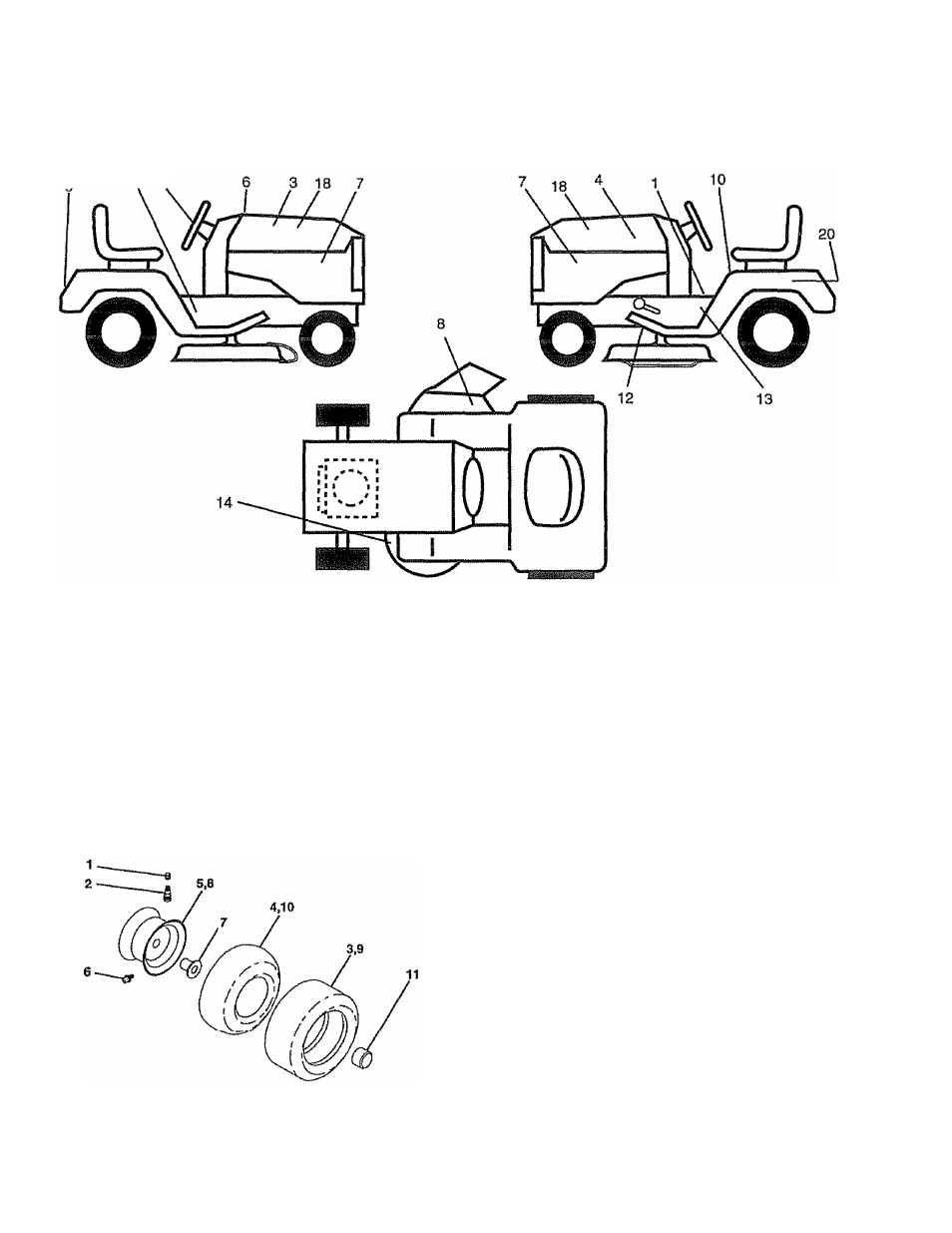

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.258524
13 2
k’PV
I
PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156368 Decal, Oper. Instr. 12 146046 Decal. V'Belt Drive Schematic
2 150333 Decal, Cap Cnsmr Help Line 13 147139 Decal, Chassis, 6 Speed/42”
3 151299 Decal, Hood, R.H. 14 136832 Decal, V-Belt Schematic
4 151300 Decal, Hood, L.H, 18 151708 Decal, Ins. Hood
6 133644 Decal, Customer Maintenance 20 149516 Decal Battery Dngr/Psn Eng
7 150927 Decal, Side Panel -- 138311 Decal, Lift Handle
8 156787 Decal, Deck Mower EZ3 -- 154515 Pad Footrest LH STLT
9 146709 Decal, Fender, Craftsman -- 154516 Pad Footrest RH STLT
10 156439 Decal, Fender Danger -- 160917
-- 160918 Owner’s Manual, English
Owner's Manual, Spanish
WHEELS & TIRES
KEY
NO.
PART
NO. DESCRIPTION
1 59192 Valve Cap, Tire
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front Tire
(Not Provided, Service Item Only)
Rim. Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Service item Only)
Cap, Axle
Sealant. Tire 10 oz.
All component dimensions given in U.S, inches
1 inch = 25.4 mm
