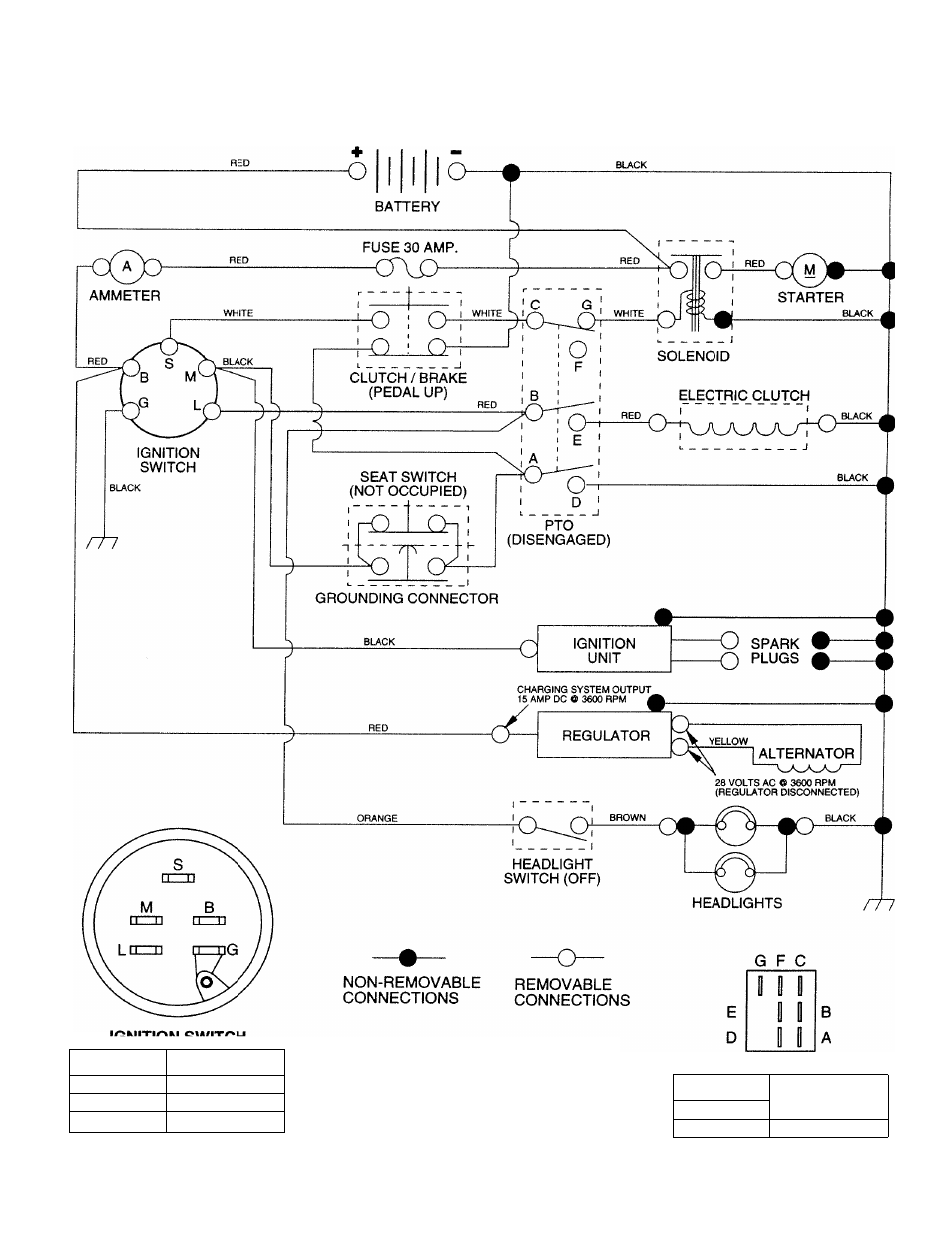

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.252710

POSITION

CIRCUIT

OFF

M + G

ON

B + L

START

B + S + L

WIRING INSULATED CLIPS

NOTE:

IF WIRING INSULATED

CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING

PTO SWITCH

POSITION

CIRCUIT

C + G

OFF

ON

C + F, B + E, A + D

31
