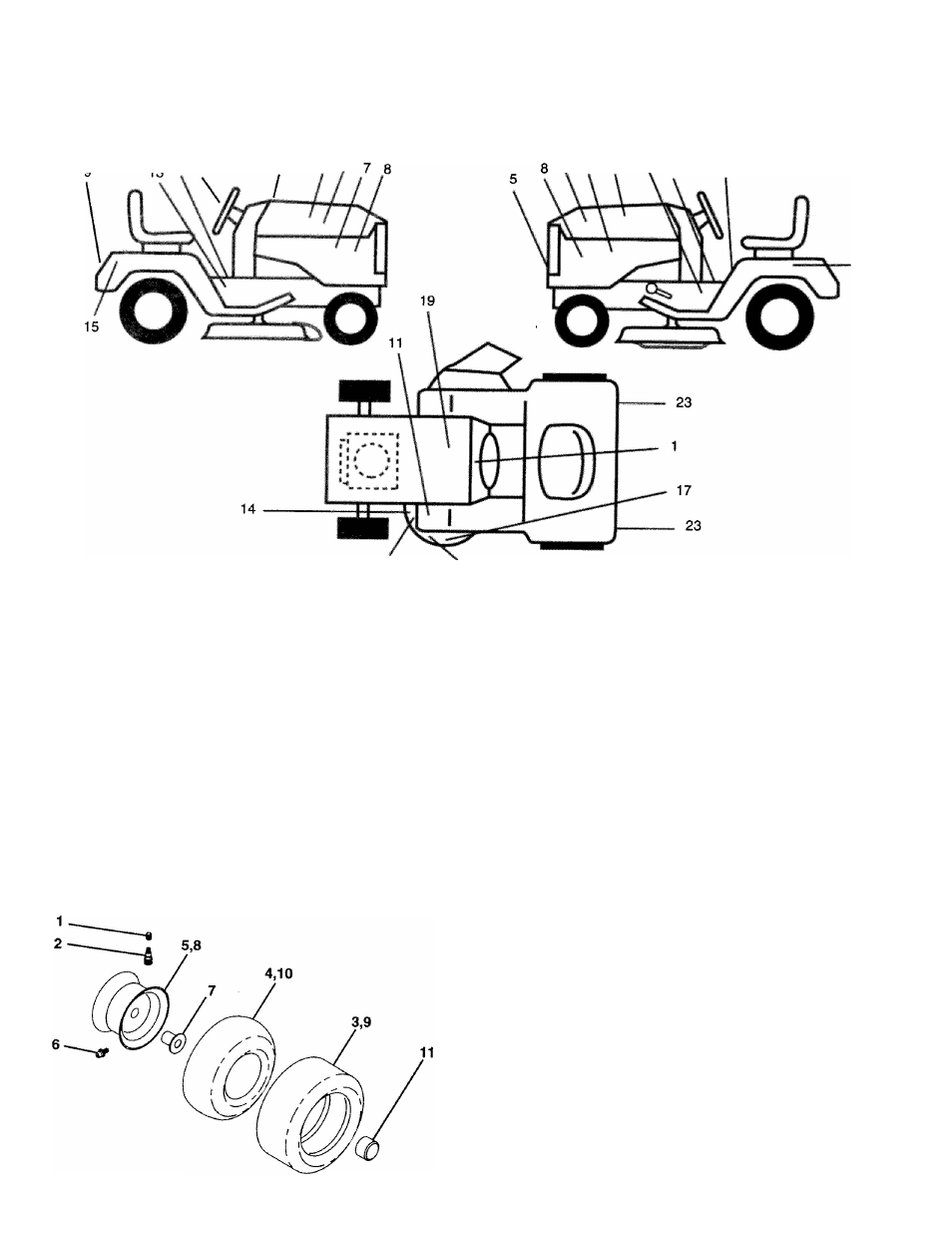

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.252710
22 18
6 3 16
16 7 4 13 21 10
15
KEY PART
24 25
KEY
NO. NO. DESCRIPTION NO.
1 138955 Decal, Operating Instruction 18
3 146705 Decal, Hood, Craftsman, RH 19
4 146706 Decal, Hood, Craftsman, LH 21
5 146708 Decal, Grille 22
6 133644 Decal, Maintenance 23
7 142243 Decal, Side Panel 24
8 138048 Decal, Side Panel 25
9 146709 Decal, Fender, Craftsman
10 137537 Decal, Caution ..
11 4900J Decal, Clutch/Brake _ _
13 147138 Decal, Chassis 42"
14 146046 Decal, V-Belt Schematic
« _
15 146712 Decal, Fender Hydro _ _
16 147137 Decal Ins. Hood _ _
17 133179 Decal, Mower QC System
- -
NO. DESCRIPTION
146710 Decal, Insert Strg
138047 Decal, Battery
140837 Decal Brake Parking Saddle
142336 Decal, Sdl Cold Start Hydro Eng.
106202X Reflector, Taillight
136832 Decal V-Belt SHC
147142 Decal Deck 3 in 1
138311 Decal, Handle Lift Height Adj.
142341 Decal, Drawbar Cntrl Mvt. Hyd Lt
137318 Decal, Refi HL YT/GT 1 -pc Sears
137319 Decal, Refi HL YT/GT 1 -pc Sears
145245 Pad Ftrest
145247 Fastener Pop-In Footrest
146823 Manual, Owner's (Eng)
146824 Manual, Owners (Span)
WHEELS & TIRES
KEY PART
NO. NO.
1 59192
2 65139
3 106222X
4 59904
5 106732X427
6 278H
7
9040H
8 106108X427
9 122082X
10 7152J
11
104757X
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Tire, Front
Tube, Front (Service Item Only)
Rim Assembly, Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel Only)
Rim Assembly, Rear
Tire, Rear
Tube, Rear (Service Item Only)
Cap, Axle
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
