installation Step 3

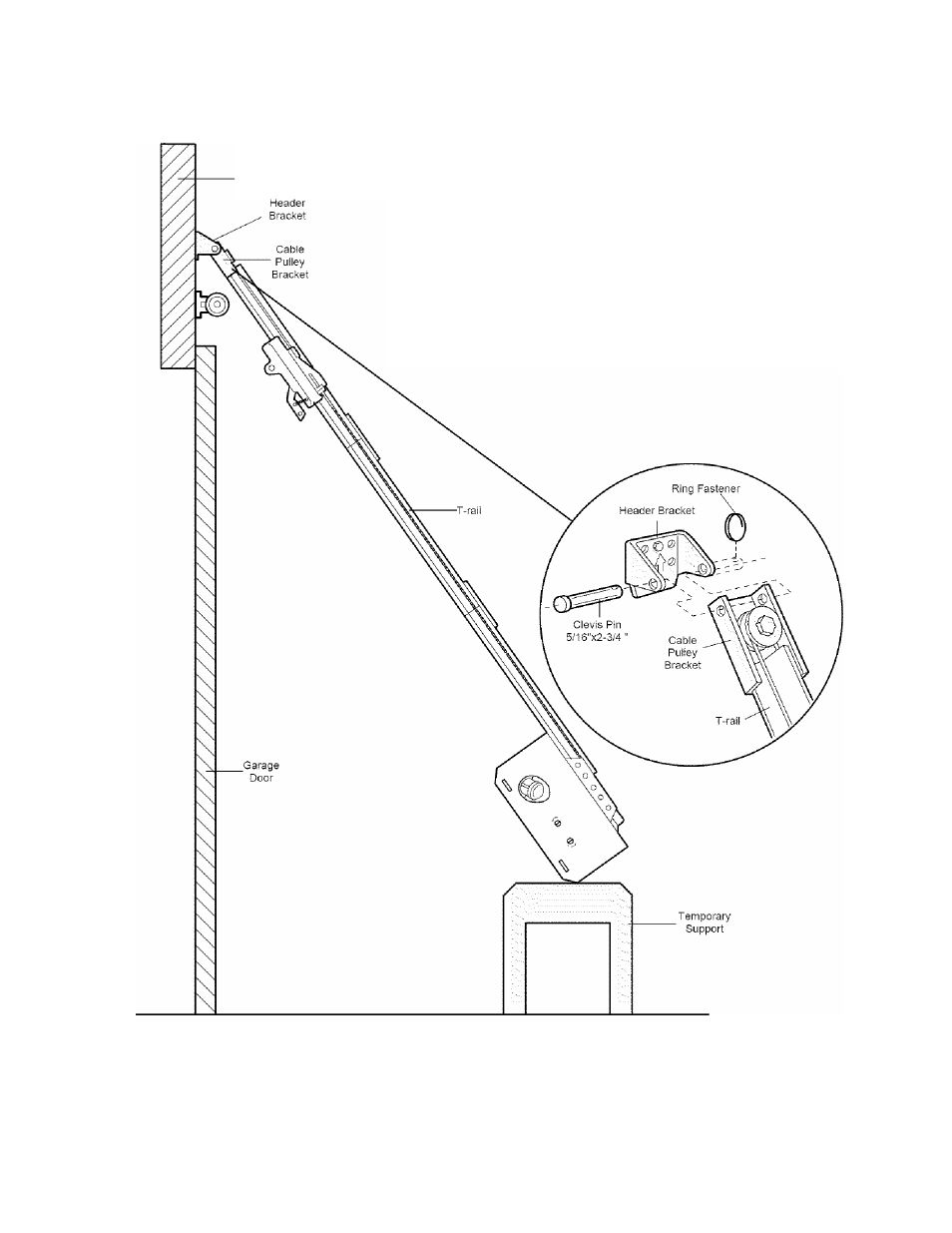

Attach the T-rall to the Header Bracket
Header W all
• Position the opener on the garage floor below the
header bracket. Use packing materia! as a
protective base.
If the door spring is in the way you'ii need heip.
Have someone hold the opener securely on a
temporary support to allow the T-rail to clear the
spring.
• Position the cable pulley bracket against the header
bracket.
Align the bracket holes and join with a clevis pin as
shown.
• Insert a ring fastener to secure.
Hardware Shown Actual Size
O
Cievis Pin
5/16"x2-3/4"
O
Ring Fastener
