Installation Step 6
Install the Deluxe Lighted
Console Wall Control
• strip 1/4" of insulation from one end of the bell
wire; connect the wire to the two screw terminals
on the back of the Wall Control: white to 2, and
white/red to 1.
• Locate the Wall Control within sight of the door
at a minimum height of 5 feet where small
children cannot reach, and away from all
moving parts of the door and door hardware.
Fasten the Wall Control securely with 6ABx1"
screws. If installing into drywall, drill 5/32" holes
and use the anchors provided.
• Run the bell wire up the wall and across the ceiling
to the opener. Use insulated staples to secure the
wire in several places. Be careful not to pierce the
wire with a staple, thereby resulting in a short.
• Receiver terminal screws and the antenna are
located on the right side panel of the opener.
Position the antenna wire as shown.
• Then connect the bell wire to the opener terminal
screws: white to 2; white/red to 1,
• Remember to affix the User Safety Instruction
label to the wai! near the Wall Control, and the
Maintenance Instruction label in a prominent
location on the inside of the garage door.
If the label adhesive will not adhere to your garage
wall surface (or becomes loose with time) use tacks
to secure the label alongside the Wall Control.
Children operating or playing with a garage
door opener can injure themselves or others.
The garage door could close and cause
serious Injury or death.
Install the Wall Control (or any additional push
buttons) out of the reach of children and away
from all moving parts of the door and door
hardware, but where the garage door Is visible.
Do not allow children to operate the push
button(s) or the remote control(s).
A moving garage door could Injure someone
under It. Activate the opener only when the
door is properly adjusted, you can see it
clearly, and there are no obstructions to door
travel.
Do NOT connect the power and operate the
opener at this time. The trolley will travel to the
full open position but will not return to the close
position until the sensor beam is connected and
properly aligned.
See Safety Reversing Sensor Instructions
beginning on page 21.
Page 32 explains how to operate the opener using
the lighted push bar and the Lock & Light features
available on the Deluxe Lighted Console Wall
Control.
Hardware Shown Actual Size
j>
Screw
6ABx1" Dry Wail Anchors
Insulated
Staples

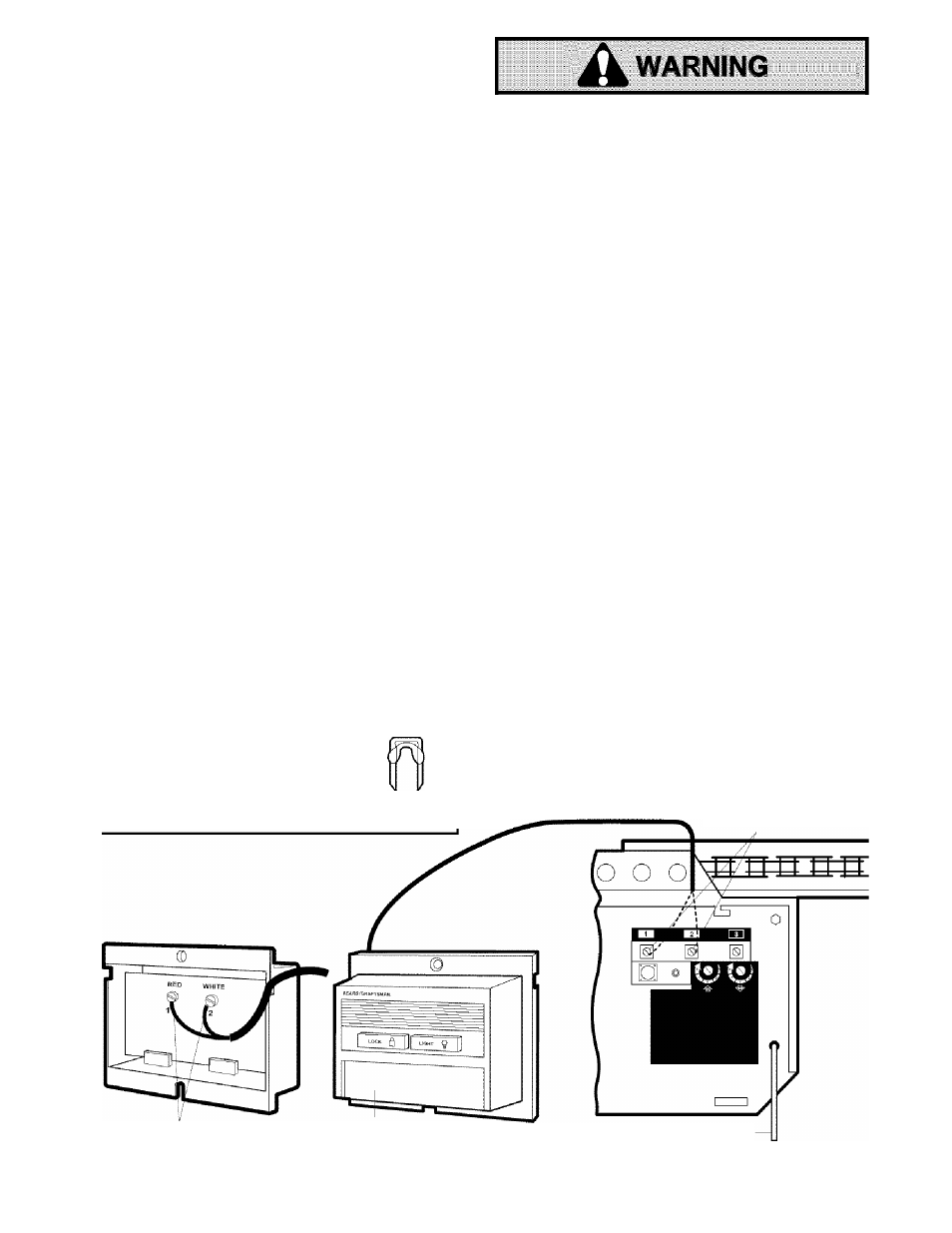

Outdoor Key Switch Accessory Connections
To opener terminal screws: white to 2; white/red to 1
opener
Terminal Screws
Wall Control
Terminal Screws
Lighted
Push Bar
Antenna-
18
