ASSEMBLY INSTRUCTIONS
ccp
Flat—.
Washer
5/16" I.D.
Hex Lock
Nut 5/16-18
Thread
Hex Bolt
■5/16-18 X 8-3/8" Long
Cupped Washers
5/16" I.D.
IMPORTANT: This unit is shipped WITHOUT GASO­
LINE or OIL. After assembly, see operation section of
this manual for proper fuel and engine oil recom­
mendations.
NOTE: To determine right and left hand sides of your
chipper-shredder, stand behind and face the hopper
(engine is at the front of the unit).
Your chipper-shredder has been completely assembled
at the factory, except for the hopper assembly (hopper
hood and upper guide extension have been sub­
assembled), upper guide assembly, chute deflector and
the catcher bag. The hardware pack and safety glasses
are also included in the carton.

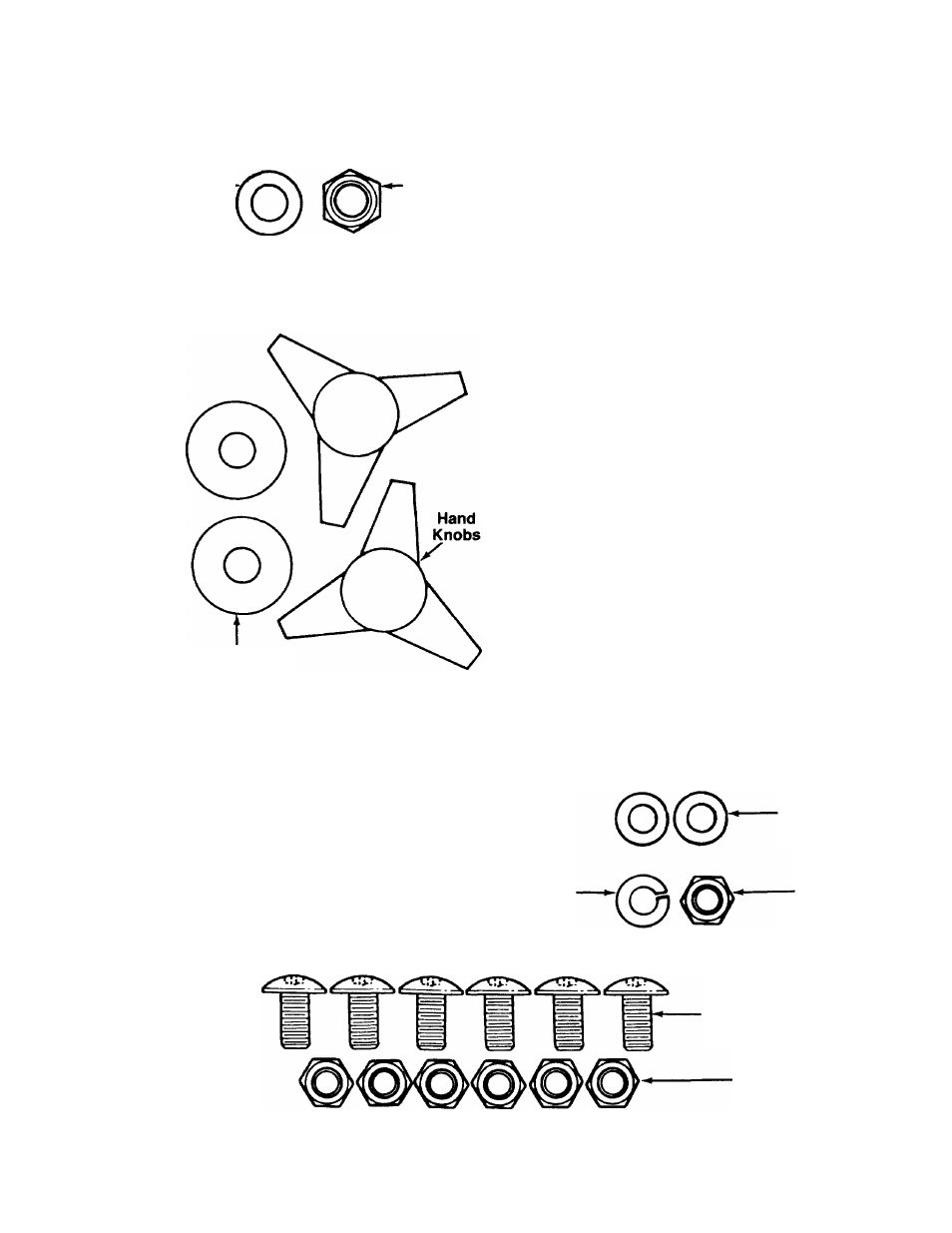

The hardware pack contains the parts shown in figure
1 (shown full size).
TO REMOVE CHIPPER-SHREDDER FROM CARTON
Cut the corners of the carton. Remove all packing in­
serts. Roll chipper-shredder out of the carton. Make cer­
tain all parts and literature have been removed before
the carton is discarded.
TOOLS REQUIRED FOR ASSEMBLY
(1) Phillips Screwdriver
(2) V2" or Adjustable Wrenches
(2) 7/16" or Adjustable Wrenches
Hex Bolt V 4-20
X 4" Long
Spacers
<
Lock Washer
V*" I.D.
Flat Washers
W I.D.
Hex Nut
Vi-20 Thread
Truss Machine Screws
Vi-20 X V 2 " Long
Hex Lock Nuts
Vi-20 Thread
FIGURE 1.
