TRACTOR - - MODEL NUMBER 917.252540

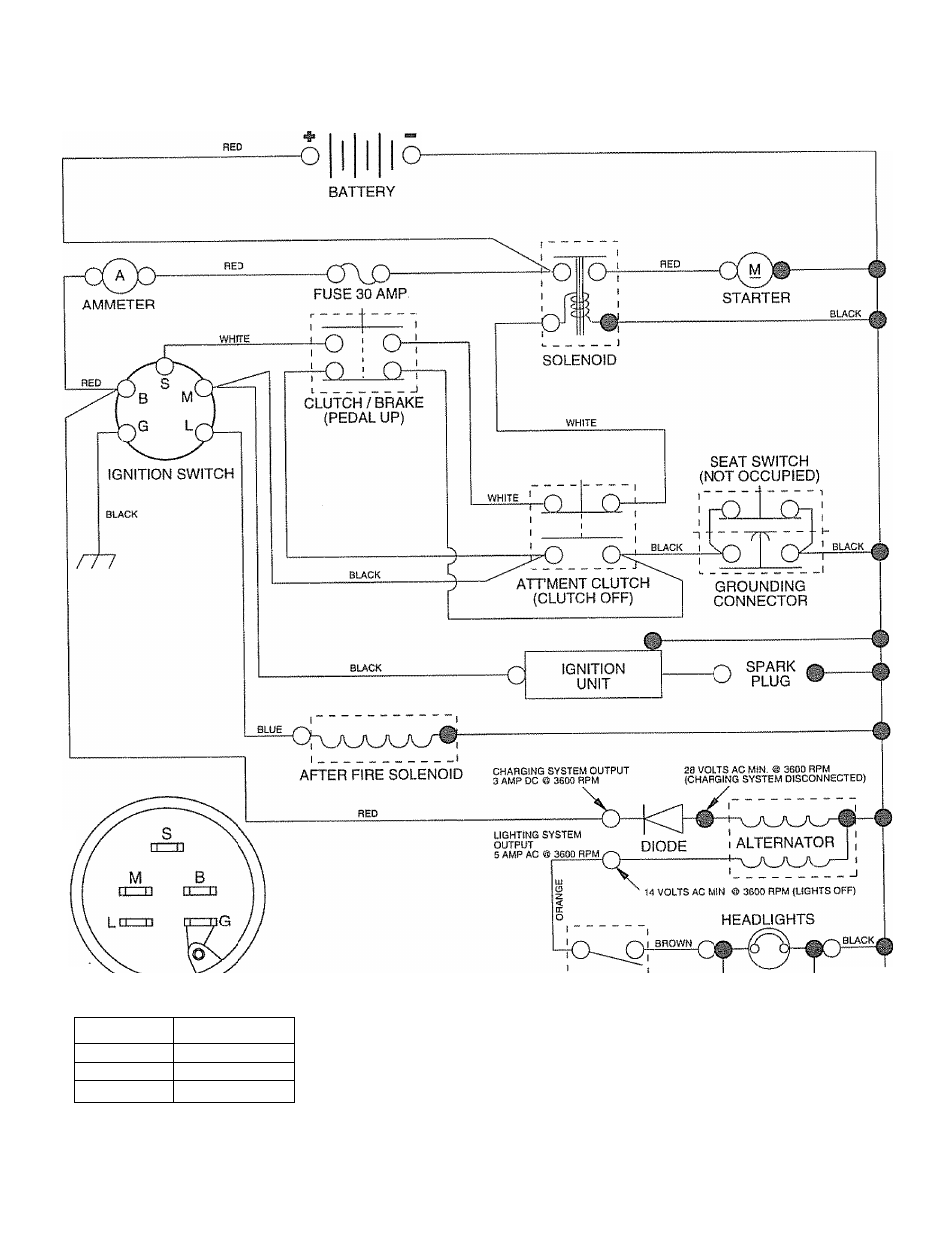

SCHEMATIC

BLACK

IGNITION SWITCH

POSITION

CIRCUIT

OFF

M + G

B + L

START

B + S + L

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM,

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM, AS THE ENGINE IS

SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST

HEADLIGHT

SWITCH

(OFF)

L-0J

NON-REMOVABLE
CONNECTIONS

REMOVABLE
CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
